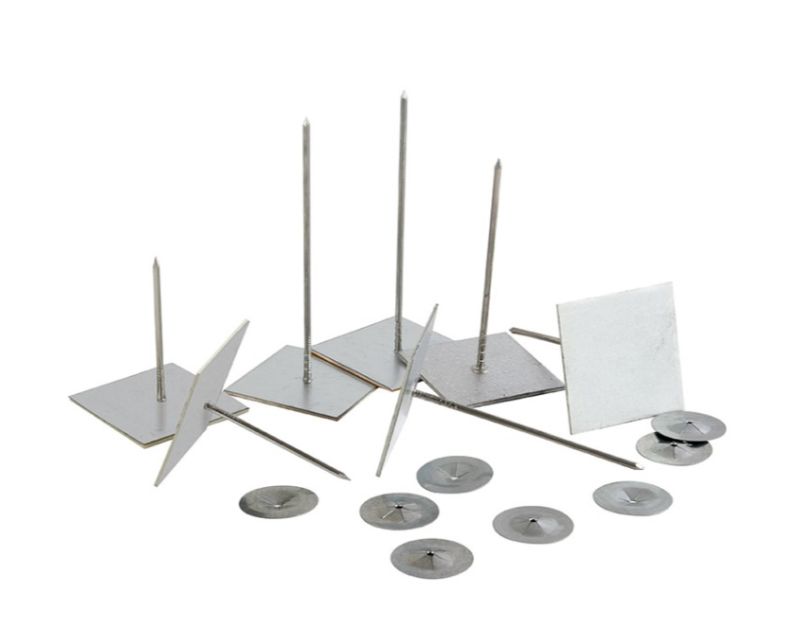

Sitefix Ultra Insulation Hangers – 62mm Self-Adhesive Pins with Washers (Pack of 500)

The Sitefix Ultra Insulation Hanger provides a fast, reliable mechanical fixing system for securing insulation materials to metal ductwork, pipework and flat surfaces. Each 62mm self-adhesive pin comes complete with a matching washer, creating an instant bond without the need for drilling or additional adhesives.

Key Features

• Strong self-adhesive base – high-tack adhesive bonds instantly to clean, dry metal surfaces
• 62mm pin length – suits insulation thicknesses up to 50mm
• Galvanised steel pin – corrosion resistant for internal and external use
• Matching plastic washer – locks insulation firmly in place and distributes load evenly
• Pack of 500 – ideal for large HVAC and plumbing installations

Compatible Insulation Materials

Works with a wide range of insulation types, including:

• Glass fibre and mineral wool
• Polystyrene and expanded polystyrene (EPS)
• Polyurethane (PU) foam
• Polyisocyanurate (PIR)
• Phenolic foam
• Cork and composite boards

Installation Guide

1. Ensure the metal surface is clean, dry and free from oil or dust.
2. Peel off the protective backing from the self-adhesive base.
3. Press the pin firmly onto the surface for 10 seconds.
4. Push the insulation material onto the pin.
5. Slide the washer down the pin and push until it locks flush against the insulation.

Applications

Perfect for commercial and industrial projects throughout the UK, including:

• HVAC duct insulation
• Hot and cold water pipe lagging
• Refrigeration and chilled systems
• Ventilation and air-handling units
• Boiler and plant room installations

Product Code: 10540434
