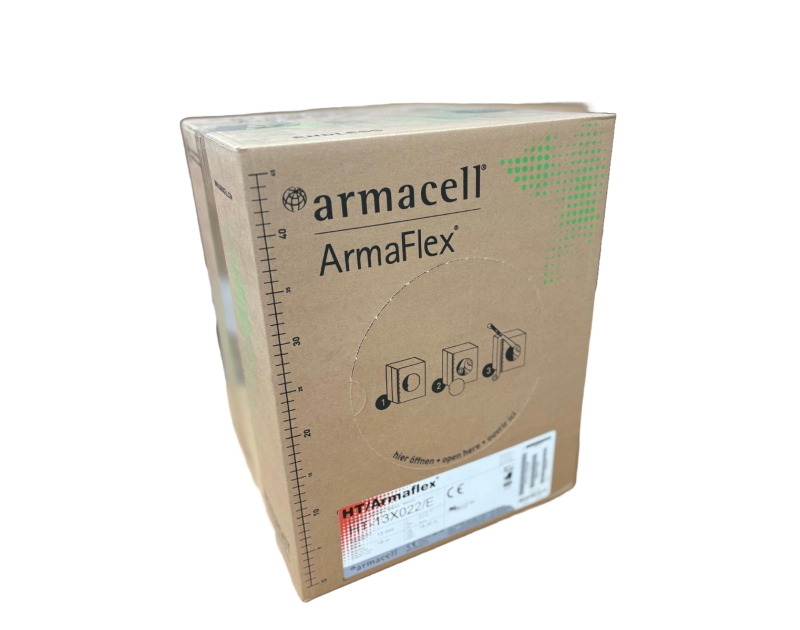

HT Armaflex Coils

HT Armaflex Coils - High-Performance Pipe Insulation for High-Temperature Applications

Discover the superior performance of HT Armaflex Coils, a premium flexible elastomeric insulation designed specifically for high-temperature piping systems. Engineered by Armacell, these coils are perfect for industrial, commercial, and outdoor applications, offering exceptional thermal efficiency, durability, and ease of installation. Available exclusively at PipeLagging.com for UK customers, HT Armaflex Coils are the ideal solution for insulating pipes in demanding environments.

Key Features

• High-Temperature Resistance: Maintains flexibility and performance at temperatures up to 150°C, making it suitable for steam lines, hot gas lines, solar collectors, and dual-temperature systems.
• Low Thermal Conductivity: With a thermal conductivity of ≤ 0.042 W/(m·K) at 0°C for tubes, HT Armaflex Coils minimise heat loss, ensuring energy efficiency and reduced operational costs.
• Superior UV Resistance: Tested for excellent durability under UV exposure, these coils require no additional jacketing for outdoor use, resisting degradation from sunlight and incidental oil contact.
• Closed-Cell Structure: Prevents water vapour diffusion with a resistance factor of >4,000, protecting pipes from corrosion and extending the lifespan of your installations.
• Fire Safety: Classified as D(L)-s3,d0 for tubes under EN 13501-1, with self-extinguishing properties that do not drip or spread flames, ensuring compliance with safety standards.
• Easy Installation: Dust- and fibre-free, these coils are simple to cut and install without special tools. Use ArmaFlex HT625 adhesive for seamless, reliable application.
• Eco-Friendly: Meets sustainable construction standards for LEED v4.1, BREEAM International, WELL v2, and DGNB, with low volatile organic compound (VOC) content and no SCCP or MCCP.

Technical Specifications

Available Sizes

HT Armaflex Coils are designed for pipes with outer diameters of 15 mm, 18 mm, and 22 mm, available in the following configurations:

• 13 mm Thickness:
  • 15 mm pipe Ø: 26 m length (Item: HT-130015/E)
  • 18 mm pipe Ø: 22 m length (Item: HT-130018/E)
  • 22 mm pipe Ø: 18 m length (Item: HT-130022/E)
• 19 mm Thickness:
  • 15 mm pipe Ø: 16 m length (Item: HT-190015/E)
  • 18 mm pipe Ø: 14 m length (Item: HT-190018/E)
  • 22 mm pipe Ø: 12 m length (Item: HT-190022/E)

Tolerances: Thickness ±1.5 mm (13 mm), ±2.5 mm (19 mm); Length ±1.5%.

Applications

HT Armaflex Coils are versatile and ideal for:

• Solar collector systems (including outdoor installations)
• Industrial hot gas and steam lines
• Motor vehicle and marine piping
• Dual-temperature lines in HVAC and refrigeration systems

Installation Tips

For optimal performance, follow the ArmaFlex application manual or Armacell’s Technical Bulletin No. 71. Use ArmaFlex HT625 adhesive (available in 0.25 L, 0.5 L, or 1.0 L cans) for secure bonding. Clean surfaces with ArmaFlex Cleaner or Solvent-Free Cleaner for best adhesion. Note: Avoid installation in extreme environments like high-altitude regions with severe weather unless consulting Armacell’s Customer Service.

Why Choose HT Armaflex Coils from PipeLagging.com?

At PipeLagging.com, we are committed to providing high-quality insulation solutions for UK customers. HT Armaflex Coils offer unmatched performance for high-temperature pipe lagging, combining energy efficiency, safety, and ease of use. Shop now to protect your piping systems with a product trusted worldwide, backed by Armacell’s rigorous testing and certifications.

Learn more about HT Armaflex or contact our team for expert advice on your insulation needs.
