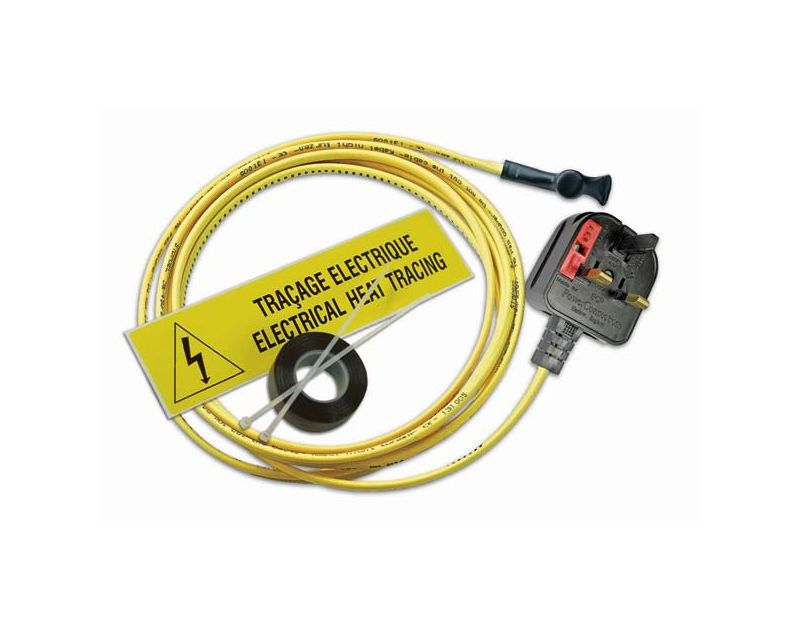

STOPGEL 3m Antifreeze Heating Cable for Pipe Freeze Protection

Ensure your metal pipes remain free from ice during cold UK winters with the STOPGEL 3m Antifreeze Heating Cable. Designed by FLEXELEC, this ready-to-use heating solution is perfect for smaller plumbing systems, offering reliable freeze protection for water pipes in temperatures as low as -30°C. Ideal for homes, gardens, and small commercial setups, this 3-metre cable prevents costly pipe damage caused by freezing.

Key Features and Benefits

• Automatic Thermostat Control: Integrated thermostat activates at +5°C to prevent water from freezing, eliminating the need for manual operation.
• Complete Installation Kit: Includes fitting accessories, a 1-metre power supply cord, and a standard electrical plug for quick and easy setup on metal pipes.
• Efficient Heat Transfer: Flat 5 x 7 mm cable design ensures optimal contact with the pipe surface for effective heat distribution.
• Robust and Safe: Features double insulation and Class II protection, with a service temperature range from -30°C to +80°C for durability and safety.
• Power Output: Delivers 15 W/m, totalling 45 W (±10%) for the 3m length, powered by 230 V – 50 Hz.
• 2-Year Warranty: Comes with a 2-year guarantee for added reliability and confidence.
• IP54 Rating: Dust and splash-resistant, suitable for outdoor and exposed pipe installations.

Applications

The STOPGEL 3m Antifreeze Heating Cable is ideal for protecting smaller metal water pipes in the UK, such as garden taps, outdoor plumbing, or short pipe runs in residential and light commercial settings. It’s a practical solution for preventing frozen pipes during cold weather, ensuring uninterrupted water flow and avoiding expensive repairs.

Installation Guidelines

Installing the STOPGEL 3m cable is straightforward. Wrap the cable along the length of the metal pipe and secure it using the included fitting accessories or optional aluminium adhesive tape (sold separately). Position the thermostat sensor (domed part) in direct contact with the pipe to ensure accurate temperature detection. Plug into a 230V outlet, and the cable will automatically activate when needed. Do not cut the cable to shorten it, as this will void the warranty and affect safety. For optimal protection down to -25°C, use the recommended insulation thickness (e.g., 9mm for pipes up to 24mm diameter).

Technical Specifications

• Model: STOPGEL/3
• Length: 3 metres
• Power Output: 45 W (±10%)
• Power per Metre: 15 W/m
• Voltage: 230 V – 50 Hz
• Insulation: Double insulation
• Protection Class: II
• Temperature Range: -30°C to +80°C
• Cable Section: Flat 5 x 7 mm
• Power Supply: 1m cold tail with plug
• Thermostat: Integrated at cable end
• Accessories Included: Fitting kit
• Guarantee: 2 years
• Certification: VERITAS certificate N° 1563016

Keep your pipes protected with the reliable STOPGEL 3m Antifreeze Heating Cable, available at PipeLagging.com. For additional accessories like aluminium adhesive tape, contact our team. Prepare your plumbing for winter with STOPGEL – the trusted choice for pipe freeze protection in the UK.
