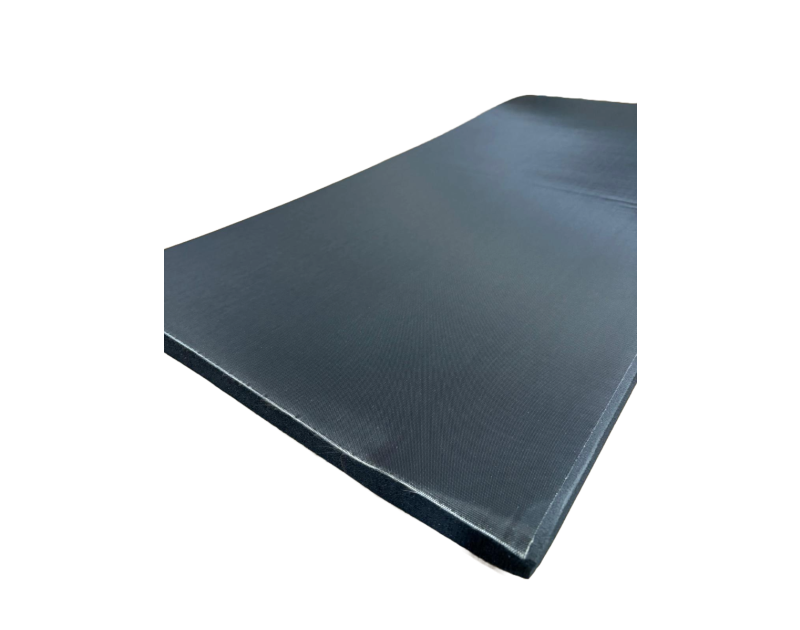

Arma-Chek D AFD-13MM - Durable Pipe Insulation Sheet

The Arma-Chek D AFD-13MM is a high-performance insulation sheet from Armacell, engineered to provide robust thermal and mechanical protection for pipes, ducts, vessels, and equipment. With a 13mm thickness and a pre-applied woven glass fibre covering, this product is designed to withstand challenging environments, making it an ideal choice for industrial and commercial applications across the UK.

Key Features

• Superior Durability: The woven glass fibre covering offers excellent resistance to mechanical impact, UV radiation, oil, and chemicals, ensuring long-term protection and reduced maintenance costs.
• Corrosion Protection: Significantly reduces the risk of corrosion under insulation (CUI), extending the lifespan of your equipment.
• High Thermal Efficiency: Achieves a thermal conductivity of ≤ 0.033 W/(m·K), minimising heat loss and improving energy efficiency in refrigeration and air conditioning systems.
• Water Vapour Resistance: With a water vapour diffusion resistance factor of μ ≥ 15,000, it prevents moisture ingress, maintaining insulation performance over time.
• Wide Temperature Range: Suitable for service temperatures from -50°C to +110°C, with a maximum of +185°C when fully adhered to surfaces.
• Health and Safety: Dust- and fibre-free, ensuring a safe installation process and compliance with health standards.

Applications

The Arma-Chek D AFD-13MM is versatile and well-suited for a range of applications, including:

• Insulation and protection of pipes and ducts in refrigeration and air conditioning systems.
• Thermal insulation for vessels and equipment in clean rooms and industrial installations.
• Protection against mechanical stress in environments prone to physical damage.

Installation Benefits

Designed for efficiency, the Arma-Chek D AFD-13MM combines insulation and covering in one product, streamlining the installation process. Its pre-covered design reduces labour time and ensures a secure fit. For optimal results, refer to the ArmaFlex and ArmaClad Arma-Chek installation manuals. Armacell also offers specialised installation training to ensure proper application.

Technical Specifications

Compliance and Certification

The Arma-Chek D AFD-13MM complies with the harmonised standard EN 14304:2009+A1:2013. Its performance has been verified by notified testing laboratories, including MPA NRW (No. 0432) for reaction to fire and FIW München (No. 0751) for thermal conductivity. A Declaration of Performance (DoP) is available at www.armacell.com/DoP, in accordance with Regulation (EU) No 305/2011.

Why Choose Arma-Chek D AFD-13MM?

Backed by Armacell’s expertise as a global leader in insulation solutions, the Arma-Chek D AFD-13MM offers unmatched reliability and performance. Its energy efficiency, durability, and ease of installation make it a cost-effective solution for protecting your equipment while meeting stringent UK building and safety standards.

For more information or to explore our full range of insulation products, contact our team at Pipelagging.com.
