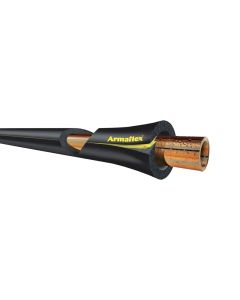

Armaflex HT Solar Pipe Insulation 2M Outdoor High Temperature UV Resistant-28mm-25mm-Wall
Description
28mm Armaflex HT Solar Pipe Insulation 25mm Wall 2M Outdoor High-Temperature UV Resistant.
Armaflex HT Solar Pipe Insulation Lagging Sunlight and UV resistant flexible up to 150 C
There is an increasing demand for the benefits of an environmentally friendly flexible insulation material, that retains these benefits at higher temperature ranges. HT/Armaflex meets demand.
The Advantage Of Specifying HT/Armaflex
Remains flexible at high temperatures of up to +150 C and down to -50 C
UV-resistant and can be installed outside without additional protective measures
Class 1 resistance to flame spread in accordance with BS 476 Part 7 test procedure
The built-in vapour barrier prevents condensation
Improved resistance against oil
Reduced smoke development in the event of a fire
Lightweight & flexible: easy and speedy installation with low maintenance, resulting in time and cost savings
Dust, fibre and CFC free with an Ozone Depletion Potential of zero
Application Area
Thermal Insulation for pipework, vessels and ducts in solar panels including Outdoors, Motor vehicles, Hot gas lines, Steam and dual temperature lines.
Technical Product Data - HT/Armaflex
| Properties | Values | Remarks |
| Material | Foamed EPDM Rubber |  |
| Max. Surface Temperature | +150 C | For temperatures between -50 C and -200 C, please consult our Technical Department. |
| Min. Surface Temperature | -50 C | |
| Thermal Conductivity at 0Â C | 0.038 W/(m K) | Test according to BS 874 Part 2 1986 |
| Thermal Conductivity at +40Â C | 0.042 W/(m K) | |
| Water Vapour Permeability | Moisture Resistance Factor > 4,000 | Test according to DIN 52 615 |
| Water Absorption | 0.2% by volume | Test according to ASTM C 209 |
| Surface Spread of Flames | Class 1 | Test according to BS 476 Part 7: 1997 |
| Reaction to fire | Self-extinguishing does not drip | |
| Noise Reduction | Sound Absorption Coefficient ISO 354:2003 - up to 0.8 | Also suitable for use in the prevention of sound passage |
| Resistance to | Building Materials: Very Good Ozone: Very Good UV: Very Good Chemicals: Consult Product Test List |
|
| Health Aspects | Dust & Fibre Free | |
| Other Properties | ODP zero GWP zero |
|
| Outdoor Applications | NO additional coating or painting is necessary -Â HT/Armaflex is UV-resistant. | |
tubes.
More Information
| Product Name | Armaflex HT Solar Pipe Insulation 2M Outdoor High Temperature UV Resistant-28mm-25mm-Wall |
|---|---|
| SKU | L150 |
| mpn | HT-25X028 |
| Manufacturer | Armacell |
| Brand | Armaflex |
