Armaflex EVO Pipe Insulation — Class O Black Nitrile Rubber Foam

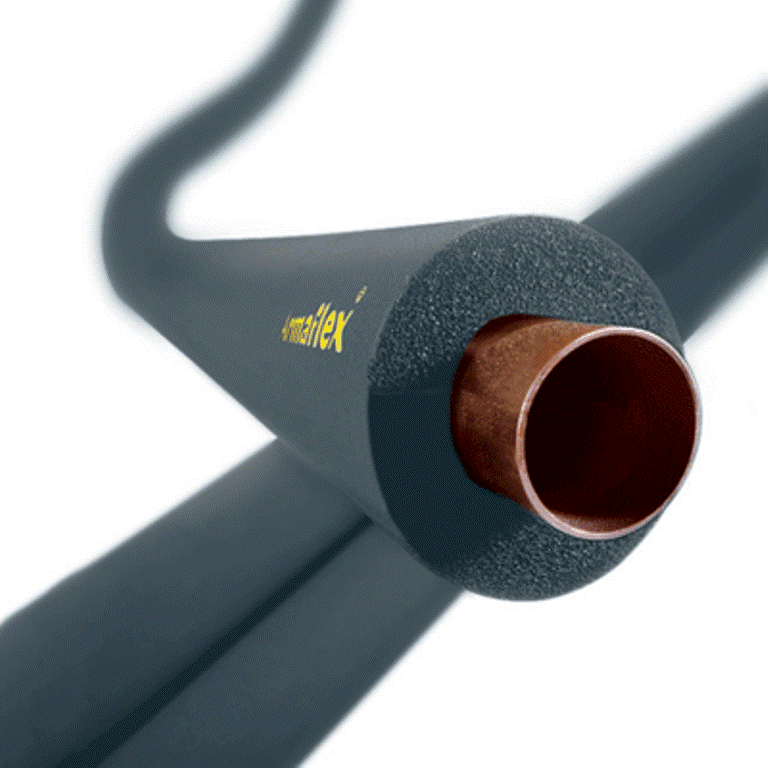

Armaflex EVO is the world's leading closed-cell elastomeric foam pipe insulation, manufactured by Armacell and specified by mechanical engineers, HVAC contractors and plumbers across the UK for over 60 years. Available in 2 metre lengths, Armaflex EVO delivers Class O fire performance, a built-in vapour barrier and low thermal conductivity in a flexible, easy-to-install format that fits every standard pipe size.

If you need a factory-applied adhesive closure for faster installation on straight runs, see our Armaflex EVO Self-Seal range.

Why Armaflex EVO?

• Class O fire rated — BS 476 Part 6 & 7, B-s2,d0 to EN 13501. Mandatory for commercial buildings, HVAC systems and any installation covered by Building Regulations Part B
• Built-in vapour barrier — closed-cell structure with water vapour resistance μ ≥ 10,000. No separate vapour wrapping required on chilled water or cold pipework
• Low thermal conductivity — λ ≤ 0.033 W/mK at 0°C, among the lowest of any flexible pipe insulation. Minimises heat loss on heating pipework and heat gain on chilled water
• Microban® antimicrobial protection — built into the foam, inhibiting mould and mildew growth on the insulation surface. Important for HVAC and chilled water applications
• Wide temperature range — -50°C to +105°C continuous operating temperature, covering all standard heating, cooling and refrigeration applications

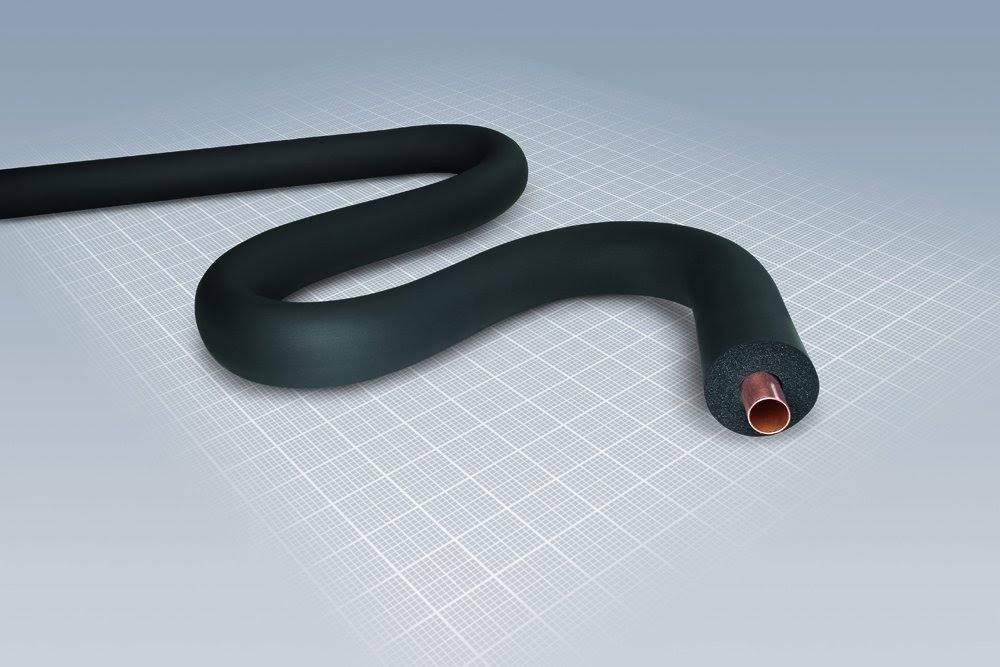

• Flexible and lightweight — bends around fittings and changes of direction without cutting. Significantly faster to install than rigid insulation on complex pipework

Technical Specifications

• Material: Closed-cell nitrile rubber (NBR) elastomeric foam
• Fire classification: Class O (BS 476 Part 6 & 7), B-s2,d0 (EN 13501-1)
• Thermal conductivity: λ ≤ 0.033 W/mK at 0°C
• Water vapour resistance: μ ≥ 10,000
• Operating temperature: -50°C to +105°C
• Length: 2 metres per piece
• Colour: Black
• Antimicrobial: Microban®

Available Pipe Sizes & Wall Thicknesses

Select your pipe outside diameter (OD) and wall thickness from the variant selector above. Available in all standard UK pipe sizes from 10mm to 114mm OD, in 9mm, 13mm, 19mm and 25mm wall thicknesses.

Not sure which wall thickness you need? See our Armaflex thickness guide for recommendations by application.

Common Applications

• Commercial and domestic central heating flow and return pipework
• Chilled water flow and return in HVAC systems
• Domestic and commercial hot and cold water supply
• Air conditioning refrigerant and chilled water pipework
• Heat pump primary circuits and buffer vessel connections
• Condensate pipework from boilers and heat pumps
• Refrigeration suction and liquid lines
• District heating secondary connections

Installation

Armaflex EVO is installed by opening the tube, fitting over the pipe and sealing the closure with Armaflex 520 contact adhesive. Butt joints between lengths should also be sealed with Armaflex 520. For bends and fittings, mitre cut the insulation and seal all cut faces with adhesive before assembly. Do not stretch or compress the insulation during installation as this reduces the effective wall thickness.

Complete Your Installation

• Armaflex 520 Adhesive — essential for sealing the closure and all butt joints. Do not use general-purpose contact adhesive on Armaflex
• Armaflex Cleaner — for surface preparation and removing adhesive residue
• Armaflex Lagging Tape — for finishing exposed edges and joints
• Rubber & Standard Pipe Clamps — correct pipe clamps for insulated pipework

Technical Downloads

• 📄 AF/Armaflex EVO — Technical Data Sheet (PDF)
• 📄 AF/Armaflex EVO — Product Brochure (PDF)
• 📄 AF/Armaflex EVO — Environmental Product Declaration (PDF)
• 📄 AF/Armaflex EVO — Declaration of Performance (PDF)

For technical advice or help selecting the right Armaflex product for your project, call our team on 0161 775 1190 (Mon–Fri 8am–4pm) or browse the full Armaflex range.
