Shop by Wall Thickness
13mm | 15mm | 19mm | 20mm | 25mm | 30mm | 40mm | 50mm

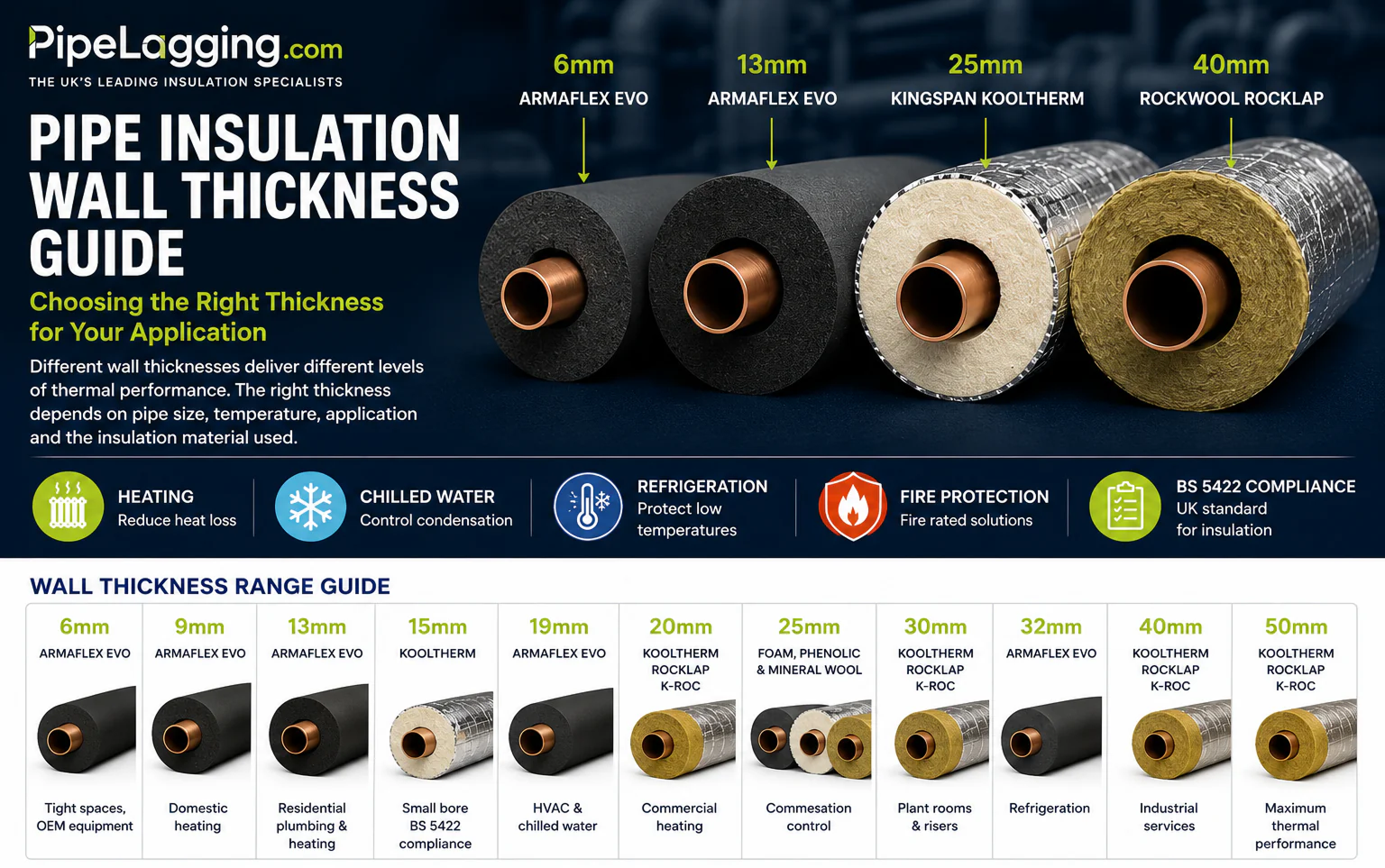

Wall Thickness by Application
| Application | Recommended Wall | Material |
|---|---|---|
| Domestic heating (heated space) | 9mm or 13mm | Armaflex EVO |
| Domestic heating (unheated space) | 19mm or 25mm | Armaflex EVO |
| Commercial HVAC / chilled water | 19mm, 25mm or 32mm | Armaflex EVO |
| Commercial heating BS 5422 (small bore) | 20mm or 25mm | Kingspan Kooltherm |
| Commercial heating BS 5422 (medium bore) | 25mm or 30mm | Kingspan Kooltherm |
| Commercial heating BS 5422 (large bore) | 30mm or 40mm | Kooltherm or Rockwool |
| High temperature / steam | 30mm, 40mm or 50mm | Rockwool Rocklap |
| District heating | 40mm or 50mm | Kooltherm 60kg or 120kg |
Wall Thickness by Pipe Size
- 15mm pipe — wall thickness guide
- 22mm pipe — wall thickness guide
- 28mm pipe — wall thickness guide
- 35mm pipe — wall thickness guide
- 42mm pipe — wall thickness guide
- 54mm pipe — wall thickness guide
- 76mm pipe — wall thickness guide
