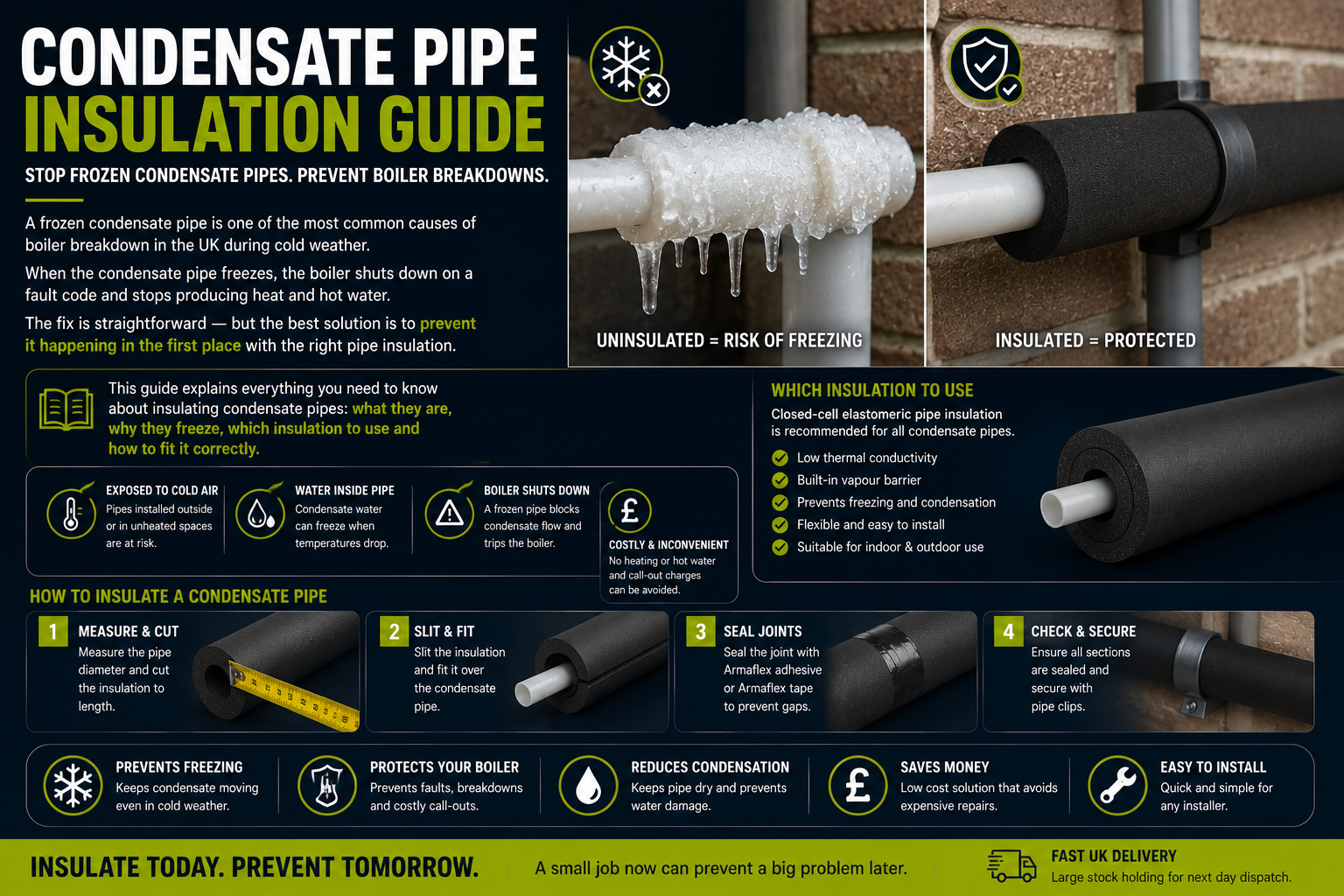

How to Insulate Condensate Pipes — Complete Guide

June 7, 2026

A frozen condensate pipe is one of the most common causes of boiler breakdown in the UK during cold weather. When the condensate pipe freezes, the boiler shuts down on a fault code and stops producing heat and hot water. The fix is straightforward — but the best solution is to prevent it happening in the first place with the right pipe insulation.

This guide explains everything you need to know about insulating condensate pipes: what they are, why they freeze, which insulation to use and how to fit it correctly.

What is a Condensate Pipe?

A condensate pipe carries acidic water (condensate) away from a condensing boiler to a drain. Condensing boilers extract so much heat from the flue gases that water vapour condenses in the heat exchanger, producing a small but continuous flow of slightly acidic water that must be safely discharged.

Most condensate pipes are 22mm or 32mm plastic pipe (typically white or grey PVCU or ABS). They run from the boiler to an internal drain, external drain or soakaway. It is the external sections of condensate pipe that are most vulnerable to freezing.

Why Do Condensate Pipes Freeze?

Condensate is water, and water freezes at 0°C. External condensate pipes are exposed to ambient temperatures and can freeze rapidly during cold snaps, particularly overnight when the boiler is not running and there is no warm condensate flowing through the pipe to keep it clear.

When the condensate freezes, it blocks the pipe. The boiler detects the blockage, locks out on a fault and stops working. Common boiler fault codes for a frozen condensate pipe include EA on Worcester Bosch, E133 on Vaillant and F1 on Ideal boilers — though codes vary by manufacturer.

Building Regulations and Condensate Pipe Insulation

Part H of the Building Regulations requires that condensate pipes are protected from freezing where they run externally. The Boiler Plus regulations and HHIC guidelines recommend that external condensate pipes are insulated to prevent freezing, and that the external run is kept as short as possible.

For new boiler installations, the installer is responsible for ensuring the condensate pipe is adequately protected. For existing installations with a history of freezing, retrofitting insulation is the most cost-effective solution.

Which Insulation Should You Use on a Condensate Pipe?

The right insulation for a condensate pipe depends on where it runs:

External Condensate Pipes (Most Common Problem)

For external condensate pipes, you need insulation that is:

Weatherproof — resistant to rain, frost and UV degradation
Closed-cell — does not absorb water
Suitable for plastic pipe — compatible with PVCU and ABS

The best options are:

Armaflex pipe insulation with weatherproof finish or jacketing — closed-cell elastomeric rubber, excellent thermal performance, but standard Armaflex requires UV protection outdoors. Use with Armaflex Tuffcoat or aluminium jacketing for fully exposed external runs.
Foam pipe insulation with UV-resistant coating — standard polyethylene foam (such as Climaflex) is not suitable for long-term outdoor use without protection, but pre-coated or foil-faced versions can be used for short external runs.
Specialist outdoor pipe insulation — products specifically designed for external use with built-in weather resistance.

Internal Condensate Pipes in Unheated Spaces

Condensate pipes running through unheated spaces such as lofts, garages or underfloor voids can also freeze. For these locations, standard Armaflex or foam pipe insulation is suitable, as UV resistance is not required.

What Size Insulation Do I Need for a Condensate Pipe?

Condensate pipes are most commonly 22mm or 32mm outside diameter. Match the bore of the insulation to the outside diameter of the pipe:

For external runs in exposed locations or areas with prolonged cold periods, 25mm wall thickness provides additional protection. Read our pipe insulation sizing guide if you are unsure how to measure your pipe.

How to Fit Condensate Pipe Insulation — Step by Step

Measure the pipe — measure the outside diameter of the condensate pipe and the total length of the external run
Choose the right insulation — select the correct bore size and wall thickness. For external runs, ensure the insulation is suitable for outdoor use or will be protected with jacketing
Cut to length — use a sharp knife or scissors to cut the insulation to the required lengths. Mitre joints at bends for a neat finish
Fit the insulation — open the slit along the length of the tube and snap it over the pipe. On Armaflex, apply adhesive to both faces of the seam before closing
Seal all joints — apply Armaflex 520 adhesive or Armaflex tape to all butt joints between lengths. This is critical — unsealed joints allow cold air to reach the pipe
Seal the ends — seal the insulation at both ends where it meets the wall or fitting to prevent cold air ingress
Add weatherproofing if required — for fully exposed external runs, apply aluminium jacketing or a UV-resistant coating over the insulation

Can I Use Standard Foam Pipe Lagging on a Condensate Pipe?

Standard polyethylene foam pipe lagging (the grey foam sold in DIY stores) can be used on condensate pipes for short-term protection, but it has significant limitations for external use:

It degrades rapidly when exposed to UV light and weather
It absorbs water when the outer skin is damaged, losing its insulating properties
It is not suitable for long-term outdoor installation without protection

For a permanent, reliable solution on external condensate pipes, Armaflex elastomeric insulation with appropriate weatherproofing is the professional choice.

How to Thaw a Frozen Condensate Pipe

If your condensate pipe has already frozen, here is how to thaw it safely:

Locate the frozen section — usually the external run or the point where the pipe exits the building
Pour warm (not boiling) water over the frozen section, or apply a hot water bottle or heat wrap
Do not use a naked flame or heat gun directly on plastic pipe
Once thawed, reset the boiler according to the manufacturer's instructions
Fit insulation immediately to prevent a repeat freeze

Frequently Asked Questions

Does a condensate pipe have to be insulated?
Building Regulations Part H and HHIC guidelines require that external condensate pipes are protected from freezing. Insulation is the standard method of compliance. For new boiler installations, the installer is responsible for ensuring adequate protection.

What is the minimum insulation thickness for a condensate pipe?
For external condensate pipes, 19mm wall thickness is the recommended minimum. In exposed locations or areas with prolonged cold weather, 25mm wall provides additional protection.

Can I run the condensate pipe internally to avoid freezing?
Yes — routing the condensate pipe internally to discharge into an internal drain is the most reliable way to prevent freezing and is the preferred solution where possible. Where an external run is unavoidable, insulation is essential.

My boiler keeps locking out in winter — is it the condensate pipe?
If your boiler locks out during cold weather and displays a fault code, a frozen condensate pipe is the most likely cause. Check the external pipe run for ice and thaw as described above. Fit insulation to prevent recurrence.

What size is a standard condensate pipe?
Most domestic boiler condensate pipes are 22mm outside diameter. Some installations use 32mm pipe, particularly where the run is long or serves multiple boilers. Measure the outside diameter of your pipe to confirm the size before ordering insulation.
