Armaflex EVO Pipe Insulation Lagging — Class O Black Nitrile Foam 2m

Armaflex EVO Pipe Insulation — Black Closed-Cell Elastomeric Foam

Armaflex EVO is Armacell's flexible closed-cell elastomeric foam pipe insulation for HVAC, refrigeration and process-equipment applications. Manufactured from flexible elastomeric foam based on synthetic rubber (FEF) in accordance with EN 14304, it combines low thermal conductivity, high resistance to water-vapour diffusion, low smoke development and built-in Microban® antimicrobial protection.

This listing is for the solid (uncut) 2 metre tube format. If you need a pre-slit tube with a factory-applied adhesive closure for faster installation on straight runs, see our Armaflex EVO Self-Seal range.

Why Choose Armaflex EVO?

• Reaction to fire: tubes achieve Euroclass B(L)-s2,d0 to EN 13501-1
• Closed-cell vapour-control performance: water-vapour diffusion resistance factor μ ≥ 10,000 for 6–25mm tube thicknesses and μ ≥ 7,000 for tube thicknesses above 25mm
• Low thermal conductivity: λd ≤ 0.033 W/(m·K) at 0°C for tubes 6–25mm wall and λd ≤ 0.036 W/(m·K) at 0°C for tubes above 25mm wall

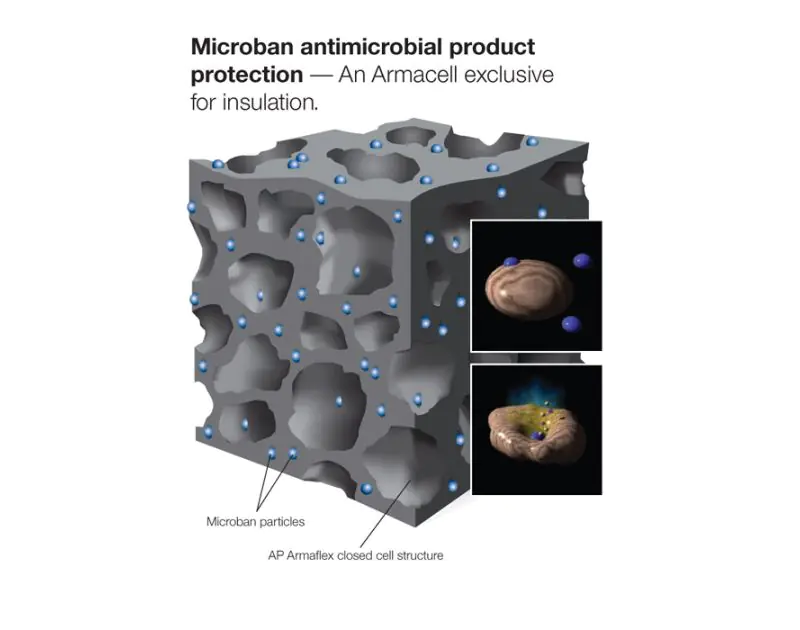

• Microban® antimicrobial protection: built into the insulation; Armacell reports no fungal growth observed under the referenced test methods
• Service temperature: -50°C to +110°C for standard tube applications
• FM Approved: FM 4924 for pipe and duct insulation
• Passive fire protection: fire-resistance performance EI 30–EI 90 in relevant tested construction applications
• Flexible and lightweight: suitable for complex building-services pipework and fabricated insulation details

Technical Specifications

• Material: Flexible elastomeric foam based on synthetic rubber (FEF), to EN 14304
• Colour: Black
• Format: Solid uncut tube
• Length: 2 metres per piece
• Service temperature: -50°C to +110°C for tubes
• Thermal conductivity, tubes 6–25mm: λd ≤ 0.033 W/(m·K) at 0°C and 0.038 W/(m·K) at 40°C
• Thermal conductivity, tubes above 25mm: λd ≤ 0.036 W/(m·K) at 0°C and 0.041 W/(m·K) at 40°C
• Reaction to fire: Tubes B(L)-s2,d0 — EN 13501-1
• Water-vapour diffusion resistance: μ ≥ 10,000 for tubes 6–25mm; μ ≥ 7,000 for tubes above 25mm
• FM Approval: 4924 — pipe and duct insulation
• UV exposure: Armacell states that protection against UV radiation is necessary; outdoor installations should be protected with a suitable covering within 3 days of installation
• Antimicrobial: Built-in Microban® antimicrobial protection

Available Pipe Sizes & Wall Thicknesses

Select your pipe outside diameter (OD) and wall thickness from the variant selector. The range includes multiple UK pipe sizes and wall thicknesses from 6mm to 32mm depending on pipe diameter.

Not sure which wall thickness you need? See our Armaflex thickness guide for application guidance.

Common Applications

• Air-conditioning and refrigeration pipework
• Chilled-water services
• Heating and hot-water pipework
• Heat-pump primary circuits
• Process-equipment pipework
• Fittings, elbows, flanges and fabricated insulation details

Installation

Install in accordance with the current ArmaFlex application manual. Solid tubes can be slid over pipe before final connection, or cut longitudinally where required for retrofit installation. Seal longitudinal seams, butt joints and fabricated fittings with a compatible ArmaFlex adhesive.

Armacell lists ArmaFlex ECO 550 and ArmaFlex 525 as certified adhesives for AF/ArmaFlex EVO; ArmaFlex 520 may also be used for tubes.

Complete Your Installation

• Armaflex 520 Adhesive — suitable for bonding EVO tube seams and joints
• Armaflex Cleaner — for surface preparation and adhesive clean-up
• Armaflex Lagging Tape — for finishing compatible insulation details
• Rubber & Standard Pipe Clamps — pipe-clamp options for insulated services

Technical Downloads

• 📄 AF/Armaflex EVO — Technical Data Sheet (PDF)
• 📄 AF/Armaflex EVO — Product Brochure (PDF)
• 📄 AF/Armaflex EVO — Environmental Product Declaration (PDF)
• 📄 AF/Armaflex EVO — Declaration of Performance (PDF)

For technical advice or help selecting the right Armaflex product for your project, call our team on 0161 775 1190 (Mon–Fri 8am–4pm) or browse the full Armaflex range.
