Waterproof Pipe Lagging — Outdoor and Underground Guide

Protecting pipework in external environments demands far more than simply extending internal insulation systems outdoors. Weatherproof pipe lagging must withstand relentless UV bombardment, moisture infiltration, temperature cycling, and mechanical assault whilst maintaining thermal efficacy. This comprehensive guide examines the critical considerations for outdoor pipe insulation, underground pipe insulation applications, and the specialist materials engineered to endure Britain's challenging climate.

Why Standard Pipe Insulation Fails Outdoors

Conventional elastomeric foam and polyethylene pipe lagging excel within controlled building environments, yet deteriorate rapidly when subjected to external conditions. Understanding these failure mechanisms proves essential when specifying waterproof pipe insulation for exposed installations.

UV degradation represents the primary nemesis of standard closed-cell materials. Ultraviolet radiation cleaves molecular bonds within elastomeric polymers, causing surface chalking, embrittlement, and eventual disintegration. Unprotected Armaflex typically exhibits significant degradation within eighteen months of external exposure, losing both structural integrity and insulative properties.

Moisture ingress constitutes an equally pernicious threat. Whilst closed-cell materials resist water vapour transmission admirably, prolonged exposure to driving rain, condensation cycling, and standing water overwhelms their defences. Water penetrates through microscopic surface cracks, inadequately sealed joints, or mechanical damage points. Once beneath the insulation layer, moisture tracking occurs — water migrates along the pipe surface, corroding metal substrates and destroying insulation efficacy across extensive lengths.

Mechanical damage from impacts, abrasion, and wildlife activity compounds these environmental assaults. Exposed insulation lacks the protection afforded by internal building fabric. Squirrels gnaw through foam seeking nesting materials. Maintenance personnel inadvertently strike lagging during grounds work. Even wind-driven debris gradually erodes unprotected surfaces.

Three Critical Outdoor and Underground Scenarios

Specifying appropriate outdoor pipe lagging requires distinguishing between distinct environmental exposures, each presenting unique challenges and demanding tailored solutions.

Above Ground Exposed Installations

Plant rooms with external walls, rooftop HVAC installations, and pipework traversing building exteriors face direct UV exposure, precipitation, and temperature extremes. These applications require robust weather-resistant outer layers whilst maintaining accessibility for inspection and maintenance. Thermal cycling proves particularly severe — black cladding surfaces may exceed 60°C under summer sun, then plummet below freezing during winter nights.

Below Ground Buried in Soil

Underground pipe insulation confronts constant moisture exposure, soil chemistry variations, and compressive loading from overburden. Groundwater levels fluctuate seasonally, potentially submerging installations. Alkaline or acidic soil conditions may attack certain insulation materials or cladding systems. Excavation for subsequent works risks mechanical damage to buried lagging.

Submerged or High-Moisture Environments

Pipework within sumps, drainage channels, or coastal locations experiences perpetual saturation. Standard insulation materials simply cannot function in these extremes. Pre-insulated pipe systems with factory-applied waterproof barriers or mineral wool products with hydrophobic treatment become essential. These scenarios demand absolute impermeability rather than mere moisture resistance.

Armaflex Tuffcoat — The Premium Weatherproof Solution

Armaflex Tuffcoat represents the benchmark for waterproof pipe insulation in demanding external applications. This advanced elastomeric foam features a factory-bonded protective coating specifically engineered to withstand UV radiation, ozone, weathering, and mechanical abuse.

The proprietary coating system provides exceptional resilience. Unlike field-applied paints or wraps, the factory lamination process ensures complete coverage and optimal adhesion. The coating remains flexible across the material's service temperature range, preventing cracking during thermal cycling. UV stabilisers embedded within the coating matrix block degrading radiation wavelengths.

Tuffcoat maintains the superior thermal properties inherent to Armaflex — low thermal conductivity, zero water vapour permeability in the closed-cell structure, and resistance to moisture absorption. The coating adds minimal thickness whilst dramatically extending service life. Installations regularly achieve twenty-year performance in fully exposed conditions.

Small bore applications particularly benefit from Tuffcoat technology. Refrigerant lines, chilled water services, and condensate pipes running externally receive comprehensive protection without excessive bulk. The material handles effortlessly during installation, cutting cleanly and bonding securely with appropriate adhesives.

PVC Cladding Over Standard Insulation

For cost-conscious projects involving above-ground exposed pipes, PVC cladding systems offer robust protection for standard insulation materials. This approach combines the thermal performance of conventional foam or mineral wool with a durable weatherproof shell.

Half-section PVC cladding profiles clip together around installed insulation, creating a seamless protective barrier. The rigid PVC resists UV degradation indefinitely, sheds water effectively, and provides mechanical protection against impacts. Longitudinal joints incorporate interlocking profiles that exclude moisture whilst accommodating thermal movement.

Installation proves straightforward, requiring only basic hand tools. The cladding sections accommodate standard insulation thicknesses, with profiles available for pipe diameters from 15mm to 600mm. Colour options — typically white, black, or mill finish aluminium effect — allow aesthetic coordination with building exteriors.

This methodology suits larger bore pipework particularly well, where Tuffcoat availability may be limited or cost-prohibitive. Steam lines, heating mains, and process pipework benefit from economical yet effective protection. However, meticulous joint sealing between cladding sections remains critical to prevent water ingress.

Mineral Wool with Weatherproof Jacket

Larger bore pipes in external installations frequently employ mineral wool insulation protected by factory-applied reinforced facings or field-applied metal cladding. Rockwool and similar stone wool products offer non-combustible properties, exceptional high-temperature resistance, and proven durability in industrial environments.

Pre-jacketed mineral wool sections feature reinforced aluminium foil or polymeric facing bonded during manufacture. These facings provide weather resistance, mechanical protection, and vapour barriers. The multi-layer construction typically incorporates woven scrim reinforcement between foil layers, dramatically improving tear resistance and durability during installation and service.

For district heating mains, large chilled water risers, and industrial process pipework exceeding 100mm diameter, mineral wool represents the economically viable solution. The material accommodates extreme operating temperatures — from cryogenic applications through to superheated steam at 650°C. Fire performance proves particularly valuable where external pipework traverses escape routes or passes close to combustible building elements.

Aluminium or stainless steel cladding over mineral wool provides the ultimate weatherproof pipe lagging system for large bore applications. The metal jacket sheds precipitation, reflects solar radiation, and withstands decades of exposure. Proper specification includes standing seam longitudinal joints, sealed circumferential bands at regular intervals, and purpose-designed end caps.

Underground Pipe Insulation Options

Buried pipework presents unique challenges that eliminate many above-ground solutions from consideration. The perpetual moisture exposure, soil loading, and inaccessibility for maintenance demand materials engineered specifically for subterranean service.

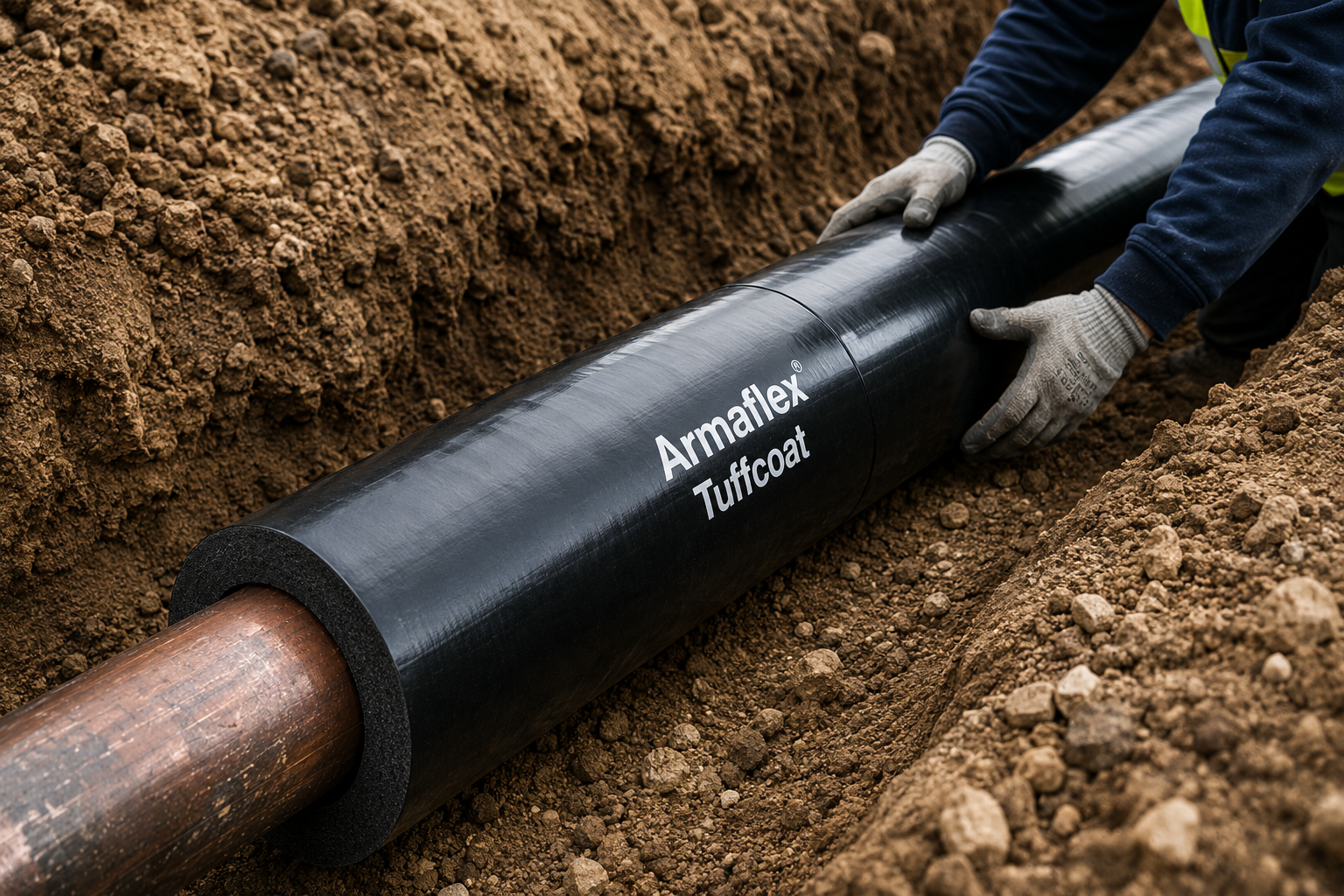

For small bore underground applications — residential heating feeds, domestic water services, condensate drains — Armaflex Tuffcoat provides reliable protection. The robust coating withstands soil contact, resists moisture penetration, and maintains flexibility during installation in confined trenches. Joints sealed with appropriate tapes and adhesives create continuous moisture barriers.

Pre-insulated pipe systems represent the professional standard for larger underground installations. District heating networks, commercial building energy centres, and industrial process lines utilise factory-assembled pipe-in-pipe construction. The carrier pipe sits centrally within an oversized casing pipe, with the annular space filled with polyurethane foam insulation.

These sophisticated systems incorporate leak detection capabilities. Fine wires embedded within the foam annulus monitor electrical resistance; moisture ingress from carrier pipe leakage or casing damage triggers alarms before catastrophic failure occurs. The technology proves invaluable for inaccessible buried installations where undetected leaks would otherwise waste energy and damage surrounding infrastructure.

Installation depth significantly influences underground insulation specifications. Shallow burials beneath paving or landscaping require crush-resistant casing materials — typically medium-density polyethylene or steel. Deeper installations below roadways demand engineering-grade systems rated for vehicular loading. Frost protection calculations determine minimum burial depths and insulation thicknesses for buried water services.

Sealing Joints Outdoors — The Critical Weak Point

Even premium waterproof pipe insulation fails catastrophically if joints receive inadequate attention. Water exploits the tiniest gaps, tracking beneath insulation and negating thermal performance across extensive pipe runs. Outdoor installations demand fastidious joint sealing protocols.

Butt joints between insulation sections require complete sealing of the circumferential gap. Elastomeric contact adhesive alone proves insufficient for weatherproof applications. The professional methodology employs adhesive application followed by weatherproof tape wrapping. The tape overlaps the joint by minimum 50mm on each side, stretched during application to ensure intimate contact.

Longitudinal slit closures present equal vulnerability. Self-seal insulation relies on compression to maintain closure — adequate indoors but compromised by thermal cycling and ageing outdoors. External applications necessitate adhesive application along the entire slit length, with additional tape reinforcement for critical installations.

Penetrations, branches, and fittings multiply sealing challenges exponentially. Pre-formed insulation components for elbows, tees, and valves simplify installation but create numerous joint interfaces. Each junction demands individual sealing attention. Mastic sealants fill irregular gaps before tape application. Complex valve assemblies may require custom-fabricated weatherproof enclosures.

Regular inspection intervals allow early detection of joint degradation. Annual visual surveys identify tape lifting, sealant cracking, or cladding damage. Prompt remedial action prevents minor defects escalating into major insulation failures.

Inspection and Maintenance Access

Specifying outdoor pipe lagging requires balancing weather protection with practical accessibility for inspection, maintenance, and eventual repair. Permanently sealed systems resist moisture admirably but create nightmares when valve repacking or pipe repairs become necessary.

Removable cladding sections at strategic locations facilitate access without compromising overall weather protection. Flanged joints, isolation valves, strainers, and instrumentation points warrant removable insulation assemblies. These sections utilise mechanical fixings rather than adhesive bonding, with weatherproof gaskets maintaining moisture exclusion.

Colour-coded or numbered cladding sections simplify identification of access points. Maintenance documentation should reference these markers, enabling personnel to locate serviceable components without disturbing extensive insulation runs. Stainless steel banding with embossed identification tags provides durable marking systems for external environments.

Expansion loops and movement joints present particular challenges. Pipework thermal expansion can reach 20mm per 10-metre run on heating systems. Rigid cladding systems must accommodate this movement without creating moisture ingress paths. Proprietary expansion bellows or telescoping cladding sections maintain weather protection whilst permitting axial movement.

Common Mistakes with Outdoor Pipe Insulation

Decades of rectifying failed external insulation installations reveal recurring specification and installation errors. Understanding these pitfalls enables professionals to avoid costly remedial works and system underperformance.

The most prevalent mistake involves using standard Armaflex or polyethylene foam outdoors without adequate protection. Specifiers familiar with these materials' excellent indoor performance mistakenly assume equivalent external durability. Within months, UV degradation commences. Surface cracking permits moisture ingress. The insulation becomes waterlogged, losing thermal efficacy and adding dead weight to pipe supports. Complete replacement becomes inevitable within two years.

Poor joint sealing represents the second catastrophic error. Installers accustomed to internal work may apply outdoor techniques without appreciating the elevated moisture exposure. Tape application without adequate surface preparation — cleaning and priming — results in premature adhesive failure. Insufficient overlap distances leave vulnerable gaps. Failure to seal longitudinal slits creates ready pathways for water infiltration.

Inadequate support and fixings cause mechanical failure of weatherproof pipe lagging systems. External installations experience wind loading, ice accumulation, and thermal movement absent from indoor environments. Support spacing appropriate for internal work proves insufficient outdoors. Heavy metal cladding systems require dedicated support saddles at closer centres. Banding fixings must resist corrosion — stainless steel becomes essential rather than optional.

Neglecting thermal bridging at support points undermines insulation effectiveness. Metal pipe clips and brackets conduct heat directly through insulation layers, creating localised cold spots and condensation risks. Purpose-designed insulation supporting systems incorporate thermal breaks. Wooden bearers or phenolic blocks interposed between metalwork and pipe prevent thermal bypass.

Specification of inappropriate materials for the specific exposure conditions leads to premature failure. Selecting closed-cell foam for continuously submerged applications ignores fundamental material limitations. Specifying PVC cladding for high-temperature steam lines exceeds material temperature ratings. Employing untreated mineral wool below ground invites water absorption and collapse.

• Always specify UV-resistant materials or protective cladding for above-ground exposed locations
• Ensure comprehensive joint sealing with adhesives and weatherproof tapes suitable for external service
• Calculate support spacing accounting for cladding weight, wind loading, and ice accumulation
• Incorporate thermal breaks at all support and fixing points
• Select insulation materials compatible with maximum operating temperatures and moisture exposure levels
• Provide removable sections at maintenance points rather than permanently sealed assemblies
• Specify corrosion-resistant fixings, bandings, and fasteners for external environments

Documentation errors create long-term maintenance difficulties. Failing to record insulation specifications, access point locations, and installation dates hampers future servicing. Buried pipework lacks surface-level marking, leading to accidental damage during excavation works. Comprehensive as-fitted documentation with photographic records proves invaluable throughout the installation's service life.

Selecting the Right Solution for Your Project

Navigating the diverse range of waterproof pipe insulation options requires systematic evaluation of project-specific parameters. No single solution suits all external applications; optimal specification balances performance, longevity, accessibility, and budget considerations.

Begin by categorising the exposure environment using the three-scenario framework: above ground exposed, below ground buried, or submerged high-moisture. This fundamental classification immediately eliminates unsuitable material options and focuses attention on viable solutions.

Operating temperature range significantly influences material selection. Elastomeric foams typically serve applications from -50°C to +110°C. Higher temperatures demand mineral wool or specialist phenolic materials. Cryogenic installations below -50°C require specific closed-cell materials with proven low-temperature flexibility.

Pipe diameter affects both material availability and cost-effectiveness. Small bore pipework under 100mm diameter suits tube insulation products — Armaflex Tuffcoat, K-Flex with protective coatings, or polyethylene foam with applied cladding. Larger diameters increasingly favour mineral wool with metal cladding or pre-insulated pipe systems for underground installations.

Budget constraints necessarily influence specifications, yet false economy proves expensive long-term. Premium materials like Tuffcoat command higher initial costs but eliminate replacement cycles inherent to inadequately protected standard products. Life-cycle cost analysis should encompass material longevity, maintenance requirements, energy performance degradation, and replacement disruption costs.

Regulatory compliance may mandate specific solutions. Fire-rated external installations require non-combustible mineral wool. Potable water services underground necessitate materials certified for contact with drinking water. District heating schemes must meet heat loss regulations governing network efficiency.

Professional Installation and Long-Term Performance

Superior materials deliver optimal performance only when installed to exacting standards. Outdoor pipe lagging demands heightened attention to detail compared with internal applications. Moisture exclusion depends upon meticulous workmanship at every joint, penetration, and termination point.

Surface preparation proves critical. Pipes must be clean, dry, and free from loose scale, corrosion, or previous coating residues. External installations often involve existing pipework requiring insulation upgrades. Wire brushing, solvent cleaning, or abrasive blasting may be necessary to achieve suitable substrate conditions.

Weather conditions during installation significantly affect adhesive performance and joint sealing efficacy. Most insulation adhesives and tapes require minimum application temperatures — typically 5°C — and dry conditions. Winter installations may necessitate temporary enclosures or heating to maintain suitable working environments. Rain during installation can be catastrophic, requiring complete re-working of affected sections.

Quality assurance protocols should include photographic documentation of all joints before closure or cladding application. These records prove invaluable for warranty claims and provide future maintenance reference. Independent inspection at key project stages — typically at 25%, 50%, and 100% completion — identifies defects whilst rectification remains straightforward.

Commissioning procedures for external insulation extend beyond simple visual inspection. Thermal imaging surveys detect inadequately insulated areas, joint defects, and support thermal bridges. These non-invasive assessments verify installation quality and establish baseline performance data for future condition monitoring.
