Tuffcoat Outdoor Pipe Insulation Guide

Primary Applications for Tuffcoat Pipe Insulation

The versatility of Tuffcoat insulation extends across numerous installation scenarios where conventional lagging materials prove inadequate. Recognising appropriate applications ensures optimal specification and long-term system performance.

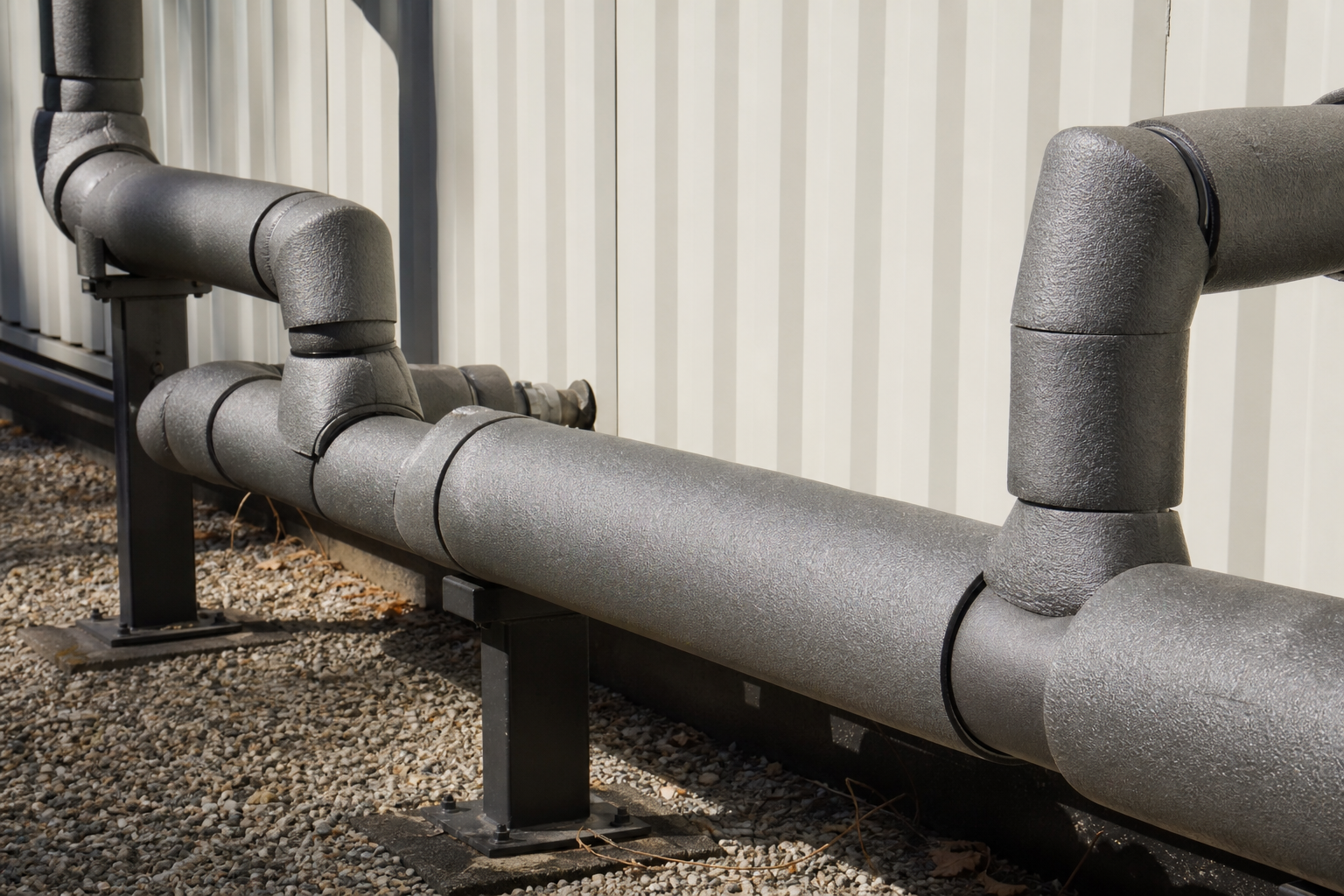

Above-Ground Outdoor Pipework

Exposed distribution mains traversing exterior spaces represent the quintessential Tuffcoat application.

Refrigerant lines connecting condensing units to air handling equipment, heating mains bridging between buildings, and chilled water services supplying perimeter fan coil units all benefit from this protective insulation system.

The robust outer coating withstands inadvertent contact, resists atmospheric pollutants, and maintains aesthetic appearance throughout extended service intervals.

Rooftop installations present particularly challenging conditions. Unobstructed solar exposure, wind-driven rain and temperature extremes test material resilience. Tuffcoat excels in these environments, providing dependable thermal control for pipework serving cooling towers, package units and centralised plant equipment.

The UV-resistant formulation prevents the surface degradation that compromises both performance and professional appearance.

Exposed Plant Room Pipework

Modern architectural trends increasingly position mechanical equipment in visible locations, including:

• Courtyard plant enclosures
• Glazed riser shafts
• Semi-external machinery spaces

These installations demand insulation materials that combine technical performance with presentable aesthetics.

Tuffcoat's durable finish maintains its appearance far longer than painted alternatives, eliminating the maintenance burden of periodic recoating whilst ensuring compliance with thermal efficiency requirements.

Basement car parks and loading bays constitute semi-external environments where pipework faces:

• Moisture exposure
• Vehicle emissions
• Potential mechanical damage

The resilient protective layer shields against impact whilst preventing moisture ingress, helping prevent corrosion under insulation and extending system life.

Underground Applications with Supplementary Protection

Whilst Tuffcoat provides exceptional weather resistance, direct burial applications require additional protection.

When employed for underground services, insulation should be enclosed within:

• Protective ducting
• Reinforced barrier film
• Specialist underground pipe protection systems

This layered approach protects against:

• Soil pressure
• Groundwater infiltration
• Excavation damage

The waterproof characteristics of Tuffcoat make it particularly suitable for shallow burial scenarios or trenched services where moisture exposure is inevitable.

Pre-insulated pipe systems incorporating Tuffcoat within protective jacketing often outperform conventional lagging materials in demanding underground environments.

Available Sizes and Wall Thickness Specifications

Tuffcoat is available across a comprehensive range of diameters suitable for commercial and industrial pipework.

Pipe bore sizes range from:

• 6mm refrigerant and instrument air lines
• Through to 168mm distribution mains

This extensive range ensures correct sizing for both thermal performance and installation quality.

Wall Thickness Selection

Wall thickness options typically include:

• 9mm
• 13mm
• 19mm
• 25mm
• 32mm

Selecting the correct thickness depends on:

• Operating temperature
• Ambient conditions
• Condensation risk
• Building Regulations requirements

Chilled water and refrigeration systems generally require thicker insulation to prevent condensation, while heating systems may allow thinner wall sections where moisture control is not a concern.

Typical Sizing Guide

Professional Installation Techniques for Tuffcoat Systems

Proper installation is essential to maximise service life and thermal performance.

Joint Sealing and Adhesive Application

Longitudinal seams and butt joints represent potential weak points in any insulation system.

For best results:

• Apply Armaflex HT625 adhesive evenly to both surfaces.
• Allow the adhesive to become tacky.
• Join surfaces firmly.
• Ensure complete contact along the entire seam.

For butt joints:

• Cut ends square and clean.
• Avoid gaps greater than 3mm.
• Stagger joints where possible.
• Fully seal all exposed edges.

Weatherproofing and External Protection

Although Tuffcoat includes a protective outer coating, additional weatherproofing measures should be used at vulnerable locations.

Particular attention should be paid to:

• Termination points
• Wall penetrations
• Roof penetrations
• Areas prone to standing water

All cut edges should be sealed using Armaflex Finish or an approved weatherproof sealant.

Pipe Supports and Hangers

Supports must not crush or compress the insulation.

Best practice includes:

• Using insulated pipe supports
• Installing load-spreading saddles
• Avoiding direct compression
• Sealing all support penetrations

Correct support installation helps maintain insulation continuity and prevent thermal bridging.

Installation in Challenging Environments

Coastal Locations

Salt-laden air can accelerate degradation of poorly protected insulation systems.

Tuffcoat's weather-resistant coating provides enhanced protection against:

• Salt spray
• UV exposure
• Corrosive environments

Industrial Environments

Industrial sites often expose pipework to:

• Airborne contaminants
• Chemical pollutants
• Mechanical damage

Tuffcoat offers superior protection compared to conventional outdoor lagging systems.

Regular inspections during the first year are recommended to identify and rectify any installation defects before moisture ingress occurs.

Tuffcoat vs Armaflex HT

Both products are designed for demanding insulation applications but serve different purposes.

Choose Armaflex HT When:

• Operating temperatures exceed 110°C
• Solar thermal systems are involved
• High-temperature process pipework is present
• Maximum temperature resistance is required

Temperature rating:

• Up to approximately 150°C

Choose Tuffcoat When:

• Pipework is permanently exposed outdoors
• UV resistance is essential
• Weather protection is a priority
• Chilled water systems are installed externally
• Rooftop HVAC services require insulation

Temperature rating:

• Up to approximately 110°C

Long-Term Performance and Maintenance

Correctly installed Tuffcoat systems routinely provide service lives exceeding 15 years, with many installations lasting over 20 years.

Routine inspections should focus on:

• Joint integrity
• Sealant condition
• Mechanical damage
• Surface coating wear

The closed-cell structure minimises moisture absorption, helping maintain thermal performance even if superficial coating damage occurs.

Building Regulations and Energy Efficiency Compliance

Tuffcoat supports compliance with a range of UK building standards.

Fire Performance

Class O variants provide low surface spread of flame characteristics suitable for many commercial applications where Building Regulations require enhanced fire performance.

Thermal Performance

Typical thermal conductivity:

0.034 W/mK at 0°C mean temperature

This allows accurate calculation of insulation performance for Part L compliance and energy efficiency assessments.

Conclusion

Tuffcoat pipe insulation is one of the most effective solutions for protecting external pipework against UV exposure, weathering and mechanical damage.

Whether installed on rooftop HVAC systems, chilled water services, heating mains or exposed plant equipment, Tuffcoat provides long-term thermal performance while reducing maintenance requirements and protecting valuable pipework assets.

For projects requiring durable outdoor pipe insulation, Tuffcoat offers an excellent combination of weather resistance, thermal efficiency and long-term reliability.
