Underground Pipe Insulation — Complete Guide

Why Underground Pipes Need Insulation

Underground pipework faces a unique set of environmental challenges that above-ground installations rarely encounter. The subterranean environment subjects buried services to constant moisture exposure, soil pressures, and thermal gradients that can severely compromise system efficiency and longevity.

Heat loss represents the primary concern for buried heating mains and hot water distribution networks. Soil acts as an effective heat sink, continuously drawing thermal energy from unprotected pipework. This phenomenon becomes particularly pronounced in district heating applications, where distribution losses can account for up to 30% of total system output without adequate lagging. The economic implications prove substantial—wasted energy translates directly into elevated operational costs and increased carbon emissions.

Condensation presents another critical issue, though often overlooked during specification. When cold water services traverse warmer soil strata, moisture vapour condenses on pipe surfaces, creating conditions conducive to corrosion and biological growth. The interstitial dampness can also migrate through inadequately sealed insulation materials, degrading thermal performance and accelerating material breakdown.

Frost protection demands particular attention in shallow trench installations. Whilst deeper excavations naturally benefit from geothermal stability, services laid at nominal cover depths remain vulnerable to freezing during prolonged cold snaps. Ice formation within pipework causes catastrophic failures—burst pipes, service interruptions, and costly emergency repairs. Even a single freeze event can necessitate extensive excavation works and replacement of damaged sections.

Key Requirements — Waterproof, Compressive Strength, Soil-Resistant

Selecting appropriate below ground pipe insulation demands rigorous consideration of environmental stressors absent in conventional applications. The material specification must address three fundamental performance criteria to ensure longevity and maintained thermal efficiency.

Waterproofing stands paramount amongst selection criteria. Unlike atmospheric installations where vapour barriers provide adequate protection, buried pipe lagging must withstand permanent submersion in groundwater whilst maintaining cellular integrity. Closed-cell elastomeric materials excel in this application, their molecular structure inherently resistant to moisture ingress. Alternative materials require robust external jacketing systems—typically comprising polyethylene sheaths or reinforced aluminium laminates—to achieve comparable protection levels.

Compressive strength determines whether insulation maintains its dimensional stability under overburden pressures. Soil loading, vehicular trafficking above shallow services, and settlement stresses impose significant mechanical forces. Materials lacking adequate compressive resistance collapse, creating thermal bridges and compromising the installation's efficacy. Specification sheets should clearly indicate load-bearing capacities, typically expressed in kilopascals (kPa), with minimum thresholds varying according to installation depth and surface loading expectations.

Soil resistance encompasses chemical stability and resistance to biological degradation. Subterranean environments harbour aggressive chemical species—sulphates, chlorides, and organic acids—that attack susceptible materials. Microbial action further accelerates deterioration in organic-based insulation products. Premium underground insulation formulations incorporate biocides and demonstrate inertness to common soil contaminants, ensuring performance longevity matching the design life of the pipework itself.

Types of Underground Insulation

The market offers diverse solutions for buried services, each optimised for specific applications, pipe dimensions, and operational parameters. Understanding these distinctions enables specification of the most technically and economically appropriate system.

Pre-Insulated Pipe Systems for District Heating

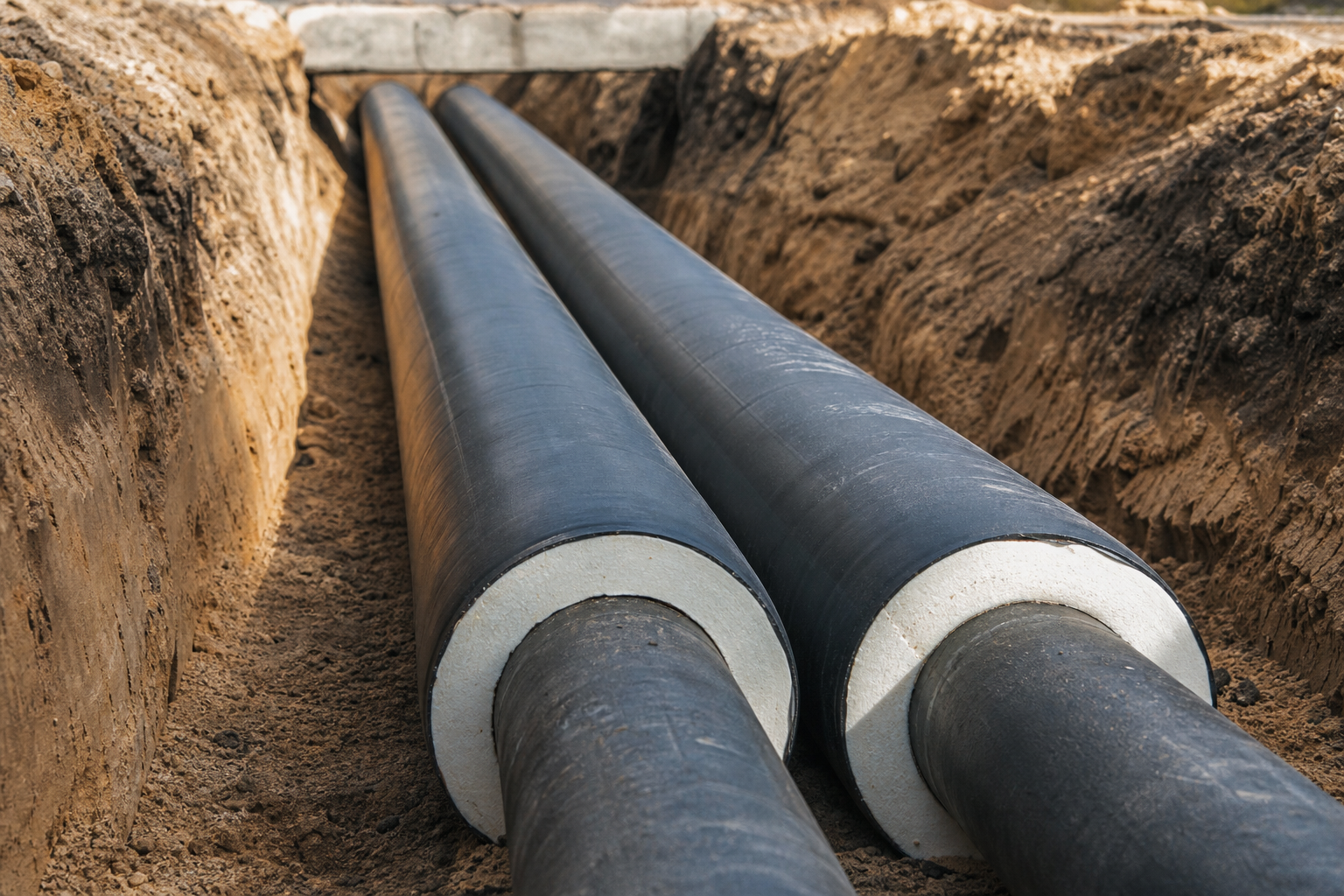

Pre-insulated district heating pipework represents the gold standard for large-scale thermal distribution networks. These sophisticated systems comprise a carrier pipe (steel or polymer), polyurethane foam insulation, and an external high-density polyethylene (HDPE) casing, all manufactured as an integrated assembly under controlled factory conditions.

The polyurethane core delivers exceptional thermal performance, with lambda values typically ranging from 0.023 to 0.027 W/mK. This superior insulation efficiency minimises distribution losses even across extended network runs. The HDPE jacket provides absolute moisture protection whilst accommodating thermal expansion through flexible joint assemblies. Many systems incorporate integral leak detection—fine wires embedded within the insulation layer that signal moisture ingress, enabling rapid fault location before significant damage occurs.

Installation simplicity constitutes another significant advantage. Pre-fabricated bends, tees, and reducers eliminate on-site insulation works, accelerating project delivery whilst ensuring consistent quality. Welded or mechanical joints between sections, when properly executed, create continuous waterproof envelopes that perform reliably for decades.

Armaflex Tuffcoat for Smaller Bore Pipes

For smaller diameter installations—typically up to 100mm—flexible elastomeric insulation with reinforced external coatings offers an economical and practical solution. Armaflex Tuffcoat exemplifies this category, combining the proven thermal and moisture-resistant properties of closed-cell nitrile rubber with a tough protective outer layer.

The Tuffcoat finish provides enhanced durability against abrasion during installation and resistance to soil chemicals. Unlike standard Armaflex materials, which require additional protective measures underground, Tuffcoat's integral jacketing simplifies installation whilst maintaining the material's inherent flexibility. This characteristic proves invaluable when negotiating obstacles or accommodating building settlements.

Application extends beyond simple straight runs. Pre-formed elbows, tees, and valve covers enable complete system insulation, eliminating thermal bridges at fittings—a common weakness in field-applied systems. Proper joint sealing using compatible adhesives and tapes remains critical, as any breach in the closed-cell structure provides pathways for moisture penetration.

Mineral Wool with Waterproof Cladding for Larger Pipes

Larger bore pipework, particularly in commercial and industrial contexts, frequently employs mineral wool insulation protected by robust external cladding systems. Rockwool pipe sections offer excellent thermal performance, fire resistance, and acoustic dampening—properties valuable even in underground applications where fire safety might seem irrelevant but remains pertinent at building penetrations.

The hygroscopic nature of mineral fibres necessitates comprehensive waterproofing. Multi-layer cladding systems typically comprise a vapour barrier against the insulation, followed by mechanical protection (aluminium or stainless steel sheet), with all joints sealed using weatherproof tapes and mastics. Some specifications employ heat-shrink sleeves or cold-applied wrapping systems to create seamless moisture barriers.

This approach suits scenarios requiring substantial insulation thicknesses or where extreme temperature differentials exist. The material's dimensional stability under compression makes it suitable for deeper installations subjected to significant overburden pressures. However, installation complexity and labour intensity render this solution less economical for smaller projects.

Trench Depth Recommendations for Frost Protection in the UK

British climatic conditions generally prove moderate compared to continental extremes, yet frost penetration depths warrant consideration during design phases. Ground frost rarely exceeds 450mm depth in the UK, though localised variations occur based on soil type, drainage characteristics, and exposure.

Sandy, freely-draining soils permit deeper frost penetration than clay-based substrates retaining moisture and benefiting from latent heat release during freezing. Services beneath paved areas or building footprints enjoy thermal buffering absent in open ground installations. Consequently, site-specific assessment should inform final depth determinations rather than blanket application of generic standards.

Shallow installations, whilst reducing excavation costs, demand enhanced insulation specifications. Increasing lagging thickness compensates for reduced soil cover, maintaining surface temperatures above freezing thresholds. Economic modelling should balance excavation expenses against insulation costs to identify optimal solutions.

How to Seal Joints Underground — Critical to Prevent Water Ingress

The most meticulously specified insulation system fails catastrophically if joint sealing receives inadequate attention. Discontinuities at pipe joints, fittings, and penetrations create vulnerabilities where moisture infiltrates, saturating insulation and negating thermal performance. Underground applications tolerate no margin for error—once backfilled, remedial access proves prohibitively expensive.

Elastomeric insulation systems demand comprehensive adhesive bonding at all longitudinal and circumferential joints. Premium contact adhesives formulated specifically for underground use create vulcanised bonds that resist moisture, soil chemicals, and thermal cycling. Application technique matters considerably: both mating surfaces require coating, partial drying before assembly ensures optimal molecular bonding, and sufficient contact pressure during curing establishes continuous seals.

Self-amalgamating tape provides secondary protection at critical junctions. These specialized tapes fuse into homogeneous masses when stretched and overlapped, creating waterproof barriers without adhesives. Wrapping valve bodies, flanges, and complex geometries with multiple tape layers—each overlapping by at least 50%—establishes robust moisture exclusion. Some specifications mandate heat-shrink sleeves over taped sections, applying radiant heat to activate shrinkage and compression.

Pre-insulated systems employ different jointing methodologies. Heat-shrink casing sleeves designed for specific pipe diameters slide over completed carrier pipe joints, then shrink under torch application to form tight seals against both the outer casing and internal insulation. These sleeves incorporate hot-melt adhesive linings that flow and seal upon heating, creating utterly waterproof transitions. Mechanical joint systems utilizing rubber gaskets and stainless steel clamps offer alternative solutions, particularly advantageous in confined excavations where heat application proves impractical.

Documentation of joint completion ensures quality assurance. Photographic records before backfilling provide verification that specified procedures received adherence. Progressive inspection regimes, where authorities or clients witness critical sealing operations before permitting burial, represent best practice on substantial installations.

Inspection Chambers and Access Points

Buried pipework installations require strategic access provisions for maintenance, monitoring, and emergency interventions. Inspection chambers positioned at valve locations, direction changes, and regular intervals along extended runs facilitate operational management without wholesale excavation.

Chamber design must accommodate insulated pipe dimensions whilst providing adequate working space for valve operation and maintenance activities. Precast concrete rings or polymer chambers offer durable construction resisting groundwater infiltration and structural loading. Internal dimensions should permit personnel access where manual valve operation becomes necessary, though remote actuator systems increasingly eliminate this requirement.

Insulation continuity through chamber walls presents technical challenges. Proprietary wall penetration systems comprising split insulation sections, compression gaskets, and external sealing collars maintain thermal performance whilst accommodating differential movement. The chamber's internal environment—typically warmer and drier than surrounding soil—permits use of standard above-ground insulation materials for exposed pipework sections, simplifying maintenance access.

Drainage provisions prevent water accumulation within chambers. Sump formations with pumped discharge or gravity drainage to suitable outfalls keep working areas dry. Some specifications incorporate alarm systems signalling excessive water ingress, indicating potential pipe leakage or chamber seal failure requiring investigation.

Above-ground marker posts or surface-mounted access covers enable rapid location of buried infrastructure. Color-coded identification systems—standardized across utilities industries—communicate service type, reducing excavation risks during subsequent construction activities. Geographic positioning coordinates documented in asset registers facilitate precise location using surveying equipment.

Building Regulations and CIBSE Guidance for Buried Services

Regulatory compliance forms a non-negotiable aspect of underground pipe insulation specification and installation. Multiple regulatory frameworks intersect, each addressing different performance aspects and creating comprehensive requirements governing buried services.

Building Regulations Part L mandates energy efficiency standards for building services, including distribution pipework. The regulations stipulate maximum permissible heat losses from heating and hot water systems, driving insulation thickness calculations. Compliance demonstration typically employs calculation methodologies outlined in CIBSE guides or manufacturer-provided thermal modelling software. Non-compliance risks enforcement action, project delays, and financial penalties.

CIBSE Guide B addresses heating, ventilating, air conditioning, and refrigeration, providing detailed technical guidance on pipe sizing, insulation specification, and system design. Section references specific to underground installations cover frost protection depths, insulation materials selection, and heat loss calculations accounting for soil thermal conductivity. Professional engineers routinely cite CIBSE publications when preparing specifications, establishing industry-standard approaches recognized by building control authorities.

Water Supply (Water Fittings) Regulations impose requirements preventing contamination, waste, and misuse of water supplies. Provisions addressing underground pipework emphasize frost protection, appropriate materials selection, and installation practices preventing contamination ingress. Water undertakers enforce these regulations, possessing powers to inspect installations and mandate corrections where deficiencies exist.

Construction Design and Management (CDM) Regulations address health and safety throughout project lifecycles. Underground works present specific hazards—trench collapse, utility strikes, confined spaces, and manual handling issues. Principal designers must identify risks and specify control measures, whilst contractors implement safe systems of work. Insulation selection occasionally reflects CDM considerations, with lighter materials or pre-fabricated assemblies reducing manual handling injuries.

Links to Outdoor/Underground Pipe Insulation Products

Specifying appropriate materials demands access to comprehensive technical information and reliable suppliers stocking premium products. PipeLagging.com maintains extensive inventories of specialist underground pipe insulation solutions suitable for diverse applications and operational requirements.

Our range encompasses Armacell's complete portfolio of elastomeric insulation products, including Armaflex Tuffcoat specifically engineered for below ground applications. These closed-cell materials deliver exceptional moisture resistance and thermal performance in the demanding subterranean environment. Technical datasheets provide lambda values, temperature ratings, and installation guidance ensuring compliant, durable installations.

Rockwool pipe sections in various densities and thermal conductivities suit larger bore installations requiring substantial insulation thicknesses. When combined with appropriate cladding systems and vapour barriers available through our accessories range, these mineral wool products create robust solutions for industrial and commercial buried services. Kingspan's phenolic insulation offerings provide ultra-thin, high-performance alternatives where excavation depth limitations constrain insulation thickness.

Pre-insulated pipe systems for district heating applications connect specifiers with manufacturer-approved distributors through our technical advisory service. Our team provides specification support, thermal calculations, and product recommendations tailored to specific project parameters—pipe diameters, operating temperatures, burial depths, and site conditions.

Comprehensive accessory ranges ensure complete system solutions. Jointing adhesives, self-amalgamating tapes, heat-shrink sleeves, cladding materials, and weatherproof sealants—all compatibility-tested with primary insulation products—enable single-source procurement. This approach simplifies project management whilst ensuring material compatibility and warranty protection.

Whether addressing small-bore domestic installations or extensive district heating networks, selecting appropriate underground pipe insulation protects investments, ensures regulatory compliance, and delivers sustained energy efficiency. The subterranean environment demands specialized materials and meticulous installation practices, but proper specification yields decades of reliable, efficient service from buried pipework systems.
