How to Keep Pipes from Freezing Without Heat

When temperatures plummet below freezing, unprotected water pipes face catastrophic failure. The expansion of frozen water generates tremendous hydraulic pressure—exceeding 2,000 pounds per square inch—capable of rupturing even robust copper or steel conduits. For mechanical contractors, facilities managers, and homeowners alike, implementing robust pipe insulation frost protection strategies becomes paramount to preventing costly damage and service interruptions.

Understanding the mechanisms of freeze damage and deploying appropriate thermal barriers ensures continuous operation throughout the harshest winter conditions. This comprehensive guide explores proven methodologies for safeguarding pipework when conventional heating systems are unavailable or impractical.

Understanding Freeze Risk in Unheated Environments

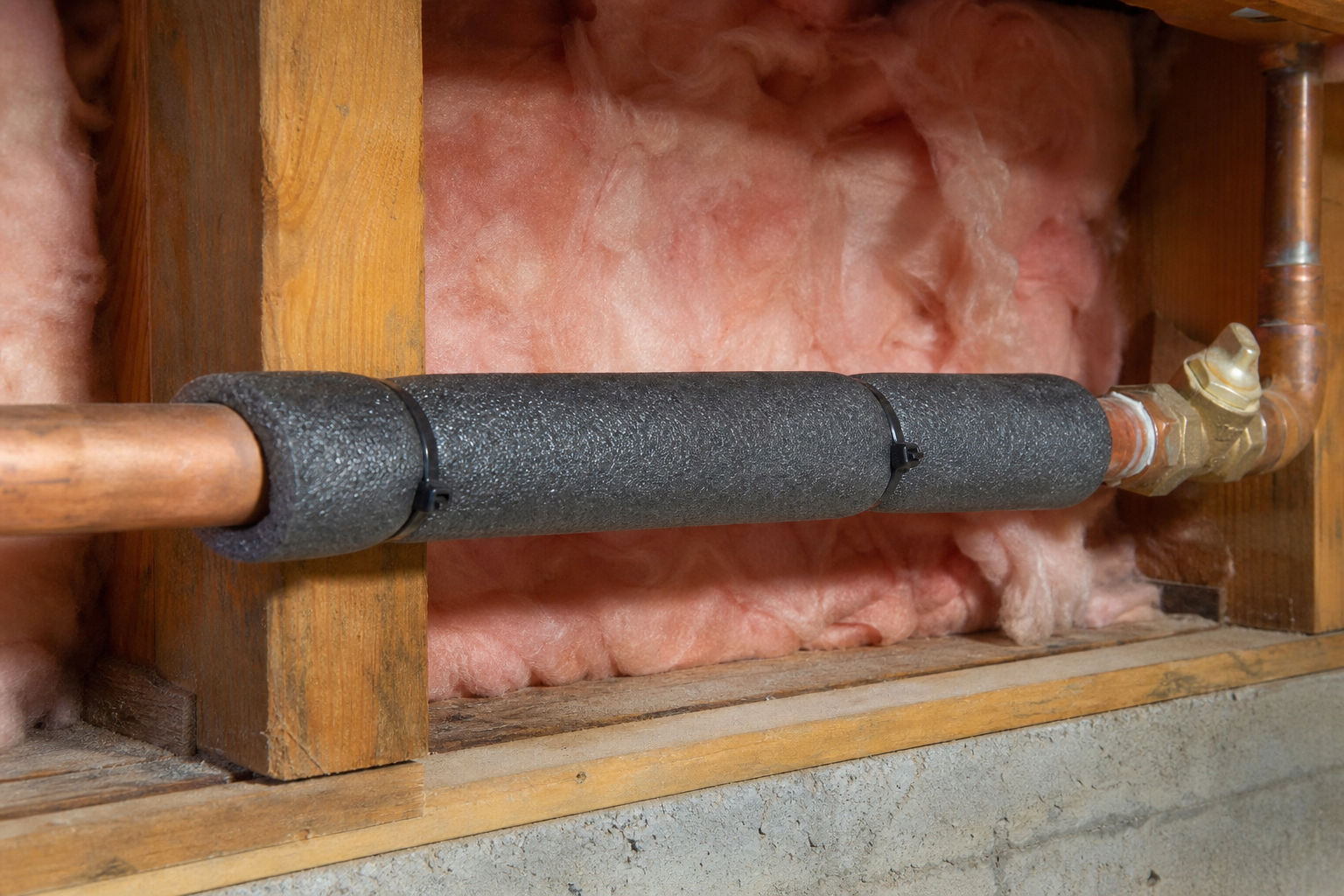

Pipes situated in unheated spaces—such as loft conversions, garages, external walls, and basement areas—remain perpetually vulnerable to ambient temperature fluctuations. The critical threshold occurs when sustained temperatures drop below 0°C, initiating ice crystal formation within stagnant water columns.

The freeze propagation rate depends upon multiple variables: pipe material thermal conductivity, fluid velocity, ambient air movement, and insulation efficacy. Copper pipes, with their superior thermal conductivity of 401 W/m·K, transfer heat rapidly to surrounding cold air. Conversely, plastic pipes possess lower conductivity but can become brittle under extreme cold.

Static water in seldom-used sections presents the greatest vulnerability. Without flowing water to distribute residual heat, these segments freeze within hours of exposure to sub-zero conditions. External pipes face additional challenges from wind chill effects and radiant heat loss to clear night skies.

High-Performance Insulation Materials for Frost Protection

Selecting appropriate lagging materials represents the cornerstone of effective frost protection. Modern technical insulation products offer varying thermal resistance values, moisture handling characteristics, and installation considerations.

Closed-Cell Elastomeric Insulation

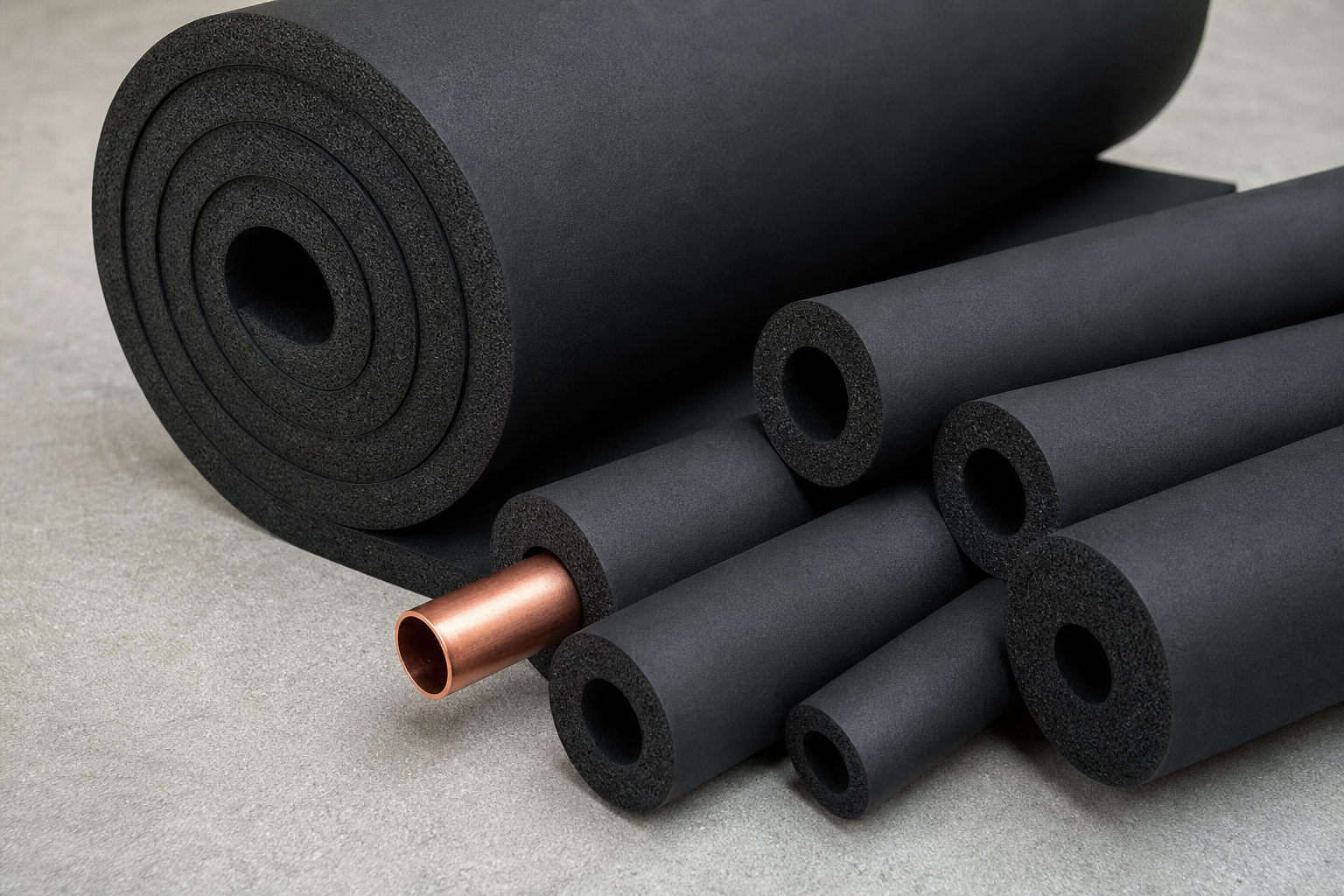

Armaflex pipe insulation exemplifies premium closed-cell elastomeric technology, featuring exceptional thermal efficiency combined with inherent moisture vapour resistance. The closed-cell structure prevents water ingress, eliminating the degradation common with open-cell alternatives. With thermal conductivity as low as 0.033 W/m·K, elastomeric materials provide superior R-values per unit thickness.

This flexibility facilitates installation around complex pipework configurations, including bends, valves, and tees. The self-sealing properties ensure consistent thermal barriers when properly joined with compatible adhesives. For frost protection applications, minimum thickness recommendations typically range from 19mm to 32mm, depending upon pipe diameter and exposure severity.

Mineral Wool Pipe Sections

Rocklap pipe sections manufactured from stone wool deliver robust thermal performance whilst offering fire resistance benefits. These pre-formed shells accommodate standard pipe diameters and provide thermal conductivity around 0.035 W/m·K. The semi-rigid construction maintains integrity under mechanical stress, making them suitable for accessible locations requiring periodic maintenance access.

However, mineral wool's hygroscopic nature necessitates protective jacketing in damp environments. PVC cladding or aluminium facings prevent moisture accumulation that would otherwise compromise insulation effectiveness. This dual-layer approach proves invaluable for outdoor pipe insulation installations exposed to precipitation.

Phenolic Foam Systems

Phenolic insulation offers the lowest thermal conductivity available—approximately 0.018 W/m·K—enabling thinner profiles whilst maintaining equivalent thermal performance. This space-saving characteristic proves advantageous in confined installations where dimensional constraints limit traditional insulation thickness. The rigid cellular structure requires careful handling during installation to prevent edge damage.

Installation Methodologies for Maximum Protection

Proper installation technique determines whether specified materials achieve their theoretical performance values. Thermal bridging through gaps, compression damage, and inadequate jointing undermine even premium products.

Comprehensive Coverage Requirements

Every millimetre of exposed pipe requires continuous insulation coverage. Particular attention must focus on vulnerable junctions:

• Valve bodies and actuators requiring custom-fabricated covers
• Flanged connections demanding removable insulation sections
• Pipe supports where metallic brackets create thermal bridges
• Wall penetrations where air infiltration bypasses insulation

Specialist insulation accessories, including pre-formed elbow sections and tee pieces, eliminate gaps at directional changes. Support brackets should incorporate thermal breaks—typically phenolic or hardwood inserts—to interrupt conductive heat loss pathways.

Sealing and Vapour Barriers

Longitudinal seams and butt joints demand meticulous sealing to prevent moisture ingress and thermal short-circuiting. Compatible contact adhesives create permanent bonds in elastomeric systems, whilst aluminium foil tape serves mineral wool applications. Overlapping joints by 50mm minimum ensures continuous coverage despite material movement during thermal cycling.

External weatherproofing becomes critical for outdoor installations. UV-resistant PVC cladding, powder-coated aluminium sheeting, or stainless steel jacketing protect underlying insulation from environmental degradation whilst providing mechanical abuse resistance.

Supplementary Frost Protection Strategies

Insulation alone may prove insufficient in extreme exposure scenarios. Complementary protective measures enhance system resilience.

Trace Heating Integration

Electric trace heating cables applied beneath insulation provide active freeze protection for critical services. Self-regulating cables automatically modulate output based on ambient temperature, optimising energy consumption whilst maintaining positive temperatures. This approach suits infrequently used pipes where draining proves impractical.

Installation requires cable routing along the pipe's underside—the coldest point—secured with aluminium tape before insulation application. Thermostat control typically activates at 3°C, energising the circuit before freezing conditions develop.

Air Sealing and Draft Elimination

Convective heat loss accelerates freezing in draughty environments. Sealing access hatches, wall penetrations, and ventilation openings reduces cold air infiltration around vulnerable pipework. Expanding foam sealants, draught-excluding brushes, and weatherstripping curtail air movement without compromising necessary ventilation for combustion appliances.

Maintaining System Integrity Throughout Winter

Proactive maintenance preserves frost protection effectiveness across multiple heating seasons. Annual inspections should assess insulation condition, identifying compression damage, moisture contamination, or physical deterioration requiring remediation.

Particular scrutiny applies to outdoor pipe insulation subjected to weathering cycles. UV degradation of protective jacketing, mechanical damage from vegetation or debris, and water pooling at low points all compromise thermal performance. Timely repairs prevent cascade failures during critical cold snaps.

Calculating Required Insulation Thickness

Determining adequate insulation dimensions involves calculating heat loss rates against anticipated minimum temperatures. Professional guidance ensures compliance with British Standards whilst optimising material specifications.

These baseline recommendations assume elastomeric or mineral wool products with thermal conductivity around 0.035 W/m·K. Phenolic systems permit thickness reductions of approximately 40% whilst maintaining equivalent thermal resistance.

Addressing Common Installation Challenges

Building services professionals frequently encounter scenarios complicating standard installation approaches. Creative problem-solving ensures comprehensive protection despite spatial or structural constraints.

Pipes within cavity walls present accessibility difficulties. Specialised slim-profile insulation materials accommodate restricted spaces, though achieving continuous coverage demands careful coordination during construction phases. Retrospective protection may require endoscopic installation techniques or cavity foam injection.

Historic buildings with heritage constraints limit visible modifications. Discreet internal insulation using flexible sheet materials wrapped around pipework preserves aesthetic considerations whilst providing essential thermal barriers. Coordination with conservation authorities ensures compliance with preservation requirements.

Is Pipe Insulation Sufficient Without Any Heating?

This question concerns many facilities managers overseeing seasonal buildings or unoccupied properties. Insulation functions by retarding heat transfer, not generating warmth. In completely unheated environments experiencing prolonged sub-zero temperatures, insulation delays rather than prevents freezing.

The protective duration depends upon initial water temperature, insulation thickness and quality, pipe diameter, and ambient temperature severity. A well-insulated 22mm copper pipe containing water at 10°C might resist freezing for 8-12 hours at -5°C, versus mere minutes for bare pipework. However, sustained cold eventually overcomes thermal resistance.

For extended unoccupied periods, combining maximum-thickness insulation with complete system drainage provides absolute protection. Alternatively, trace heating integration maintains positive temperatures indefinitely with minimal energy consumption.
