ArmaFlex Ultima Self-Seal Pipe Insulation Low Smoke B(L)-s1,d0

ArmaFlex Ultima Self-Seal Pipe Insulation — Sold by the Box

Prices shown are per full box. Select your pipe size and wall thickness to see the box price and number of 2m lengths included.

ArmaFlex Ultima is supplied to order and additional lead time may apply. Contact us before ordering if you have a critical programme date.

ArmaFlex Ultima Self-Seal is Armacell's low-smoke, closed-cell flexible elastomeric pipe insulation for HVAC, refrigeration and process applications where enhanced fire performance is required. Based on ArmaPrene technology, Ultima produces approximately 10 times less smoke than a standard elastomeric product and self-adhesive tubes achieve a B(L)-s1,d0 reaction-to-fire classification.

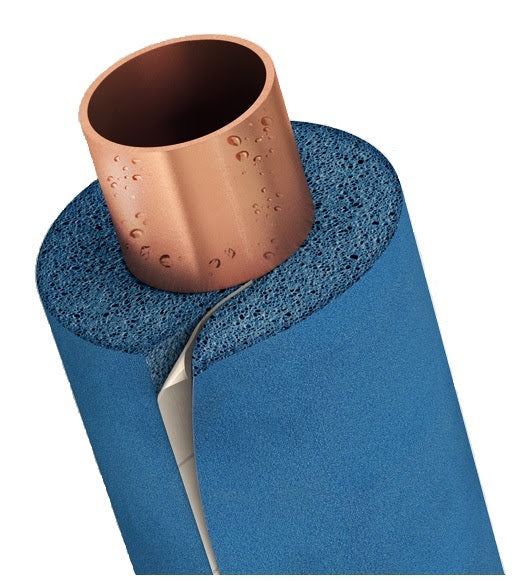

Each 2m tube is pre-slit with a factory-applied pressure-sensitive self-adhesive longitudinal closure. Armacell specifies that self-adhesive tubes should additionally be secured with ArmaFlex Ultima tape. For bonded joints and fabricated sections, ArmaFlex Ultima ECO550 and ArmaFlex Ultima 700 are the certified adhesives for this system.

Technical Specification

• Material: Closed-cell flexible elastomeric foam (FEF) to EN 14304
• Self-adhesive tube service temperature: −50°C to +85°C
• Thermal conductivity: λ ≤ 0.040 W/(m·K) at 0°C
• Water vapour diffusion resistance: μ ≥ 7,000
• Reaction to fire: B(L)-s1,d0 for tubes and self-adhesive tubes
• Practical fire behaviour: self-extinguishing, non-dripping and non-flame-spreading, with very low smoke density
• Self-adhesive shelf life: 1 year under the manufacturer's stated storage conditions
• Length: 2m per piece, pre-slit with factory self-adhesive longitudinal closure
• Colour: dark blue
• Approvals include FM approval and IMO fire-performance certification
• UV protection is required for outdoor exposure
• View the Armacell UK product page

Certified Adhesives & Tape

• ArmaFlex Ultima ECO550 Adhesive with ECO550 Activator
• ArmaFlex Ultima 700 — contact us to order
• ArmaFlex Ultima Tape / UD Tape — for additional securing of self-adhesive tubes and compatible joint sealing

Why Specify ArmaFlex Ultima?

ArmaFlex Ultima combines thermal insulation and condensation control with very low smoke performance. Its B(L)-s1,d0 tube classification makes it particularly suited to specification-led building-services installations where smoke generation during a fire is an important design consideration.

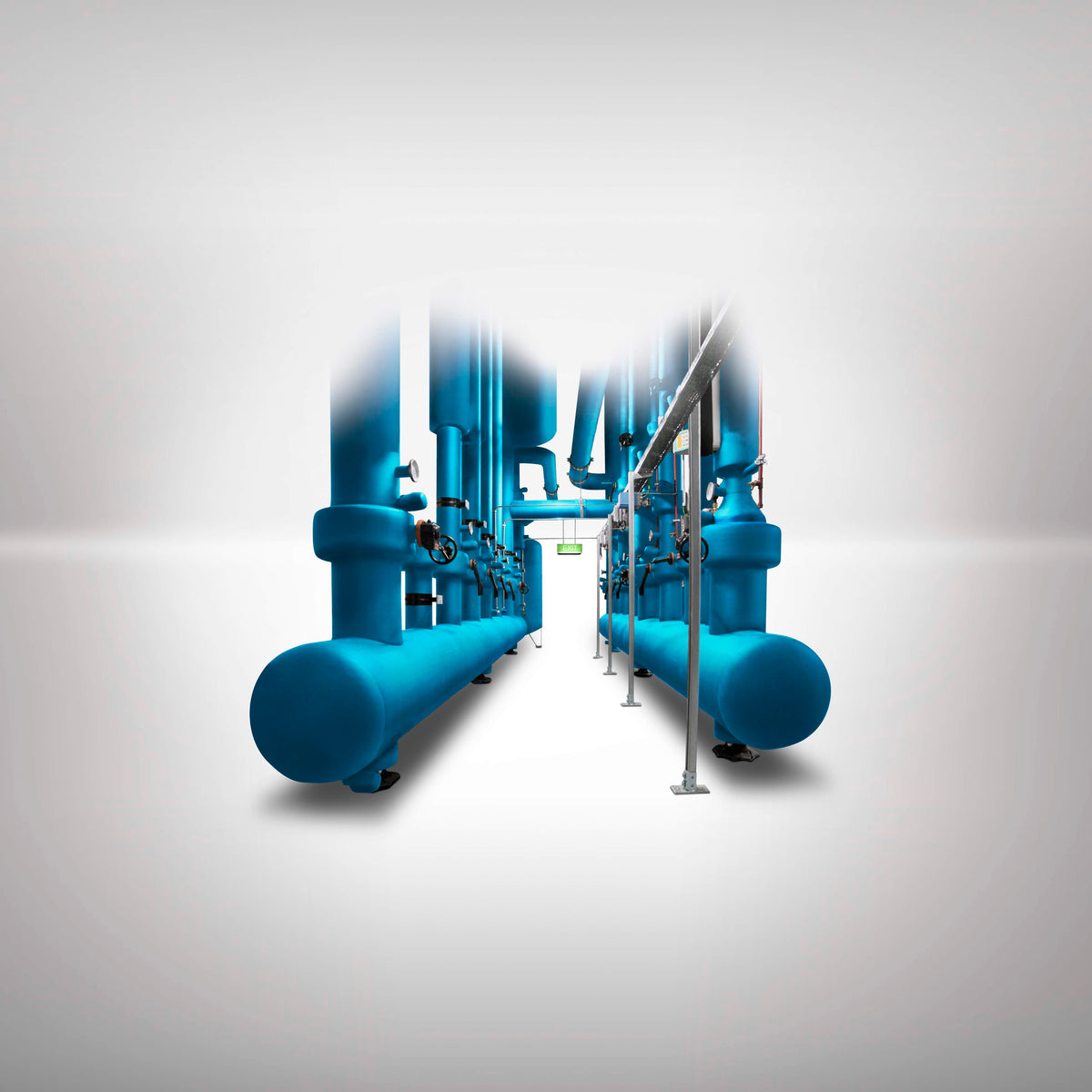

Suitable Applications

• Chilled-water pipework and condensation control
• HVAC and air-conditioning systems
• Refrigeration pipework
• Heating pipework within the +85°C maximum for the self-adhesive version
• Commercial, marine and other specification-led installations

Ordering & Lead Times

This product is sold in full manufacturer box quantities and supplied to order. Some size combinations are manufacturer make-to-order. If the size you require is not shown, or your project has a fixed programme date, contact us so we can confirm availability and lead time.

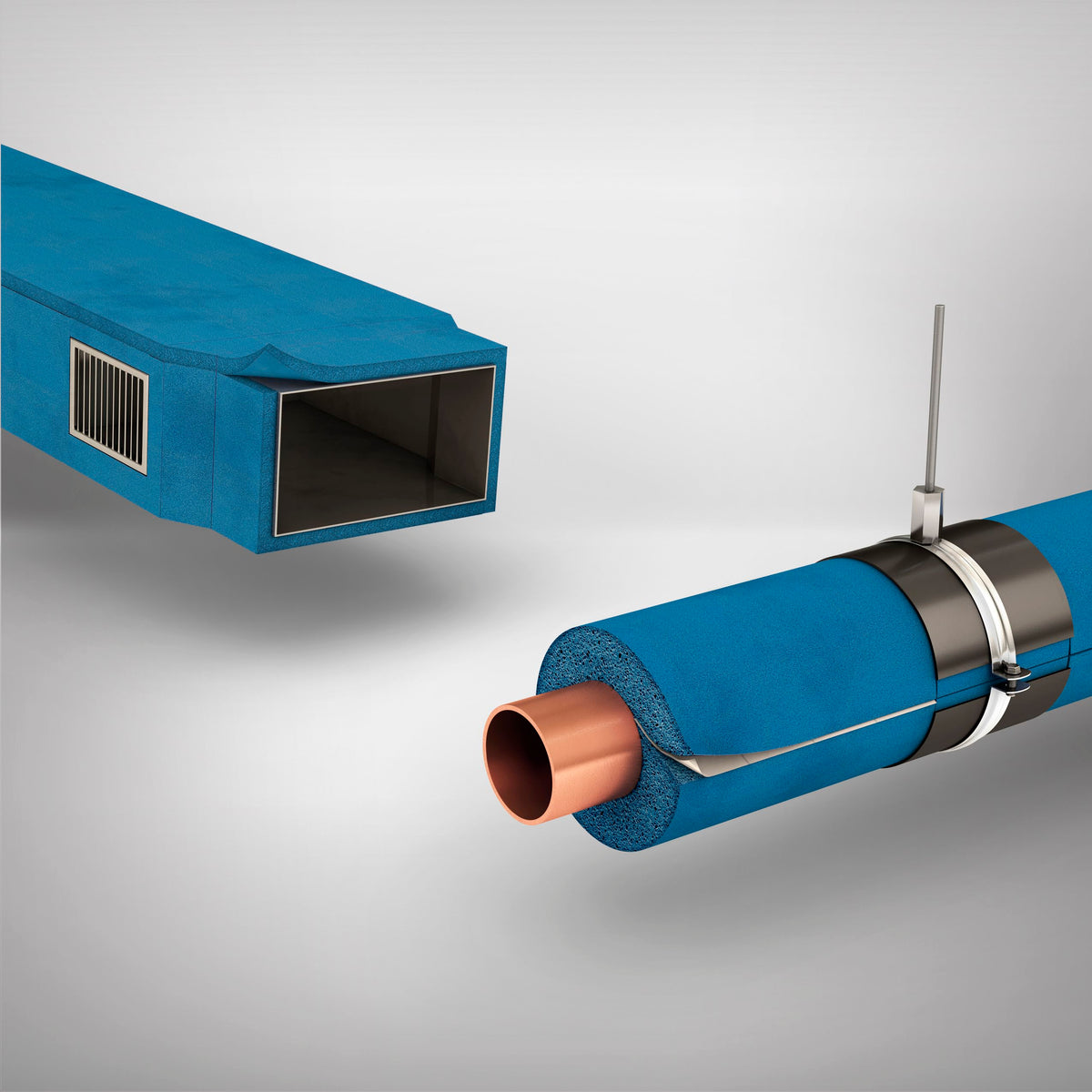

Installation

Open the pre-slit tube, locate it over the pipe and press the factory self-adhesive seam firmly closed. Armacell specifies additional securing of self-adhesive tubes with ArmaFlex Ultima tape. For bonded joints and fabricated sections, use ArmaFlex Ultima ECO550 or ArmaFlex Ultima 700 in accordance with Armacell installation guidance.
