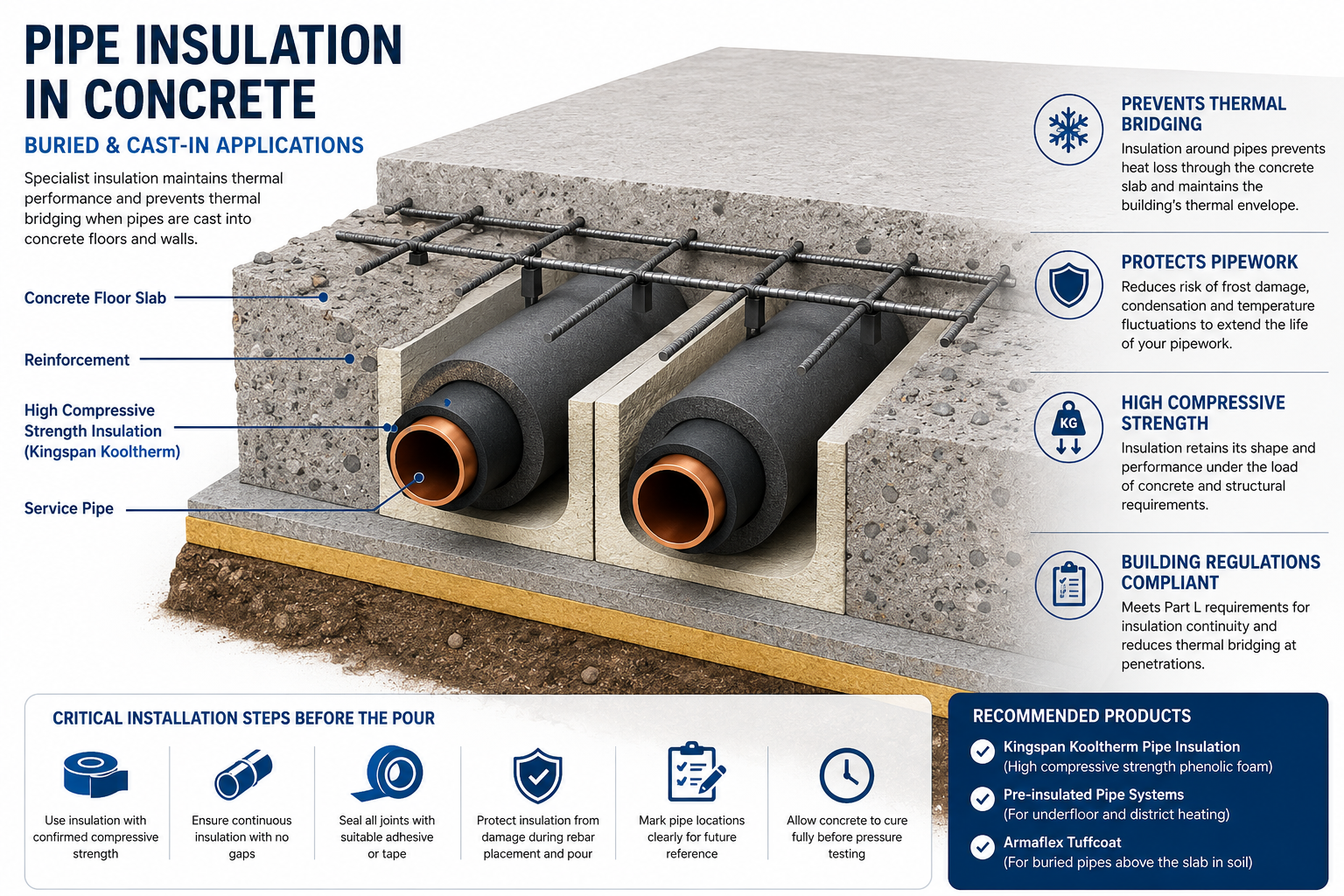

Pipes cast into concrete floors, walls or buried beneath floor slabs present a unique insulation challenge. Standard pipe insulation is designed for open air installation — it cannot withstand the compressive loads of concrete without crushing and losing its thermal performance.
Getting this right before the pour is critical. Once concrete is set, there is no remediation without breaking out the slab.
Why Pipes in Concrete Need Insulation
Thermal bridging is the primary concern. An uninsulated pipe passing through a concrete slab creates a direct thermal bridge — heat flows along the pipe and into the surrounding concrete, bypassing the building's insulation envelope entirely.
This leads to:
- Significant heat loss from hot water and heating pipes
- Condensation risk on cold water pipes where they exit the slab
- Potential for frost damage where pipes pass through unheated ground floor slabs
Compressive Strength Requirements
Standard Armaflex and mineral wool pipe insulation will crush under the weight of a concrete pour. For cast-in applications you need insulation with sufficient compressive strength to maintain its shape and thermal performance under load.
Suitable products include:
- Phenolic foam pipe insulation (Kingspan Kooltherm) — high compressive strength, excellent lambda value, suitable for cast-in applications
- Pre-insulated pipe systems — factory-insulated pipe with a rigid outer casing, used for district heating and underfloor distribution
- Rigid foam sections — where compressive strength is specified, check the product data sheet for compressive strength rating (typically expressed in kPa)
Installation Before the Pour — Critical Steps
- Select insulation with confirmed compressive strength for the expected load
- Ensure insulation is continuous — no gaps where the pipe enters or exits the slab
- Seal all joints with appropriate adhesive or tape before pouring
- Protect the insulation from damage during reinforcement placement and pour
- Mark pipe locations clearly on formwork drawings for future reference
- Allow concrete to cure fully before pressure testing pipework
Thermal Bridging at Slab Penetrations
Where pipes exit a concrete slab into open air, the transition point is a thermal bridge risk. Use a pipe penetration seal or wrap additional insulation around the pipe at the point of exit, extending at least 300mm above and below the slab surface.
Building Regulations
Part L of the Building Regulations requires continuity of insulation at all pipe penetrations through the building fabric. Your building control officer or SAP assessor will check for thermal bridging at slab penetrations on new build projects.
Products We Recommend
- Kingspan Kooltherm Pipe Insulation — high compressive strength phenolic foam
- Pre-insulated pipe systems for district heating and underfloor distribution
- Armaflex Tuffcoat for buried pipes above the slab in soil
