Pipe Insulation Guide

What Pipe Insulation Is and Why It Matters

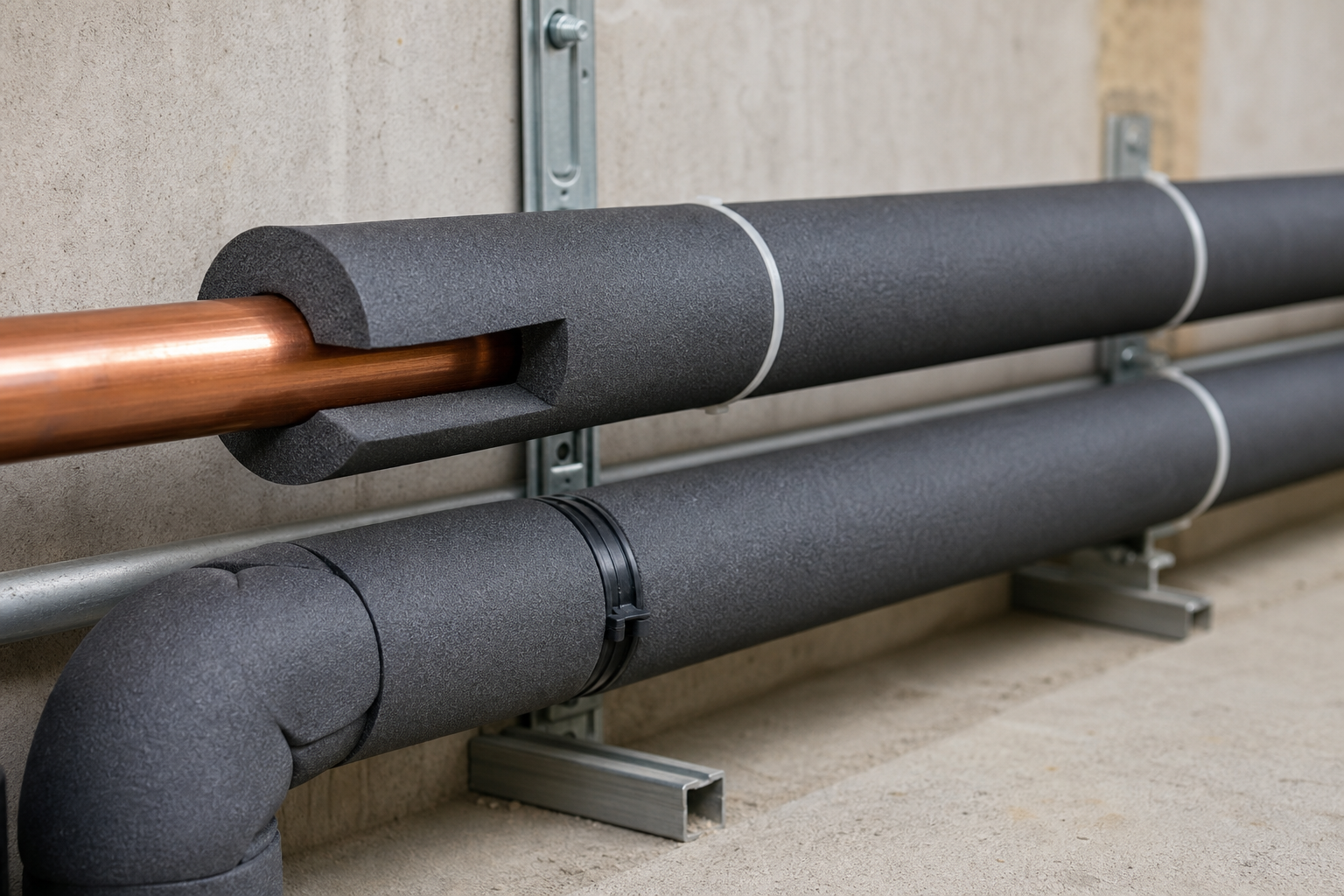

Pipe insulation, commonly referred to as pipe lagging, constitutes a protective barrier installed around pipework to regulate thermal transfer and prevent environmental damage. This seemingly modest intervention delivers profound implications for energy efficiency, structural integrity, and operational longevity across both domestic and commercial installations. Without adequate lagging, uninsulated pipework becomes a conduit for thermal haemorrhaging, where precious heat dissipates into surrounding spaces, inflating energy expenditure whilst compromising system performance.

Heat loss through exposed pipework represents one of the most insidious forms of energy wastage in building services. Hot water pipes traversing unheated spaces—lofts, basements, external walls—surrender their thermal content to ambient conditions, compelling boilers and heating systems to labour continuously to maintain desired temperatures. This perpetual cycle escalates fuel consumption and carbon emissions, creating an economic and environmental burden that proper insulation readily mitigates.

Condensation presents another critical challenge that pipe lagging addresses with remarkable efficacy. When chilled water or refrigerant lines operate below the dew point temperature of surrounding air, atmospheric moisture condenses upon pipe surfaces. These water droplets accumulate, potentially causing corrosion, microbial growth, ceiling staining, and structural deterioration. Quality insulation with integral vapour barriers intercepts this moisture before it reaches the pipe surface, preserving system integrity and maintaining hygienic conditions.

Frost protection constitutes a vital consideration within the UK climate, where seasonal temperature fluctuations routinely plunge below freezing. Unprotected water pipes in vulnerable locations face catastrophic failure when their contents freeze and expand, rupturing pipe walls and fittings. The resultant flooding and repair costs dwarf the modest investment required for preventative insulation. Proper lagging maintains pipe temperatures above critical thresholds, safeguarding installations throughout winter months and preventing costly emergency interventions.

Types of Pipe Insulation

The insulation marketplace offers diverse materials, each engineered for specific applications and performance parameters. Understanding these distinctions enables informed selection that optimises both functionality and value.

Foam Insulation (Armaflex)

Elastomeric foam insulation, exemplified by the renowned Armaflex range from Armacell, represents the predominant choice for HVAC and refrigeration applications. This closed-cell material exhibits exceptional resistance to moisture ingress, with inherent vapour barrier properties eliminating the need for supplementary jacketing in many installations. The cellular structure traps minuscule air pockets, creating formidable thermal resistance whilst maintaining remarkable flexibility.

Armaflex distinguishes itself through superior conformability, effortlessly accommodating complex pipework configurations, elbows, and valves without compromising insulation continuity. The material withstands temperatures ranging from -50°C to +110°C, making it versatile across chilled water systems, domestic hot water distribution, and air conditioning installations. Its self-extinguishing properties enhance fire safety credentials, whilst acoustic dampening characteristics reduce operational noise transmission.

Mineral Wool Insulation (Rockwool Rocklap)

Stone wool pipe sections, particularly Rockwool's Rocklap system, deliver unparalleled performance in high-temperature environments and fire-critical applications. Manufactured from volcanic rock spun into fibrous strands, these rigid sections withstand continuous exposure to temperatures exceeding 250°C, making them indispensable for steam lines, commercial heating mains, and industrial process pipework.

The non-combustible nature of stone wool provides inherent fire resistance, maintaining structural integrity during conflagrations and preventing flame spread along pipe runs. This characteristic proves particularly valuable in compartmentalised buildings where fire-stopping measures constitute regulatory imperatives. Rocklap sections incorporate pre-formed geometries matching standard pipe dimensions, facilitating rapid installation whilst ensuring comprehensive coverage. The material's density and composition also confer excellent acoustic attenuation properties.

Phenolic Insulation (Kingspan Kooltherm)

Phenolic foam insulation, epitomised by Kingspan's Kooltherm range, represents the apex of thermal efficiency where space constraints demand maximum performance from minimal thickness. This rigid foam achieves exceptionally low thermal conductivity values—often below 0.020 W/mK—enabling slimmer insulation profiles that deliver equivalent or superior performance compared to thicker conventional materials.

The closed-cell phenolic structure resists moisture penetration and dimensional change, maintaining insulation efficacy throughout extended service life. Temperature tolerance spans from -100°C to +120°C, accommodating most building services applications. Whilst typically more expensive per linear metre than alternative materials, phenolic insulation justifies its premium through space-saving benefits in congested plant rooms, risers, and ceiling voids where every millimetre holds value. The material's low flame spread and smoke emission characteristics enhance safety credentials in occupied buildings.

How to Choose the Right Insulation

Selecting appropriate pipe insulation demands careful evaluation of multiple interrelated factors. Temperature parameters, application environment, and dimensional compatibility collectively determine optimal material specification.

Temperature Considerations

Operating temperature constitutes the primary determinant in insulation selection. Elastomeric foam materials excel within the -50°C to +110°C spectrum, making them ideal for chilled water, refrigeration, potable water, and standard heating systems. Domestic hot water circuits typically operate between 60°C and 65°C, well within foam's comfort zone. Conversely, high-temperature applications—steam distribution, commercial heating mains, thermal fluid systems—necessitate mineral wool solutions capable of withstanding continuous exposure beyond 150°C without degradation or off-gassing.

Temperature differential between pipe contents and ambient conditions also influences thickness requirements. Greater differentials demand thicker insulation to achieve desired thermal performance. UK Building Regulations stipulate minimum insulation standards, yet optimal economic thickness often exceeds these baselines, particularly for systems operating continuously or traversing unconditioned spaces.

Application Environment

Installation location profoundly impacts material suitability. Internal pipework in dry, conditioned spaces affords maximum material choice flexibility. External installations or pipes in damp environments require materials with robust moisture resistance and weatherproof jacketing. Armaflex's inherent vapour barrier makes it particularly suitable for condensation-prone chilled water systems, whilst mineral wool requires supplementary vapour control layers and weather-resistant cladding for external exposure.

Underground applications demand insulation that withstands soil moisture, compressive loads, and potential chemical exposure. Refrigeration pipework requires materials specifically formulated to prevent vapour ingress at sub-zero temperatures. Fire compartmentation zones necessitate non-combustible materials that maintain integrity during fire conditions, making mineral wool the unequivocal choice.

Pipe Size Compatibility

Insulation products are manufactured to accommodate standard pipe dimensions, with internal bore sizes corresponding to nominal pipe diameters. Precise dimensional matching ensures snug fitment without compression or gaps that compromise thermal performance. Oversized insulation creates voids permitting convective air movement and moisture accumulation, whilst undersized materials cannot physically accommodate the pipework or require excessive force during installation, potentially damaging the insulation structure.

Wall thickness selection balances thermal performance against spatial constraints and economic considerations. Standard commercial thicknesses range from 9mm for minimal applications to 50mm or greater for demanding thermal duties. Regulatory compliance establishes minimum thresholds, yet enhanced thicknesses frequently deliver superior lifecycle value through reduced operational costs.

How to Measure Pipe Bore and Wall Thickness

Accurate dimensional assessment forms the foundation of successful insulation specification. Errors in measurement lead to material wastage, installation difficulties, and suboptimal performance.

Pipe bore refers to the internal diameter of the insulation tube, which must correspond to the external diameter of the pipe being insulated. For copper pipework, standard sizes follow metric designations—15mm, 22mm, 28mm, and so forth—representing the nominal outside diameter. Steel pipework typically follows nominal bore conventions, where a 50mm nominal bore pipe possesses an actual outside diameter of approximately 60.3mm. Always measure the actual external diameter using callipers or a pipe gauge rather than relying solely on nominal specifications, as wall thicknesses vary between pressure ratings and material schedules.

Wall thickness denotes the radial depth of insulation material surrounding the pipe. This dimension directly correlates with thermal resistance—thicker walls provide superior insulation but consume more space and material cost. Building Regulations Part L mandates minimum thicknesses based on pipe size, fluid temperature, and location. For heated pipework in unheated spaces, typical minimum requirements range from 25mm for small-bore pipes to 40mm for larger distribution mains. Refrigeration and chilled water applications often demand enhanced thicknesses to prevent condensation formation.

When measuring existing installations for replacement or upgrade, use a tape measure to determine the external diameter at several points along the pipe run, accounting for any corrosion, scale, or existing damaged insulation. Record the maximum measurement to ensure the new insulation accommodates any variations. For complex installations involving fittings, valves, and irregular geometries, photographic documentation assists in material requisitioning and installation planning.

Installation Tips

Proper installation technique determines whether specified insulation achieves its theoretical performance in practical service. Meticulous attention to detail during fitting separates adequate installations from exemplary ones.

Cutting Techniques

Clean, precise cuts ensure tight joints and continuous insulation coverage. For elastomeric foam materials like Armaflex, a sharp utility knife with a fresh blade produces optimal results. Score the material lightly on the first pass, then deepen the cut progressively rather than attempting to sever the insulation in a single motion. This technique prevents compression and tearing that creates irregular edges. Mineral wool sections require a fine-toothed saw to prevent fibrous crumbling and maintain dimensional accuracy.

Mitred joints at elbows and tees demand angular precision to eliminate gaps. Purpose-designed mitre boxes or templates ensure consistent 45-degree cuts for standard fittings. For complex geometries, create paper templates first, verifying fit before transferring patterns to insulation material. Always cut on a stable surface with adequate lighting to maintain accuracy and safety.

Adhesive Application

Contact adhesive bonds insulation seams, securing longitudinal joints and end-to-end connections. Apply adhesive sparingly to both mating surfaces using a brush or applicator, ensuring even coverage without excess that squeezes out during compression. Allow the adhesive to become touch-dry before joining surfaces—typically three to five minutes depending on ambient temperature and humidity. This flash-off period permits solvent evaporation, activating the adhesive's bonding properties.

Press joined surfaces firmly together, applying consistent pressure along the entire seam length. Avoid stretching or distorting the insulation during bonding, as this creates stress points and potential failure zones. For overhead installations, temporary support may be necessary whilst adhesive cures fully. Temperature significantly influences adhesive performance; cold conditions retard curing whilst excessive heat accelerates solvent evaporation, potentially compromising bond strength.

Self-Seal Versus Standard Materials

Self-seal insulation incorporates a factory-applied adhesive strip along the longitudinal seam, eliminating the need for separate contact adhesive during installation. This innovation accelerates fitting times and ensures consistent seam quality regardless of installer experience or site conditions. Simply remove the protective backing strip and press the seam closed for immediate bonding.

Standard materials offer greater flexibility for repositioning during fitting and may prove more economical for large-volume installations where labour costs remain competitive. However, self-seal variants reduce skill requirements and minimise installation variables, making them attractive for time-critical projects or locations where traditional adhesive application proves challenging.

Regardless of format, ensure all longitudinal seams face downward or sideways on horizontal runs to prevent moisture ingress. Stagger end-to-end joints between adjacent pipes to avoid creating thermal weak points. Secure insulation at regular intervals using appropriate clips, bands, or saddles to prevent sagging and maintain position throughout the system's service life.

UK Building Regulations Part L — Compliance Requirements

Building Regulations Part L (Conservation of Fuel and Power) establishes mandatory standards for thermal insulation of pipework in new construction and renovation projects. Compliance ensures energy efficiency, reduces carbon emissions, and optimises operational costs throughout a building's lifecycle.

The regulations differentiate between heating and hot water distribution systems based on pipe diameter and location. Pipework traversing unheated spaces requires more robust insulation than pipes within the heated building envelope. For heating and hot water pipes up to 40mm outside diameter in unheated spaces, minimum insulation thickness must equal the pipe diameter or 25mm, whichever is greater. Pipes exceeding 40mm diameter require insulation thickness equal to 30mm minimum.

Chilled water and refrigeration pipework demands particular attention to prevent condensation formation. Regulations stipulate that insulation systems must incorporate effective vapour barriers and achieve thermal resistance values sufficient to maintain surface temperatures above dew point under design conditions. This typically necessitates thicker insulation and specialised materials compared to heating applications.

Primary circulation pipework in domestic dwellings—the pipes connecting the hot water cylinder to taps and showers—must be insulated to minimum standards even when running through heated spaces. This requirement recognises that heat losses from distribution pipework constitute pure waste, as the thermal energy dissipates before reaching its intended destination. Enhanced insulation thicknesses beyond regulatory minimums frequently deliver attractive payback periods through reduced standing losses.

• All accessible pipework in new dwellings must be insulated to prescribed standards
• Renovation projects triggering controlled service provisions must upgrade pipework insulation
• Commercial buildings face stringent requirements for HVAC distribution systems
• Thermal bridging at supports and penetrations requires specific detailing to maintain insulation continuity
• Condensate drainage from insulated chilled systems must be accommodated without compromising vapour barriers

Demonstrating compliance requires specification documentation showing insulation materials, thicknesses, and installation methods. Building control officers may request thermal calculations proving that proposed insulation achieves required U-values or thermal resistance. Reputable insulation suppliers provide technical datasheets containing thermal conductivity values, enabling accurate performance calculations. Professional installers maintain photographic records of installations before concealment, providing evidence of compliant workmanship should queries arise during commissioning or certification.

Premium Pipe Insulation Solutions from Leading Manufacturers

Sourcing insulation from established manufacturers guarantees performance credentials, material consistency, and technical support throughout project lifecycles. PipeLagging.com curates comprehensive ranges from industry-leading brands, ensuring specifications meet exacting standards across diverse applications.

Armaflex Pipe Insulation Collection

The Armaflex portfolio encompasses elastomeric foam solutions for virtually every building services requirement. From self-seal tubes expediting installation to sheet material for bespoke fabrications, Armacell's products deliver proven performance in HVAC, refrigeration, and plumbing installations. Specialist variants address specific challenges—Armaflex Ultima offers enhanced fire performance for critical applications, whilst Armaflex Protect incorporates antimicrobial technology for healthcare and food processing environments.

Technical support resources include comprehensive installation guides, thermal calculation tools, and application-specific recommendations. The material's closed-cell structure and inherent flexibility make it the preferred choice for contractors seeking reliable condensation control and efficient installation across complex pipework configurations.

Rockwool Pipe Section Systems

Rockwool's stone wool insulation range addresses high-temperature duties and fire-critical installations where non-combustible materials constitute non-negotiable requirements. Rocklap pipe sections feature pre-formed geometries with hinged or split construction, facilitating retrofit applications on existing installations without system drainage or dismantling.

The material's dimensional stability at elevated temperatures ensures sustained thermal performance throughout operational life. Factory-applied facings—aluminium foil, reinforced aluminium, or PVC—provide weather protection and mechanical resilience for external installations. Acoustic performance characteristics make Rockwool solutions valuable in noise-sensitive environments where mechanical services require sound attenuation alongside thermal insulation.

Kingspan Phenolic Insulation Range

Kingspan Kooltherm phenolic products deliver maximum thermal efficiency where space limitations demand slimline solutions without performance compromise. The range includes pre-formed pipe sections and boards for fabricating bespoke configurations around irregular geometries. Superior insulation values per millimetre thickness enable compliance with stringent energy standards whilst preserving valuable ceiling void space and maintaining aesthetic ceiling heights.

Compatibility with various jacketing systems allows specification tailored to environmental exposure and aesthetic requirements. The material's low smoke emission and flame spread characteristics enhance building safety credentials, particularly relevant in occupied commercial and institutional facilities where evacuation considerations influence material selection.

Conclusion

Effective pipe insulation represents a fundamental investment in building performance, operational efficiency, and regulatory compliance. Understanding material characteristics, application requirements, and installation best practices empowers informed decision-making that optimises both immediate installation success and long-term system performance.

Whether specifying elastomeric foam for condensation-prone chilled water systems, mineral wool for high-temperature steam mains, or phenolic insulation for space-constrained plant rooms, matching material properties to application demands ensures thermal objectives are met efficiently. Precise measurement, careful installation, and adherence to Building Regulations Part L standards transform theoretical insulation performance into tangible energy savings and system protection.
