How to Stop Condensation and Mould on Cold Water Pipes

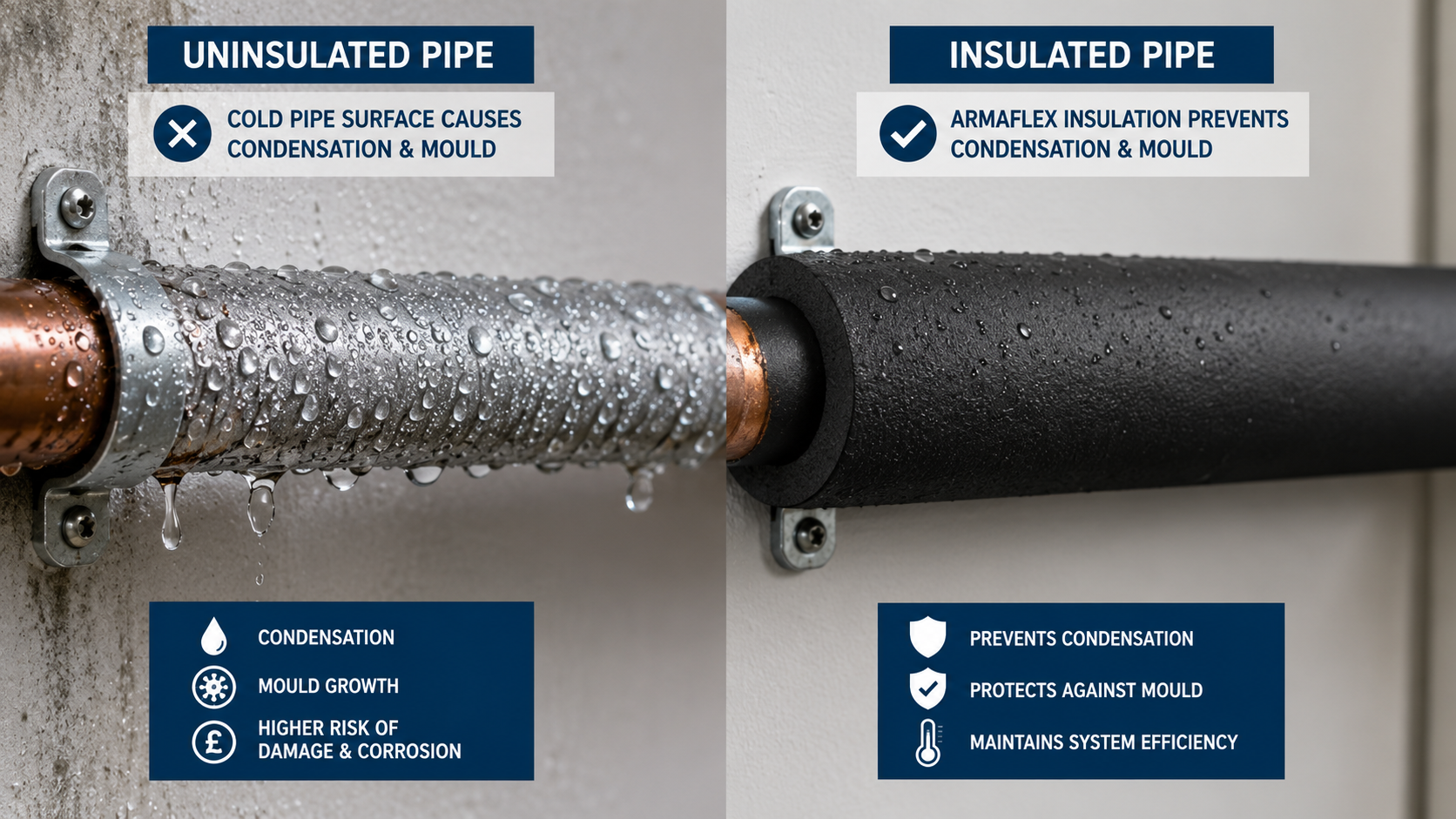

Condensation and mould on cold water pipes are among the most common insulation problems found in homes, offices, commercial buildings and HVAC systems. While many people assume the issue is caused by leaking pipework, the real culprit is often surface condensation forming when warm, humid air comes into contact with a cold pipe.

The good news is that condensation problems can usually be eliminated with the correct insulation material and proper installation techniques.

In this guide, we'll explain why cold pipes sweat, how mould develops, why some insulation materials fail, and why closed-cell insulation such as Armaflex Class O is the preferred solution for preventing condensation.

Why Do Cold Water Pipes Get Condensation and Mould?

Condensation occurs when the surface temperature of a pipe falls below the dew point temperature of the surrounding air.

When warm air containing moisture comes into contact with a colder surface, the moisture changes from vapour into liquid water droplets. This process is exactly the same as condensation forming on a cold drink taken out of the fridge.

Over time, these water droplets can:

• Soak surrounding materials
• Damage ceilings and walls
• Cause staining
• Promote mould growth
• Create unpleasant odours
• Lead to corrosion beneath insulation

If left untreated, condensation can become a significant maintenance and hygiene issue.

Understanding Dew Point and Relative Humidity

To understand why condensation forms, it's important to understand two key concepts:

Relative Humidity

Relative humidity measures how much moisture is present in the air compared to the maximum amount the air can hold at that temperature.

Higher humidity means more water vapour is available to condense onto cold surfaces.

Dew Point

The dew point is the temperature at which moisture in the air begins to condense into liquid water.

If a pipe surface falls below the dew point temperature, condensation will form.

For example:

• Room temperature: 22°C
• Relative humidity: 70%
• Dew point: approximately 16°C

If a cold water pipe surface drops below 16°C, condensation becomes likely.

Why Summer Is Often Worse Than Winter

Many people assume condensation is primarily a winter problem.

In reality, cold pipe condensation is often worse during summer.

This is because:

• Warm air can hold more moisture
• Relative humidity tends to increase
• Cold water temperatures remain low
• HVAC chilled water systems operate continuously

The larger temperature difference between humid air and cold pipe surfaces increases condensation risk.

This is why condensation frequently appears on:

• Cold water services
• Chilled water systems
• Fan coil pipework
• Air conditioning pipework
• Cold feeds in kitchens and bathrooms

Why Open-Cell Foam Insulation Fails

One of the biggest mistakes in condensation control is using the wrong insulation material.

Open-cell foam products contain interconnected air pockets that allow moisture to penetrate into the insulation.

Over time, open-cell insulation can:

• Absorb water
• Lose thermal performance
• Remain permanently damp
• Encourage mould growth
• Deteriorate internally
• Fail to prevent condensation

Once moisture enters open-cell insulation, the problem often becomes progressively worse.

For cold pipe applications, open-cell materials should generally be avoided.

Closed-Cell Foam Is the Solution

Closed-cell insulation is specifically designed to prevent moisture ingress.

Products such as Armaflex Class O feature millions of sealed cells that block the movement of water vapour through the insulation.

Benefits include:

• Zero water absorption
• Excellent thermal performance
• Long service life
• Built-in vapour barrier
• Flexible installation
• Resistance to mould and condensation

Because moisture cannot penetrate the insulation structure, the risk of condensation forming beneath the insulation is dramatically reduced.

This is why closed-cell elastomeric insulation is the industry standard for cold water and chilled water systems.

Why Armaflex Class O Is Ideal for Cold Pipe Insulation

Armaflex Class O has become one of the most widely specified products for condensation control.

Key advantages include:

• Closed-cell elastomeric foam construction
• Integrated vapour barrier
• Flexible installation around bends and fittings
• Excellent thermal conductivity
• Long-term condensation protection
• Suitable for domestic, commercial and industrial applications

When installed correctly, Armaflex creates a continuous barrier that prevents moisture reaching the pipe surface.

Vapour Seal Integrity Is Critical

Insulation alone is not enough.

For cold pipe systems, vapour seal integrity is arguably the most important factor in preventing condensation.

Even the highest-performing insulation can fail if warm, humid air is allowed to enter through:

• Open joints
• Poorly sealed mitres
• Damaged insulation
• Unsealed fittings
• Incomplete adhesive application

Once moisture penetrates behind the insulation, condensation can occur on the pipe surface where it cannot easily be seen.

This often leads to hidden water damage and mould growth.

Every joint, bend, tee and fitting should be fully sealed using the correct adhesive and installation methods.

Why Wall Thickness Matters More on Cold Pipes

Many installers focus on insulation thickness for energy efficiency.

For cold pipes, thickness is equally important for condensation control.

Thicker insulation:

• Reduces heat transfer
• Keeps the insulation surface warmer
• Lowers condensation risk
• Provides greater safety margin during humid conditions

In many cases, increasing insulation thickness provides a much greater improvement in condensation resistance than minor improvements in thermal conductivity.

This is particularly important for:

• Chilled water systems
• Air conditioning pipework
• Cold water services in humid environments
• HVAC distribution systems

Chilled Water Systems and HVAC Applications

Chilled water systems are among the most demanding applications for pipe insulation.

Common examples include:

• Chiller pipework
• Fan coil units
• Air handling units
• Cooling systems
• Commercial HVAC installations

These systems often operate at temperatures well below ambient conditions, creating a high risk of condensation.

For this reason, closed-cell insulation with fully sealed joints is considered essential.

Domestic Cold Water Pipework

Condensation is not limited to commercial buildings.

Domestic properties frequently experience condensation on:

Under-Sink Pipework

Kitchen cabinets often have restricted airflow and elevated humidity levels.

Bathroom Pipework

Showers and baths significantly increase humidity, creating ideal conditions for condensation.

Cold Water Feed Pipes

Cold mains feeds passing through warm internal spaces can attract condensation if left uninsulated.

Utility Rooms

Appliances such as washing machines and tumble dryers can raise humidity levels around exposed pipework.

Signs Your Existing Insulation Is Failing

If insulation is no longer performing correctly, common warning signs include:

• Water droplets on pipe surfaces
• Damp insulation
• Dripping pipework
• Black mould growth
• Musty smells
• Water staining
• Corrosion beneath insulation
• Soft or deteriorated insulation material

These symptoms often indicate that moisture has breached the insulation system.

How to Fix Condensation Problems

Simply covering wet insulation with new insulation rarely solves the issue.

A proper remediation process should include:

Step 1: Remove Failed Insulation

Strip all damaged or moisture-contaminated insulation from the pipework.

Step 2: Dry the Pipe Surface

Ensure the pipe is completely dry before re-insulating.

Step 3: Inspect for Damage

Check for corrosion, mould contamination or pipe defects.

Step 4: Install Closed-Cell Insulation

Use a suitable product such as Armaflex Class O or Self-Seal Armaflex.

Step 5: Seal All Joints

Apply adhesive correctly and ensure every joint is fully closed.

Step 6: Inspect Vapour Barrier Integrity

Check bends, tees, valves and fittings carefully for any potential air gaps.

Self-Seal Armaflex for Domestic Applications

For straightforward domestic installations, Self-Seal Armaflex offers a quick and convenient solution.

Benefits include:

• Faster installation
• Integrated adhesive strip
• Cleaner appearance
• Reduced installation time
• Suitable for most straight pipe runs

However, complex fittings, valves and bends may still require standard Armaflex and adhesive to achieve a complete vapour-tight seal.

Final Thoughts

Condensation on cold pipes is caused by warm humid air meeting a pipe surface below the dew point temperature. If left untreated, this can lead to mould growth, water damage and insulation failure.

The key to preventing condensation is selecting the correct insulation material and ensuring a complete vapour-tight installation.

Closed-cell insulation such as Armaflex Class O provides excellent protection because it combines thermal insulation with an integrated vapour barrier. When properly installed and sealed, it can prevent condensation problems for many years.

If you're replacing failed insulation or installing new cold water pipe insulation, choosing the correct wall thickness and maintaining vapour seal integrity are essential for long-term performance.
