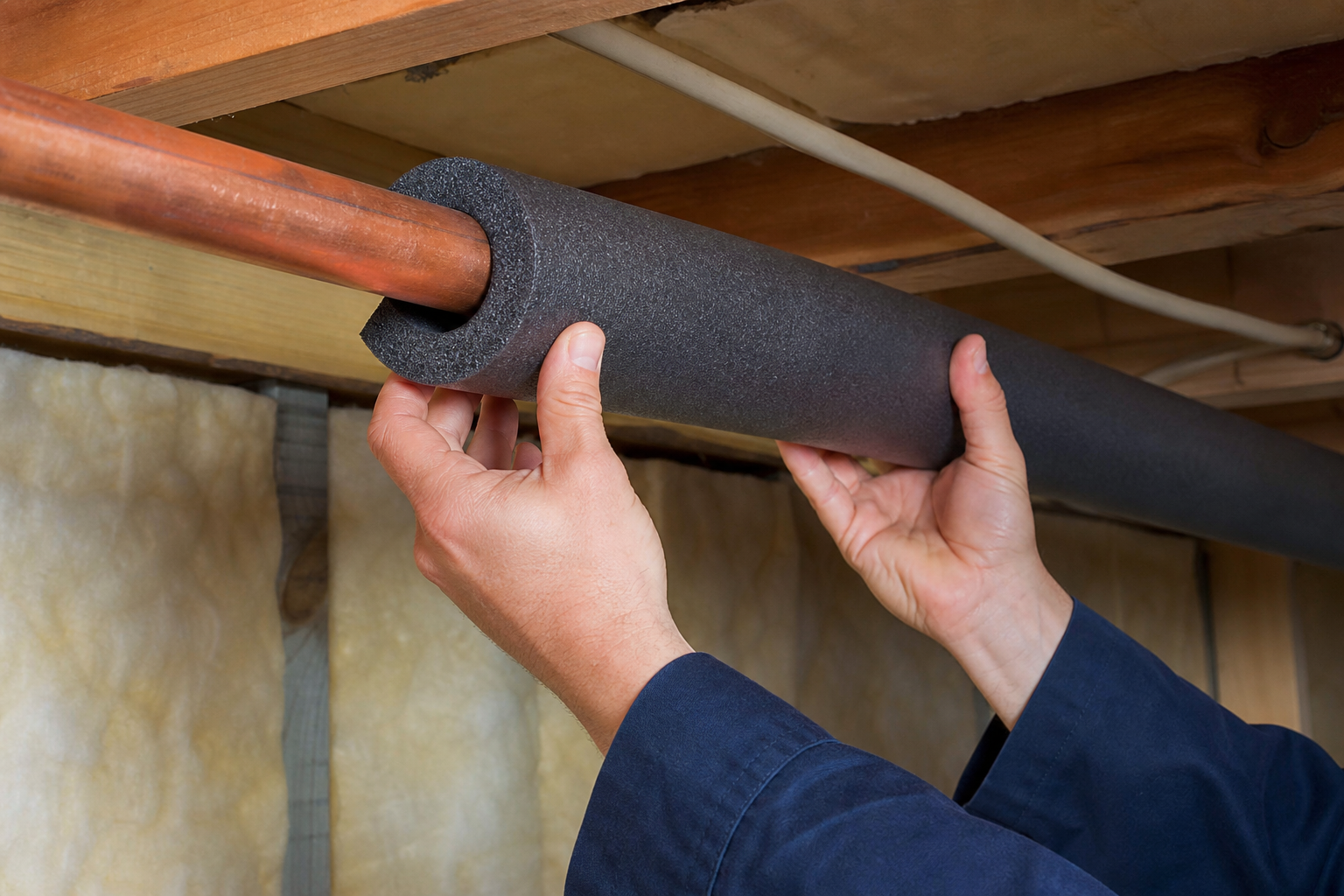

How to Insulate Water Pipes Like a Pro

Proper pipe lagging installation protects your plumbing infrastructure from heat loss, condensation, and frost damage whilst reducing energy consumption. Whether you're a seasoned HVAC contractor or a facilities manager overseeing building services, mastering the techniques of professional-grade water pipe insulation ensures longevity, efficiency, and compliance with building regulations. This comprehensive guide walks you through every stage of the process, from selecting appropriate materials to executing flawless finishing touches that distinguish amateur work from professional installations.

Tools and Materials Needed

Before commencing any pipe lagging installation, assembling the correct implements and materials proves essential for achieving professional results. A precision-ground sharp knife or dedicated insulation knife allows clean, accurate cuts through foam materials without compression or tearing. Quality adhesive specifically formulated for pipe insulation creates durable bonds that withstand thermal cycling and moisture exposure. Aluminium foil tape—not standard duct tape—provides vapour-resistant sealing on joints and external surfaces. A reliable tape measure ensures accurate dimensional assessment, whilst a permanent marker facilitates clear cutting guidelines.

The insulation itself demands careful selection. Closed-cell elastomeric foam represents the gold standard for most applications, offering excellent thermal performance, moisture resistance, and flexibility. For thermal efficiency, phenolic and mineral wool variants serve specific high-temperature scenarios. Supporting materials such as adhesive applicators, cleaning cloths for surface preparation, and safety equipment including cut-resistant gloves complete your professional toolkit.

Understanding Pipe Bore and Insulation Sizing

Step 1: Measure the Pipe Bore and Choose the Right Insulation Size

Accurate measurement forms the foundation of successful pipe insulation. The pipe bore—the internal diameter—differs from the external diameter, yet insulation specifications reference the nominal bore size. For copper pipes, standard UK sizes include 15mm, 22mm, and 28mm, whilst plastic pipework may vary slightly. Measure the outside diameter with callipers or a pipe gauge, then consult manufacturer sizing charts to identify the corresponding insulation inner diameter.

Selecting insulation with the correct bore ensures a snug fit without excessive compression, which compromises thermal performance. Oversized insulation creates air gaps that reduce effectiveness and complicate installation. Pre-slit tubular insulation simplifies fitting over existing pipes, whilst non-slit variants suit new installations where pipes can be threaded through before connection.

Selecting Appropriate Wall Thickness

Step 2: Choose Wall Thickness Based on Application

Wall thickness selection depends entirely upon the application parameters and regulatory requirements. Heating circuits typically demand minimum 19mm thickness for pipes up to 42mm bore, increasing for larger diameters. This specification prevents heat dissipation in unheated spaces such as lofts, basements, and service voids, maintaining water temperature and reducing boiler cycling.

Cold water services require sufficient thickness to prevent condensation formation—a common cause of concealed water damage. The dewpoint differential between pipe surface temperature and ambient conditions determines minimum thickness. In refrigeration applications, enhanced thickness becomes mandatory to prevent external condensation and maintain system efficiency.

Frost protection represents another critical consideration. Pipes in unheated areas require thicker insulation, though lagging alone cannot guarantee frost prevention in extreme conditions. Building Regulations Approved Document L provides specific guidance on minimum thicknesses for various scenarios, establishing baseline standards for compliance.

Featured Product: Tubolit DG EnergyGuard Foam Insulation

For contractors and homeowners seeking premium performance with straightforward installation, the Tubolit DG EnergyGuard foam insulation delivers exceptional thermal efficiency combined with integrated self-seal technology. This advanced closed-cell polyethylene insulation features a factory-applied adhesive strip that eliminates the need for separate bonding agents on longitudinal seams, significantly accelerating installation whilst ensuring consistent vapour barrier integrity.

The EnergyGuard range excels in both heating and chilled water applications, with its low thermal conductivity reducing heat transfer and condensation risk. Available in multiple bore sizes and wall thicknesses, this versatile insulation solution addresses diverse plumbing scenarios from domestic hot water systems to commercial HVAC installations. The charcoal-grey aesthetic presents a professional appearance in exposed locations, whilst UV resistance ensures longevity in outdoor applications.

Premium Armaflex Insulation Solutions

When projects demand the highest performance standards, the Armaflex pipe insulation collection from Armacell represents the professional's choice. This comprehensive range includes self-seal variants, standard formats, and outdoor-rated specifications engineered for demanding environments. Armaflex's closed-cell elastomeric foam structure provides superior resistance to moisture ingress, maintaining thermal performance even in humid conditions where alternative materials degrade.

The collection encompasses solutions for refrigeration lines operating at sub-zero temperatures, high-temperature heating circuits, and everything between. Self-seal Armaflex variants incorporate factory-bonded adhesive strips that simplify installation whilst guaranteeing continuous vapour barriers—critical for preventing condensation on chilled services. For HVAC contractors and building services professionals, Armaflex delivers reliability, longevity, and compliance with stringent industry standards.

Cutting Techniques for Straight Sections

Step 3: Cutting Straight Sections Cleanly

Precision cutting determines the quality of subsequent joints and overall installation aesthetics. Position the insulation on a stable surface, measuring the required length and marking clearly with a permanent marker. A sharp, fine-toothed knife drawn in a single, smooth motion produces the cleanest cuts without compressing the cellular structure.

For pre-slit insulation, close the slit during cutting to maintain dimensional accuracy and prevent the blade from following the existing seam. Apply consistent pressure throughout the cut, rotating the tube rather than repositioning the knife for circumferential cuts. Ragged edges indicate a blunt blade; replace or sharpen immediately to maintain professional standards. Clean cuts ensure tight joints that seal effectively when bonded, preventing thermal bridging and vapour ingress.

Mastering Mitre Cuts for Direction Changes

Step 4: Cutting 45° Mitres for Bends and Elbows

Professional pipe lagging installation distinguishes itself through impeccable mitre work at directional changes. A 90-degree bend requires two 45-degree mitre cuts that meet precisely, creating a seamless transition without gaps or compression. Begin by measuring the distance from the last straight section to the centre point of the elbow fitting, adding the insulation wall thickness to account for material extension beyond the pipe surface.

Mark the 45-degree angle using a protractor or purpose-made mitre guide, ensuring the cutting plane aligns correctly with the direction of turn. The cut should angle inward on the inside radius of the bend and outward on the external radius. Execute the cut with a single, decisive stroke, maintaining the blade perpendicular to the marking to prevent bevelled edges that compromise joint integrity.

Test-fit both sections before applying adhesive. Properly executed mitres close tightly without forcing, with minimal visible gaps. For obtuse or acute angles differing from 90 degrees, adjust the mitre angle proportionally—a 120-degree bend requires 60-degree cuts, whilst a 60-degree bend demands 30-degree mitres. This geometric precision ensures complete thermal coverage around complex pipework configurations.

Negotiating Branch Connections

Step 5: Insulating Tees and Branches

Tee junctions present unique challenges requiring methodical approaches. The through-run sections continue with standard straight insulation, whilst the branch connection demands careful templating. Measure the branch pipe diameter and create a circular aperture in the main run insulation that accommodates the branch insulation without gaps.

Professional installers employ a technique called "saddle cutting" for optimal results. Place a short section of branch insulation against the main run insulation at the correct position, then trace its profile with a marker. Cut carefully along this curved line, creating a saddle-shaped opening. The branch insulation then nests into this aperture, with all edges meeting flush for subsequent sealing.

For reducing tees where branch diameter differs from the main run, graduated cutting becomes necessary. Multiple small adjustments produce better results than aggressive single cuts. Always verify dimensional accuracy before bonding, as rectifying errors after adhesive application proves difficult and wasteful. Complex manifold arrangements may benefit from prefabrication—assembling and cutting sections at bench level before installation on pipework.

Addressing Valves and Fittings

Step 6: Insulating Valves, Stopcocks and Fittings

Valves, stopcocks, and serviceable fittings require removable insulation that permits maintenance access whilst maintaining thermal continuity. Pre-formed valve jackets manufactured from quilted fabrics or moulded foam provide professional solutions for standard valve configurations. These wrap-around covers secure with Velcro fastenings or drawstring closures, offering quick removal and replacement.

For bespoke fittings lacking proprietary covers, construct custom insulation using offcuts and flexible materials. Cut sections that envelope the fitting completely, securing with wire or adjustable straps rather than permanent adhesive. The objective balances thermal performance against accessibility—insulation must be substantial enough to prevent heat loss or condensation, yet removable without damaging adjacent permanent lagging.

Gate valves, ball valves, and isolating valves each present distinct geometric challenges. Document your installation approach with photographs, particularly for complex arrangements, facilitating consistent replacement if covers deteriorate. Never permanently bond insulation over serviceable components, as subsequent access requirements will necessitate destructive removal, compromising the entire installation's integrity.

Creating Vapour-Tight Seals

Step 7: Sealing All Joints with Adhesive or Self-Seal Strip

Joint sealing represents the critical difference between adequate and exemplary pipe insulation. Every longitudinal seam, butt joint, and mitre connection must form a continuous vapour barrier, particularly on chilled water services where moisture ingress causes catastrophic performance degradation and concealed deterioration.

For standard insulation without integral self-seal, apply manufacturer-specified contact adhesive to both mating surfaces. Allow the adhesive to become touch-dry according to product instructions—typically three to five minutes—before pressing surfaces together firmly. Contact adhesives achieve maximum bond strength when both surfaces carry adhesive and receive adequate flash-off time. Premature joining or single-surface application produces weak bonds susceptible to delamination.

Self-seal insulation streamlines this process considerably. The factory-applied adhesive strip activates under pressure, creating immediate bonds without separate products or drying time. Peel the release liner progressively as you close the seam, pressing firmly with a smooth tool to ensure complete contact. Self-seal technology particularly benefits retrofit applications in confined spaces where adhesive application proves awkward.

Butt joints between straight sections require special attention. Apply adhesive generously to both cut faces, ensuring coverage extends to the edges. Press together and hold for thirty seconds, allowing initial tack to develop. Some installers reinforce critical joints with short lengths of foil tape applied circumferentially, though this addition should complement rather than substitute proper adhesive bonding.

Professional Finishing Techniques

Step 8: Finishing with Foil Tape on Exposed Sections

Aluminium foil tape application provides the finishing touch that characterises professional installations. This specialised tape serves multiple functions: reinforcing joint integrity, protecting against mechanical damage, providing additional vapour barrier security, and delivering a clean, finished aesthetic.

Select tape specifically manufactured for HVAC and insulation applications, featuring aggressive acrylic adhesive that bonds to foam surfaces and resists temperature fluctuations. Standard width of 50mm provides adequate coverage for most applications, though 75mm variants suit larger diameter pipes or exposed outdoor installations requiring enhanced protection.

Apply tape with consistent tension, avoiding stretching that causes curling or subsequent delamination. Overlap successive wraps by approximately half the tape width when spiralling along pipe runs. Smooth each wrap thoroughly with a flat tool, eliminating air bubbles and ensuring complete adhesive contact. At joints and terminations, fold tape ends neatly rather than leaving raw edges that snag or peel.

For external installations or mechanically vulnerable locations, complete foil tape coverage over all insulation surfaces provides optimal protection against UV degradation, physical impact, and moisture ingress. Indoor applications in protected environments may require taping only at joints and seams, reducing material costs whilst maintaining vapour barrier integrity.

Professional Installation Insights

Pro Tips: Never Leave Gaps, Always Seal Vapour Barrier on Chilled Pipes, Use Self-Seal for Tight Spaces

Experienced insulation contractors adhere to principles that elevate their work beyond basic compliance. The cardinal rule: never leave gaps, regardless of how insignificant they appear. Even small discontinuities create thermal bridges that dramatically reduce overall system efficiency. A mere 5% gap in insulation coverage can diminish thermal performance by 30-40%, negating substantial investment in materials and labour.

Chilled water services demand unwavering attention to vapour barrier continuity. Unlike heating applications where minor imperfections merely reduce efficiency, cold pipe insulation with compromised vapour barriers invites moisture infiltration. Condensation accumulates within the insulation matrix, destroying thermal performance whilst creating concealed water damage and potential microbial growth. Every joint, seam, and penetration requires meticulous sealing with appropriate adhesives or self-seal technology.

Confined spaces such as service ducts, ceiling voids, and wall cavities present access challenges that complicate traditional adhesive application. Self-seal insulation transforms these scenarios from frustrating ordeals into straightforward tasks. The integrated adhesive strips eliminate the need to manipulate separate adhesive containers in restricted spaces, whilst the immediate bond allows progressive installation without waiting for flash-off periods.

Additional professional considerations include:

• Pre-clean pipe surfaces before insulation installation, removing oils, dust, and oxidation that impair adhesive bonding
• Plan installation sequences to avoid trapped sections that become inaccessible after adjacent work
• Maintain insulation continuity through wall penetrations using purpose-made sleeves or carefully cut sections
• Document installations with photographs, particularly complex valve arrangements and custom solutions
• Consider future maintenance requirements, ensuring removable access at serviceable components
• Account for pipe movement in heating systems, avoiding compression that causes insulation failure during thermal expansion

Temperature cycling affects adhesive performance. Install insulation on pipework at ambient temperature when possible, avoiding systems at operational temperature extremes. Adhesives bond more effectively to surfaces within their specified temperature range, typically 5-25°C for most formulations.

Common Mistakes to Avoid

Recognition of frequent errors prevents costly remediation and performance failures. Undersizing insulation thickness represents perhaps the most prevalent mistake, often driven by cost considerations or spatial constraints. However, insufficient thickness fails to achieve target thermal performance, necessitating premature replacement or accepting perpetual energy wastage and potential condensation issues.

Compressing insulation during installation destroys its cellular structure and thermal resistance. Forcing oversized insulation onto pipes or crushing material when threading through tight penetrations creates permanent performance degradation. Similarly, excessive stretching of pre-slit insulation to accommodate oversized pipes creates thin spots and dimensional instability.

Incorrect adhesive selection causes premature joint failure. Not all adhesives suit all materials—verify compatibility between your chosen adhesive and insulation substrate. Water-based adhesives generally prove unsuitable for external applications or high-humidity environments, whilst solvent-based formulations demand adequate ventilation during application.

Neglecting external weather protection on outdoor installations allows UV degradation, moisture penetration, and physical damage. External insulation requires protective cladding, weather-resistant jacketing, or complete aluminium/PVC covering systems that shield the insulation whilst maintaining aesthetic standards.

Finally, failing to account for system-specific requirements causes specification errors. Refrigeration lines operating below dewpoint demand enhanced vapour barrier integrity and potentially factory-applied jacketing. High-temperature heating circuits above 100°C necessitate mineral wool or phenolic insulation rather than standard elastomeric foam. Understanding application parameters before material selection prevents fundamental specification failures.

Essential Products and Resources

Links to Armaflex Self-Seal, Armaflex Adhesive and Pipe Insulation Range

Achieving professional-grade pipe lagging installation requires access to premium materials engineered for demanding applications. The Armaflex self-seal insulation range combines superior thermal performance with integrated bonding technology, streamlining installation whilst guaranteeing vapour barrier integrity. The factory-applied adhesive strips eliminate the variables associated with site-applied bonding agents, delivering consistent results regardless of installer experience or environmental conditions.

For standard Armaflex installations, manufacturer-formulated Armaflex adhesive ensures compatibility and optimal bond strength. This specialist contact adhesive develops aggressive tack that withstands thermal cycling, vibration, and moisture exposure encountered in real-world applications. Available in brush-on containers for large projects or aerosol formats for smaller jobs, Armaflex adhesive represents the specified bonding solution for all non-self-seal Armacell products.

The comprehensive pipe insulation range at PipeLagging.com encompasses solutions for every application scenario. From domestic hot water protection to industrial refrigeration lines, the curated selection includes Armacell, Rockwool, and Kingspan products representing industry-leading performance and reliability. Technical specifications, installation guidance, and compatibility information support informed material selection, whilst competitive pricing and prompt delivery facilitate project completion within budget and schedule constraints.

Building services professionals, HVAC contractors, and facilities managers benefit from expert technical support that addresses application-specific challenges. Whether specifying insulation for a domestic heating system retrofit or a commercial chilled water installation, access to knowledgeable advice ensures appropriate material selection, correct installation methodology, and long-term performance satisfaction.

Mastering water pipe insulation transforms a routine maintenance task into a value-adding skill that delivers measurable energy savings, prevents costly water damage, and ensures regulatory compliance. The techniques outlined in this guide—from precision measurement and cutting through to meticulous sealing and finishing—distinguish professional installations from amateur attempts. Investment in quality materials, appropriate tools, and methodical execution yields systems that perform reliably for decades, protecting building infrastructure whilst minimising operational costs.
