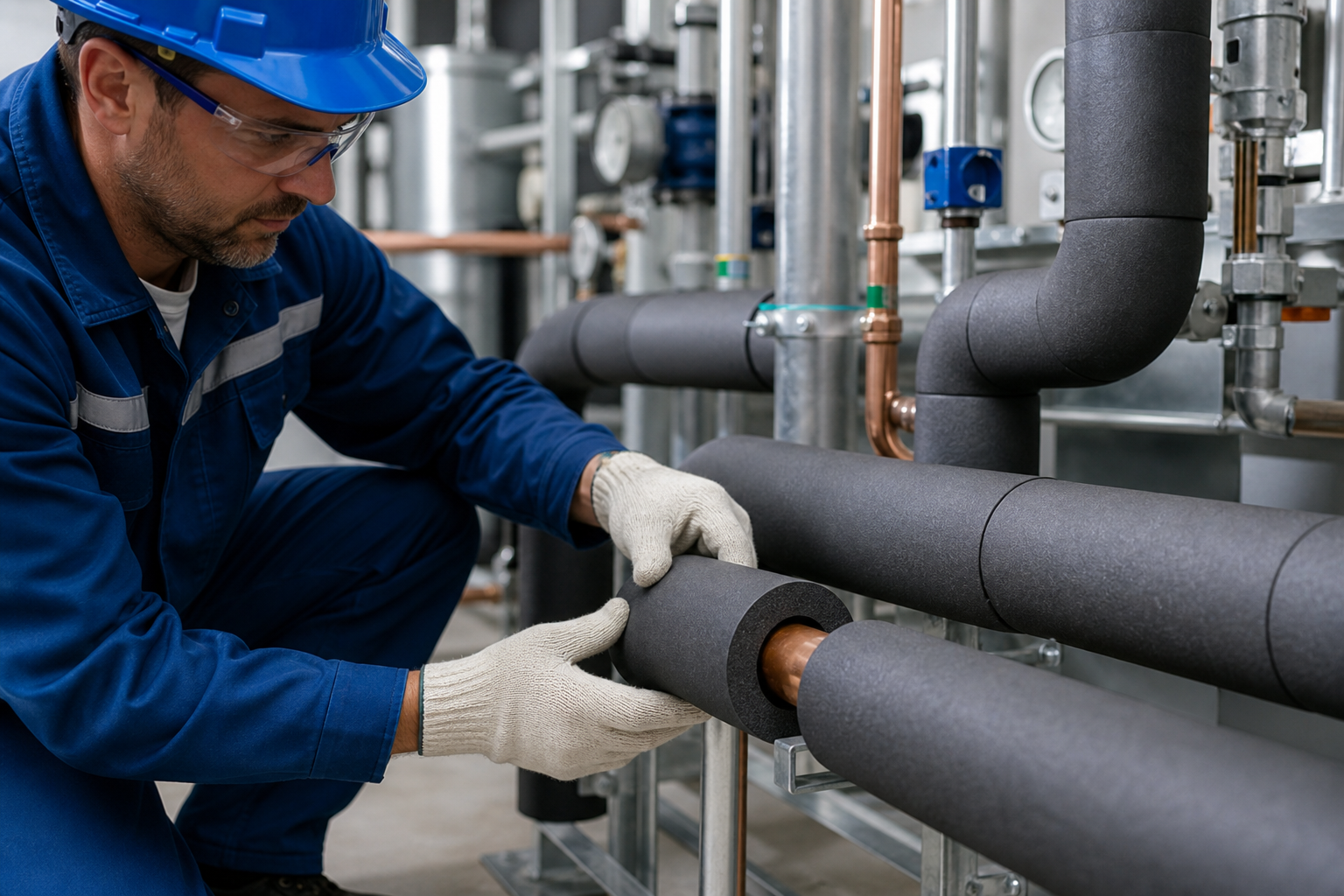

How to Choose the Right Pipe Insulation for HVAC Systems

Selecting appropriate pipe insulation for HVAC systems represents a critical decision that influences energy efficiency, operational costs, and system longevity. The thermal envelope surrounding pipework serves as the first line of defence against heat loss, condensation formation, and acoustic transmission. Understanding the nuanced requirements of different applications ensures optimal performance across varied environments and operating conditions.

Modern HVAC installations demand sophisticated insulation solutions that address multiple performance criteria simultaneously. From cellular elastomeric materials to rigid phenolic sections, the spectrum of available products necessitates informed selection based on technical parameters rather than arbitrary preference. This comprehensive examination explores the pivotal considerations that govern insulation choice for mechanical services.

Understanding Thermal Performance Requirements

The thermal conductivity coefficient, expressed as lambda value or k-value, constitutes the fundamental metric for evaluating insulation efficacy. Materials with lower thermal conductivity provide superior resistance to heat transfer, reducing energy consumption throughout the system's operational lifespan. Phenolic insulation, for instance, delivers exceptional thermal resistance at thinner profiles compared to traditional mineral wool alternatives.

Temperature differentials between pipe contents and ambient conditions determine the requisite insulation thickness. Chilled water systems operating below ambient temperature require sufficient insulation to prevent surface condensation, whilst heating circuits prioritise minimising heat dissipation. The British Standard BS 5422 provides calculation methodologies for determining economic insulation thickness based on energy costs, material expenses, and system operating parameters.

Calculating Economic Thickness

Economic thickness represents the optimal balance between initial material investment and lifecycle energy savings. Sophisticated calculations incorporate fuel costs, discount rates, maintenance intervals, and anticipated service life. Whilst thicker insulation invariably improves thermal performance, the incremental benefit diminishes beyond certain thresholds, rendering additional material economically unjustifiable.

Professional specifiers utilise dedicated software tools that account for multiple variables including pipe diameter, operating temperature, ambient conditions, and local energy tariffs. These calculations reveal that undersized insulation frequently results in substantial energy penalties over the system's operational tenure, far exceeding any initial cost savings.

Material Selection Criteria

Diverse material compositions offer distinct advantages suited to specific applications and environmental exposures. Cellular elastomeric foam, exemplified by Armaflex pipe insulation, provides closed-cell structure that inherently resists moisture ingress whilst maintaining flexibility for navigating complex pipework configurations. This characteristic proves invaluable in refrigeration and air conditioning applications where vapour permeability would precipitate performance degradation.

Premium Insulation Solutions for Every Application

Navigating the extensive range of pipe insulation products available can present challenges for specifiers and contractors alike. PipeLagging.com offers a comprehensive collection of premium insulation materials from industry-leading manufacturers including Armacell, Rockwool, and Kingspan. Whether your project demands flexible elastomeric solutions for intricate pipework layouts, robust mineral wool sections for high-temperature applications, or advanced phenolic insulation for space-constrained installations, the curated selection addresses every HVAC requirement with proven performance.

Expert technical guidance accompanies this extensive product portfolio, ensuring contractors and facilities managers select materials precisely matched to their operational parameters. Fast UK delivery and convenient collection from Manchester facilitate project timelines whilst maintaining the exacting quality standards demanded by contemporary building services.

Mineral Wool Characteristics

Rockwool pipe sections deliver non-combustible insulation suitable for elevated temperature services and applications where fire performance constitutes a primary consideration. The fibrous structure accommodates substantial temperature fluctuations without dimensional instability, whilst the inherent vapour permeability necessitates additional weatherproofing in external installations.

Stone wool products exhibit excellent acoustic attenuation properties, mitigating noise transmission from circulating pumps and high-velocity fluid flow. This dual functionality proves particularly valuable in commercial buildings where mechanical services traverse occupied spaces and acoustic comfort standards must be satisfied.

Phenolic Foam Advantages

Phenolic insulation systems provide unparalleled thermal efficiency within minimal radial thickness, addressing spatial constraints in congested plant rooms and ceiling voids. The rigid cellular structure maintains dimensional stability across the service temperature range whilst contributing negligible fire load. However, the material's rigidity demands precise fabrication for complex configurations and mandates protective cladding in most applications.

Environmental and Operational Considerations

Installation environment profoundly influences material suitability and supplementary protection requirements. External applications face weathering, ultraviolet degradation, and potential mechanical damage that internal installations rarely encounter. Outdoor pipe insulation systems incorporate protective cladding—typically aluminium, PVC, or stainless steel—that shields the insulation core from environmental assault whilst providing a cleanable, presentable finish.

Moisture and Vapour Control

Below-ambient services demand absolute vapour impermeability to prevent interstitial condensation within the insulation matrix. Even minimal moisture ingress catastrophically degrades thermal performance whilst fostering microbial growth and accelerating corrosion beneath the insulation. Closed-cell elastomeric materials inherently resist vapour transmission, whereas fibrous insulation systems require meticulously sealed vapour barriers with particular attention to joints, penetrations, and terminations.

The dewpoint temperature relative to insulation surface temperature governs condensation risk. Comprehensive vapour control systems employ vapour check adhesives, self-seal laps, and compatible mastics to maintain continuity across the entire installation. Quality assurance protocols should verify barrier integrity before system commissioning.

Fire Safety and Building Regulations

Building Regulations Approved Document B establishes fire performance criteria for materials used in construction, including pipe insulation within designated escape routes and compartmentalised areas. Reaction to fire classifications (Euroclass system) define ignitability, flame spread, smoke production, and flaming droplet characteristics.

Mechanical services penetrating fire-rated constructions necessitate properly specified fire stopping systems that maintain compartmentation integrity. The insulation specification must coordinate with fire barrier details to ensure compliant installations that preserve both thermal and fire protection functions.

Practical Installation Factors

Material handling characteristics significantly impact installation labour costs and final system quality. Pre-formed sections with factory-applied facings expedite installation compared to sheet materials requiring on-site fabrication. Self-seal adhesive strips eliminate the need for separate adhesives whilst ensuring consistent joint quality regardless of applicator skill level.

Pipe Support Integration

Thermal bridging at pipe supports represents a frequently overlooked source of heat loss and condensation formation. Metal supports in direct contact with pipework create conductive pathways that bypass the surrounding insulation. Properly specified pipe supports incorporate thermal inserts or standoffs that interrupt the conductive path whilst maintaining structural integrity.

Support spacing calculations must account for the additional weight of saturated insulation and protective cladding. Inadequate support provision allows sagging that compromises aesthetics, creates water traps, and induces mechanical stress on joints and fittings.

Accessibility for Maintenance

Removable and reusable insulation systems facilitate periodic inspection of pipework condition and valve operation without destroying the thermal envelope. Hinged or segmented constructions secured with banding or fasteners enable access whilst maintaining thermal continuity during normal operation. This consideration proves particularly valuable on systems requiring frequent intervention or those serving critical processes where inspection intervals are mandated.

Comparative Analysis of Common Materials

System-Specific Recommendations

Different HVAC applications present unique challenges that inform material selection. Refrigeration pipework handling sub-zero temperatures demands materials with proven performance at cryogenic conditions coupled with absolute vapour impermeability. Conversely, high-temperature heating circuits prioritise thermal stability and fire safety over moisture control.

Chilled Water Systems

Air conditioning and process cooling installations typically operate between 5°C and 15°C, creating substantial vapour drive from ambient air toward the cold pipe surface. Closed-cell elastomeric insulation with factory-applied facings provides the requisite vapour resistance whilst accommodating the moderate temperature differential. Meticulous joint sealing using compatible adhesives and mastics maintains vapour barrier continuity across fittings, valves, and changes of direction.

Surface temperatures must remain above the ambient dewpoint under all operating conditions to prevent condensation on the insulation exterior. Thickness calculations should incorporate humidity levels, air movement, and the most demanding seasonal conditions anticipated during the system's service life.

Heating Circuits

Low-temperature heating systems (40°C to 82°C) suit flexible elastomeric materials that simplify installation around frequent direction changes and valve clusters. Higher temperature applications including steam distribution and superheated water require mineral wool or other temperature-resistant materials. The increased radial thickness associated with fibrous insulation necessitates verification of clearance envelopes and accessibility requirements during design development.

Dual Temperature Systems

Reversible heat pump installations and seasonal changeover systems present the peculiar challenge of alternating between heating and cooling modes. Insulation specifications must satisfy the vapour control requirements of cooling duty whilst tolerating the elevated temperatures encountered during heating operation. Closed-cell elastomeric materials rated for extended exposure to heating temperatures provide the necessary versatility.

Quality Assurance and Specification Compliance

Documented material certifications verify compliance with relevant standards including BS EN 14303 for factory-made thermal insulation products. Third-party testing validates claimed thermal performance, fire ratings, and environmental credentials. Reputable manufacturers provide comprehensive technical datasheets detailing physical properties, application guidelines, and compatibility information.

Installation Standards

Adherence to recognised installation standards ensures consistent quality regardless of contractor or project scale. The British Standard BS 5970 provides detailed guidance for thermal insulation of pipework and equipment in the temperature range -100°C to +870°C. Specification references to such standards establish clear expectations and facilitate quality verification during construction.

Contractor competence significantly influences final installation quality. Training programmes and manufacturer-approved installer schemes provide assurance that personnel possess the requisite knowledge and skills to execute compliant installations. Documentation of installer qualifications should form part of project quality records.

Lifecycle Cost Considerations

Whole-life cost analysis provides a more complete evaluation framework than simple initial material comparison. Energy savings accruing from superior thermal performance frequently justify premium insulation products, particularly on continuously operated systems or those with substantial temperature differentials. Maintenance accessibility, replacement intervals, and expected service life further influence the economic calculus.

Degraded or damaged insulation imposes ongoing energy penalties until rectified. Systems operating in harsh environments or subject to mechanical abuse benefit from robust protective cladding that preserves insulation integrity despite challenging service conditions. The incremental cost of protective systems proves negligible compared to heat loss penalties and premature replacement expenses.

Frequently Asked Questions

Can I use the same insulation for both heating and cooling pipes?

Certain materials suit both applications, particularly closed-cell elastomeric foam rated for the complete temperature range encountered. However, heating-only systems may utilise less expensive materials without vapour barrier requirements, whilst cooling applications demand absolute moisture impermeability. System operating parameters should govern material selection rather than attempting universal solutions that may compromise performance.

How do I determine the correct insulation thickness?

Economic thickness calculations balance initial material costs against projected energy savings over the system lifespan. Professional calculation tools account for pipe diameter, fluid temperature, ambient conditions, insulation thermal properties, and local energy costs. Regulatory minimum thicknesses established by Building Regulations provide baseline requirements, though economic analysis frequently justifies exceeding these minimums.

What protective cladding should I specify for outdoor installations?

External applications require weatherproof cladding resistant to ultraviolet degradation, moisture ingress, and mechanical damage. Aluminium sheet provides excellent durability and weather resistance whilst remaining relatively lightweight. PVC cladding offers cost-effective protection suitable for many applications. Stainless steel serves demanding industrial environments where chemical resistance and mechanical robustness justify the premium cost. Cladding selection should consider aesthetics, maintenance requirements, and compatibility with the underlying insulation system.

Is thicker insulation always better?

Thermal performance improves with increasing thickness, but economic returns diminish beyond optimal levels. Excessive thickness increases material costs, installation labour, and spatial requirements without proportional energy savings. Additionally, support spacing may require reduction to accommodate increased weight. Economic thickness calculations identify the optimum balance point specific to each application's operating parameters and cost structure.

Making the Final Selection

Informed insulation selection synthesises thermal requirements, environmental exposures, regulatory compliance, installation practicalities, and lifecycle economics into a cohesive specification. Engaging with specialist suppliers provides access to technical expertise that clarifies options and validates design assumptions. The investment in appropriate insulation materials yields dividends throughout the system's operational tenure through reduced energy consumption, prevented moisture damage, and extended equipment longevity.

Contemporary building services demand sophisticated solutions that deliver measurable performance improvements whilst satisfying increasingly stringent environmental regulations. The pipe insulation specification represents a fundamental component of sustainable HVAC design, warranting the same rigorous analysis applied to primary plant equipment. By prioritising technical suitability over initial cost minimisation, specifiers ensure installations that perform reliably whilst minimising whole-life operational expenses.
