Explaining Fire Ratings of Insulation

Fire safety remains paramount in modern building design, particularly when specifying materials for mechanical services installations. Pipe insulation, whilst primarily selected for thermal efficiency, must also satisfy stringent fire performance criteria to protect building occupants and comply with regulatory frameworks. Understanding insulation fire ratings enables professionals to specify appropriate materials that balance thermal performance with fire safety obligations.

The complexity of fire classification systems—spanning British Standards and European regulations—often creates confusion amongst specifiers. This comprehensive guide demystifies fire ratings, explaining what Class O pipe insulation entails, how BS 476 insulation testing works, and which materials suit specific applications. Whether installing lagging in commercial plant rooms, residential developments, or fire-critical escape routes, selecting fire rated pipe insulation demands informed decision-making grounded in regulatory knowledge.

Why Fire Ratings Matter for Pipe Insulation

Building regulations across the United Kingdom mandate that construction materials, including pipe insulation, meet defined fire performance standards. These requirements exist to limit flame spread, reduce smoke generation, and prevent combustible materials from contributing to fire development. Insurance providers scrutinise material specifications, often refusing coverage or imposing premium increases where non-compliant insulation has been installed.

Commercial specifications typically stipulate minimum fire ratings based on building use, occupancy classification, and proximity to escape routes. Hospitals, schools, high-rise residential blocks, and public assembly buildings impose the most stringent requirements. Failure to specify compliant insulation fire rating materials can result in project rejection during building control inspections, necessitating costly remediation.

Beyond regulatory compliance, specifying appropriate fire rated pipe insulation demonstrates professional diligence and protects against litigation. In the event of fire incidents, investigators examine material specifications. Products lacking adequate fire certification may constitute grounds for negligence claims against designers, contractors, and building operators. The reputational damage alone justifies careful material selection.

Understanding the UK Fire Rating System: BS 476

The British Standard BS 476 establishes fire testing methodologies that have governed UK construction for decades. Two parts prove particularly relevant for pipe insulation: Part 6 assesses fire propagation characteristics, whilst Part 7 evaluates surface spread of flame. Together, these tests determine whether materials achieve classifications suitable for building applications.

BS 476 Part 6: Fire Propagation

This test measures a material's contribution to fire growth by exposing specimens to radiant heat and pilot flames. The resulting Fire Propagation Index classifies performance on a numerical scale. Lower indices indicate superior performance, with materials scoring below specific thresholds deemed acceptable for regulated applications. The test simulates realistic fire exposure, providing valuable data about how insulation behaves during combustion events.

BS 476 Part 7: Surface Spread of Flame

Surface spread testing evaluates how rapidly flames travel across a material's surface. Specimens are mounted vertically and exposed to standardised ignition sources. Classification ranges from Class 1 (lowest flame spread) through Class 4 (highest flame spread). Class 1 represents the optimal performance, required in corridors, stairwells, and other critical locations where rapid flame spread could impede evacuation.

The interaction between these tests creates a comprehensive fire performance profile. Materials must satisfy both propagation and spread criteria to achieve recognised classifications, ensuring they neither fuel fire development nor facilitate rapid flame transmission across surfaces.

What Class O Pipe Insulation Means

Class O represents the pinnacle of UK fire classification for construction materials, including pipe lagging. Contrary to common assumption, Class O is not a standalone test classification but rather a composite designation requiring materials to achieve specific performance thresholds across multiple BS 476 tests. Specifically, Class O demands a material achieves either Class 1 surface spread of flame with an index (I) not exceeding 12 and sub-index (i1) not exceeding 6 in the fire propagation test, or comprises entirely non-combustible materials.

The stringent requirements make Class O insulation suitable for the most demanding applications. Building Regulations frequently mandate Class O pipe insulation in protected escape routes, circulation spaces, concealed voids, and areas of high fire risk. Commercial specifications routinely stipulate Class O performance for mechanical services installations regardless of location, simplifying procurement and ensuring consistency across projects.

Verification of Class O compliance requires examination of test certificates and third-party accreditation. Reputable manufacturers provide comprehensive documentation demonstrating BS 476 test results. Specifiers should never accept verbal assurances; insist upon written certification from UKAS-accredited testing laboratories to ensure regulatory compliance and protect against non-conforming materials.

Achieving Fire Safety with Rockwool Rocklap

Mineral wool insulation exemplifies optimal fire performance, with products like Rockwool Rocklap achieving the highest fire classifications whilst delivering excellent thermal efficiency. Manufactured from volcanic rock fibres, mineral wool remains non-combustible at temperatures exceeding 1000°C, providing passive fire protection that neither ignites nor propagates flames. The foil-backed variant combines superior fire resistance with enhanced moisture protection and improved thermal performance.

Rockwool Rocklap 1m foil-backed pipe insulation represents a premium solution for fire-critical applications. The aluminium foil facing acts as a vapour barrier whilst maintaining the non-combustible properties of the mineral wool core. This combination proves invaluable in commercial HVAC installations, plant rooms, and anywhere fire safety cannot be compromised. The product achieves A1 Euroclass rating—the absolute highest fire classification available—making it compliant with even the most stringent specifications.

Firestop Products for Complete System Protection

Whilst selecting appropriately fire-rated pipe insulation forms the foundation of fire safety, complete system integrity demands attention to penetrations, joints, and service transitions. Firestop products seal openings where pipes traverse fire-rated compartment walls, floors, and ceilings, preventing fire and smoke passage through these vulnerable points. Without proper firestopping, even the highest-rated insulation cannot maintain compartmentation.

Specialist firestop collars, wraps, sealants, and coatings ensure mechanical services installations maintain building fire resistance ratings. These products undergo rigorous testing to demonstrate their ability to seal penetrations during fire events, expanding or charring to close gaps as pipes degrade. Pairing fire rated pipe insulation with certified firestop accessories creates comprehensive fire protection systems that satisfy building control requirements and protect life safety.

European Euroclass System Explained

The European classification system, designated as Euroclasses, provides a harmonised framework for fire performance assessment across EU member states. Despite Brexit, Euroclass ratings remain widely referenced in UK specifications, particularly for products marketed internationally. The system classifies materials from A1 (non-combustible) through F (highly combustible), with additional criteria for smoke production (s1, s2, s3) and flaming droplets (d0, d1, d2).

Understanding the correlation between UK and European systems proves essential for material specification. Class O pipe insulation typically equates to Euroclass A2-s1, d0 or better. Non-combustible mineral wools achieve A1 classification, whilst combustible materials with excellent fire performance—such as certain closed-cell elastomers—may reach A2 or B classifications when tested to EN 13501-1 standards.

The additional smoke and droplet classifications provide nuanced performance data beyond simple combustibility measures. Low smoke production (s1) proves critical in escape routes where visibility must be maintained, whilst the absence of flaming droplets (d0) prevents fire spread to lower levels or ignition of materials below the burning insulation.

Material-Specific Fire Performance

Different insulation materials exhibit vastly different fire characteristics, influencing their suitability for specific applications. Understanding these distinctions enables informed specification that balances thermal performance, cost, and fire safety requirements.

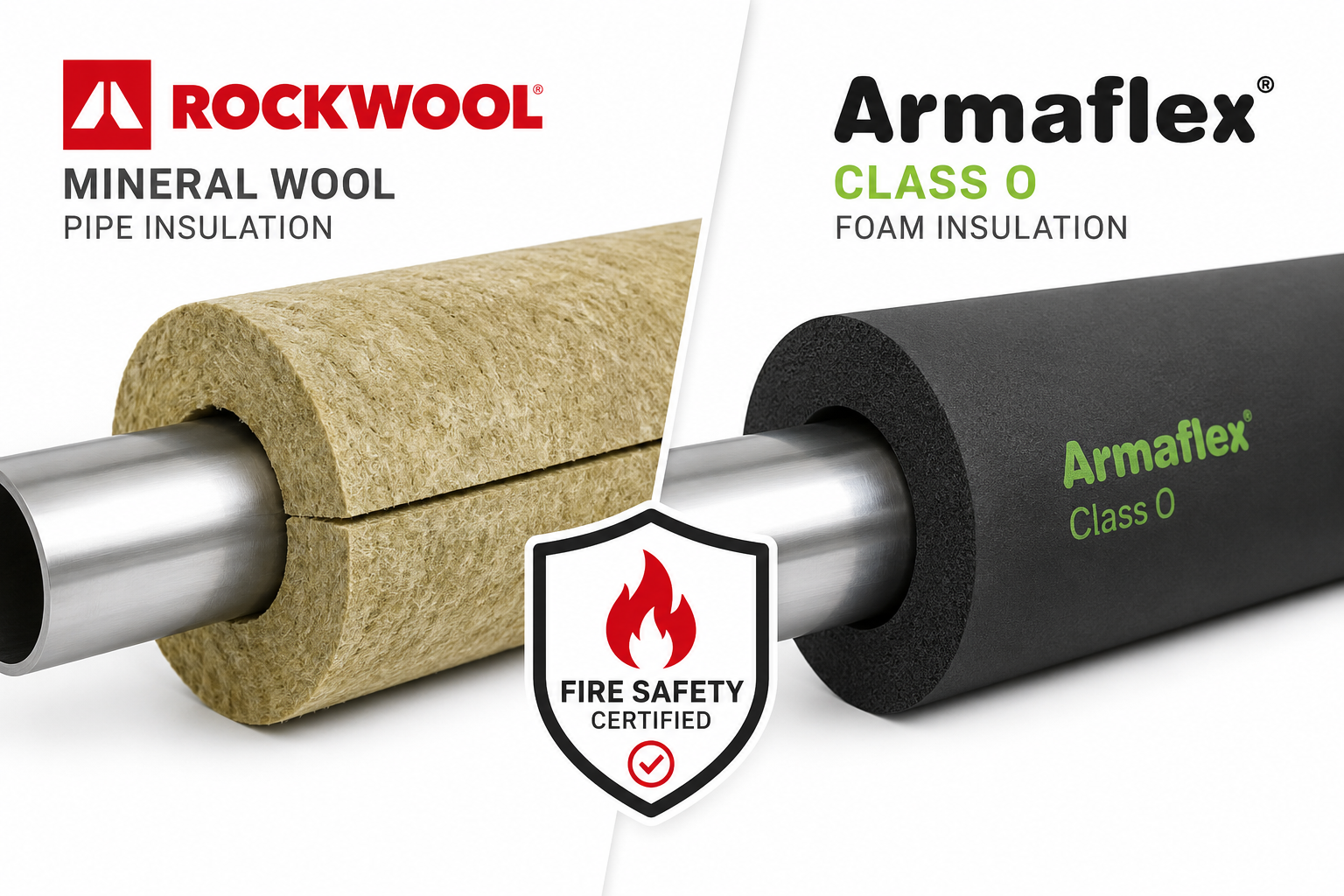

Mineral Wool (Rockwool): The Non-Combustible Standard

Stone wool and glass wool products achieve A1 Euroclass classification, representing absolute non-combustibility. These materials neither ignite nor contribute fuel to fires, maintaining structural integrity at extreme temperatures. Mineral wool generates negligible smoke and zero flaming droplets, making it ideal for hospitals, schools, high-rise buildings, and protected escape routes. The material excels in fire compartment applications where preventing fire spread constitutes the primary concern.

Rockwool Rocklap specifically combines A1 fire performance with excellent thermal insulation properties and acoustic damping characteristics. The pre-formed pipe sections simplify installation whilst ensuring complete coverage without gaps that might compromise fire or thermal performance. Foil-faced variants provide additional moisture protection without degrading fire classification.

Armaflex Class O: Flexible Elastomeric Excellence

Closed-cell elastomeric foams, exemplified by Armaflex Class O formulations, achieve BS 476 Class O certification through specialised manufacturing processes and fire-retardant additives. These materials offer flexibility, ease of installation, and superior moisture resistance compared to mineral wools. Whilst combustible, the Class O variants exhibit controlled burning characteristics with limited flame spread and acceptable fire propagation indices.

Armaflex Class O proves particularly suitable for commercial HVAC applications where installation efficiency, condensation control, and fire compliance must coexist. The self-sealing properties create seamless installations that resist moisture ingress whilst satisfying building regulation requirements. Chilled water systems, refrigeration pipework, and air conditioning installations frequently specify Armaflex Class O for its balanced performance profile.

Phenolic Foam (Kingspan Kooltherm): Thermal Champions

Phenolic insulation delivers exceptional thermal performance with impressive fire resistance characteristics. Products like Kingspan Kooltherm achieve low lambda values whilst maintaining good fire ratings, typically reaching Class O or B-s1, d0 classifications depending on facings and formulations. The closed-cell structure resists moisture whilst the rigid format suits applications requiring dimensional stability.

Phenolic foam proves advantageous where space constraints demand maximum thermal efficiency within minimal thickness. The material's inherent fire resistance stems from its chemical composition, which chars when exposed to flames rather than melting or producing flaming droplets. This behaviour limits fire contribution whilst maintaining insulation integrity longer than many alternative materials.

Application-Specific Material Selection

Specifying insulation fire rating requirements depends upon building type, pipe location, and regulatory obligations. Different scenarios demand varying levels of fire performance, with material selection reflecting risk assessment and compliance necessities.

Commercial HVAC Systems

Standard commercial heating, ventilation, and air conditioning installations typically require Class O pipe insulation as a minimum specification. Armaflex Class O frequently satisfies these requirements whilst providing installation efficiency and condensation control. Plant rooms, risers, and horizontal distribution pipework benefit from the material's flexibility and self-sealing properties, reducing labour costs whilst maintaining compliance.

However, where ductwork and pipework traverse fire-rated compartments or locate within protected corridors, mineral wool insulation may prove preferable. The A1 non-combustible rating eliminates concerns about fire contribution, simplifying approvals and providing additional safety margins. Large-scale commercial projects often standardise on mineral wool throughout mechanical services installations to ensure consistency and simplify procurement.

Fire Compartments and Protected Escape Routes

Building Regulations impose the most stringent requirements within fire compartments, protected stairwells, corridors, and circulation spaces. These areas demand materials that neither ignite readily nor contribute to fire development, making A1-rated mineral wool the logical specification. Rockwool Rocklap and similar stone wool products satisfy these requirements whilst maintaining thermal performance necessary for system efficiency.

Service penetrations through compartment walls require particular attention. Fire rated pipe insulation must coordinate with appropriately certified firestop systems to maintain compartmentation integrity. The combination prevents both surface flame spread along insulation and fire passage through the penetration itself, preserving the fire resistance rating of the building element.

Domestic and Light Commercial Applications

Residential properties and smaller commercial buildings may permit broader material choices, though compliance remains mandatory. Domestic heating systems often utilise standard elastomeric foam insulation where building regulations allow, reserving Class O or non-combustible materials for specific locations such as attached garages, integral storage spaces, or routes serving flats.

Even where regulations permit lower fire ratings, specifying Class O pipe insulation provides enhanced safety and future-proofs installations against potential regulatory changes. The marginal cost difference between standard and fire-rated materials proves negligible compared to potential remediation expenses should regulations tighten or building use change.

Reading Fire Rating Certificates and Data Sheets

Verification of fire performance claims demands scrutiny of technical documentation. Reputable manufacturers provide comprehensive certification demonstrating compliance with relevant standards, but understanding what constitutes valid evidence prevents specification of non-compliant materials.

Legitimate fire rating certificates identify the specific product tested, including density, thickness, facing materials, and any adhesives or accessories. Generic certificates covering entire product ranges warrant suspicion; fire performance varies with formulation changes, densities, and dimensional specifications. The certificate should reference precise BS 476 or EN 13501-1 test methods, stating numerical results rather than vague performance claims.

Examine certificate dates to ensure currency. Fire testing conducted decades previously may not reflect current manufacturing processes or formulations. Manufacturers reformulate products for cost reduction, environmental compliance, or performance enhancement; each significant change necessitates re-testing to validate continued fire rating compliance.

Third-party certification schemes such as BBA (British Board of Agrément) certificates or LPCB (Loss Prevention Certification Board) approvals provide additional assurance. These bodies conduct factory inspections and ongoing surveillance, verifying that manufactured products match tested specimens. Such certification demonstrates commitment to quality and compliance beyond minimum regulatory requirements.

Building Regulations Approved Document B Requirements

Approved Document B: Fire Safety establishes the regulatory framework governing fire safety provisions in England and Wales. Equivalent documents exist for Scotland (Technical Handbook Section 2) and Northern Ireland (Technical Booklet E). These publications specify where fire rated pipe insulation becomes mandatory and define acceptable performance levels.

Section 6 of Approved Document B addresses concealed spaces, requiring materials within ceiling voids, floor voids, and enclosed risers to achieve specified fire ratings. Insulation within protected escape routes must typically achieve Class 0 or better (with Class 0 being effectively equivalent to Class O in most contexts). The regulations distinguish between thermoplastic and non-thermoplastic materials, imposing stricter limitations on the former.

Compartmentation requirements demand that pipe insulation passing through fire-resisting walls or floors does not compromise the element's fire resistance. This necessitates coordination between fire rated pipe insulation and certified firestop systems. The complete assembly—pipe, insulation, and firestopping—must achieve the required fire resistance period, typically ranging from 30 to 120 minutes depending on building height and use.

Particular attention applies to cavity barriers and fire stopping around service penetrations. Building Regulations prohibit materials that might shrink excessively or melt away during fire exposure, creating openings for flame and smoke passage. Non-combustible mineral wool insulation inherently satisfies these requirements, whilst combustible materials require careful assessment of their performance under fire conditions.

Practical Specification Considerations

Beyond regulatory compliance, several practical factors influence insulation fire rating specifications. Balancing fire safety with thermal performance, cost, installation efficiency, and long-term durability creates optimal outcomes.

• Project budget constraints may favour cost-effective solutions where regulations permit flexibility, reserving premium materials for critical locations
• Installation complexity affects labour costs; flexible materials reduce fitting time but may offer lower fire ratings than rigid alternatives
• Maintenance access requirements influence material selection; frequently serviced pipework benefits from easily removable insulation
• Environmental conditions such as moisture exposure, temperature extremes, or chemical presence affect material longevity and performance
• Acoustic performance requirements may necessitate mineral wool despite higher material costs
• Insurance stipulations sometimes mandate specific fire ratings exceeding regulatory minimums

Early engagement with building control and fire safety consultants streamlines approval processes. Presenting comprehensive technical documentation demonstrating fire rating compliance prevents delays and modification orders. Where novel applications or unusual configurations arise, advance discussion establishes acceptable solutions before procurement and installation commence.

Premium Fire-Rated Insulation Solutions

PipeLagging.com maintains extensive stocks of certified fire rated pipe insulation from industry-leading manufacturers. Our range encompasses mineral wool, elastomeric, and phenolic formulations, ensuring availability of appropriate materials for any specification or application.

Armaflex Class O products deliver flexible, moisture-resistant insulation suitable for commercial HVAC systems requiring BS 476 compliance. The closed-cell structure prevents condensation whilst achieving Class O fire rating certification. Available in tube and sheet formats with various wall thicknesses, Armaflex accommodates pipe sizes from 6mm to 168mm diameter.

Rockwool Rocklap represents the gold standard for fire-critical applications, achieving A1 Euroclass non-combustible rating. The stone wool construction withstands extreme temperatures without degradation, providing passive fire protection alongside thermal and acoustic insulation. Foil-backed variants combine moisture resistance with superior fire performance, ideal for plant rooms and protected escape routes.

Kingspan Kooltherm phenolic pipe insulation offers exceptional thermal efficiency with impressive fire ratings. The rigid sections suit applications requiring dimensional stability and maximum thermal performance within constrained spaces. Class O certification ensures regulatory compliance whilst ultra-low lambda values minimise heat loss and energy consumption.

All products supplied through PipeLagging.com include comprehensive technical documentation, fire certificates, and installation guidance. Our technical support team assists with material selection, ensuring specifications satisfy both performance requirements and regulatory obligations. Next-day delivery throughout the UK maintains project schedules, whilst bulk pricing accommodates large-scale installations.

Conclusion

Understanding insulation fire rating systems empowers informed material selection that balances safety, performance, and cost. The UK's BS 476 standards and European Euroclass system provide robust frameworks for assessing fire performance, with Class O pipe insulation representing the benchmark for commercial applications. Mineral wool products achieve the highest non-combustible A1 rating, whilst advanced elastomeric and phenolic formulations deliver Class O performance with enhanced installation characteristics.

Regulatory compliance demands careful attention to Building Regulations Approved Document B requirements, particularly regarding escape routes, compartmentation, and concealed spaces. Verification through legitimate test certificates from accredited laboratories protects against non-compliant materials and associated liabilities. Application-specific selection—considering HVAC systems, fire compartments, or domestic installations—optimises outcomes whilst maintaining safety standards.

Professional specifiers recognise that fire rated pipe insulation constitutes essential building safety infrastructure rather than optional enhancement. The minimal cost differential between standard and fire-rated materials pales beside potential consequences of fire incidents or regulatory non-compliance. Partnering with knowledgeable suppliers ensuring product certification and technical support streamlines specification and procurement, delivering compliant installations that protect buildings and occupants for decades.
