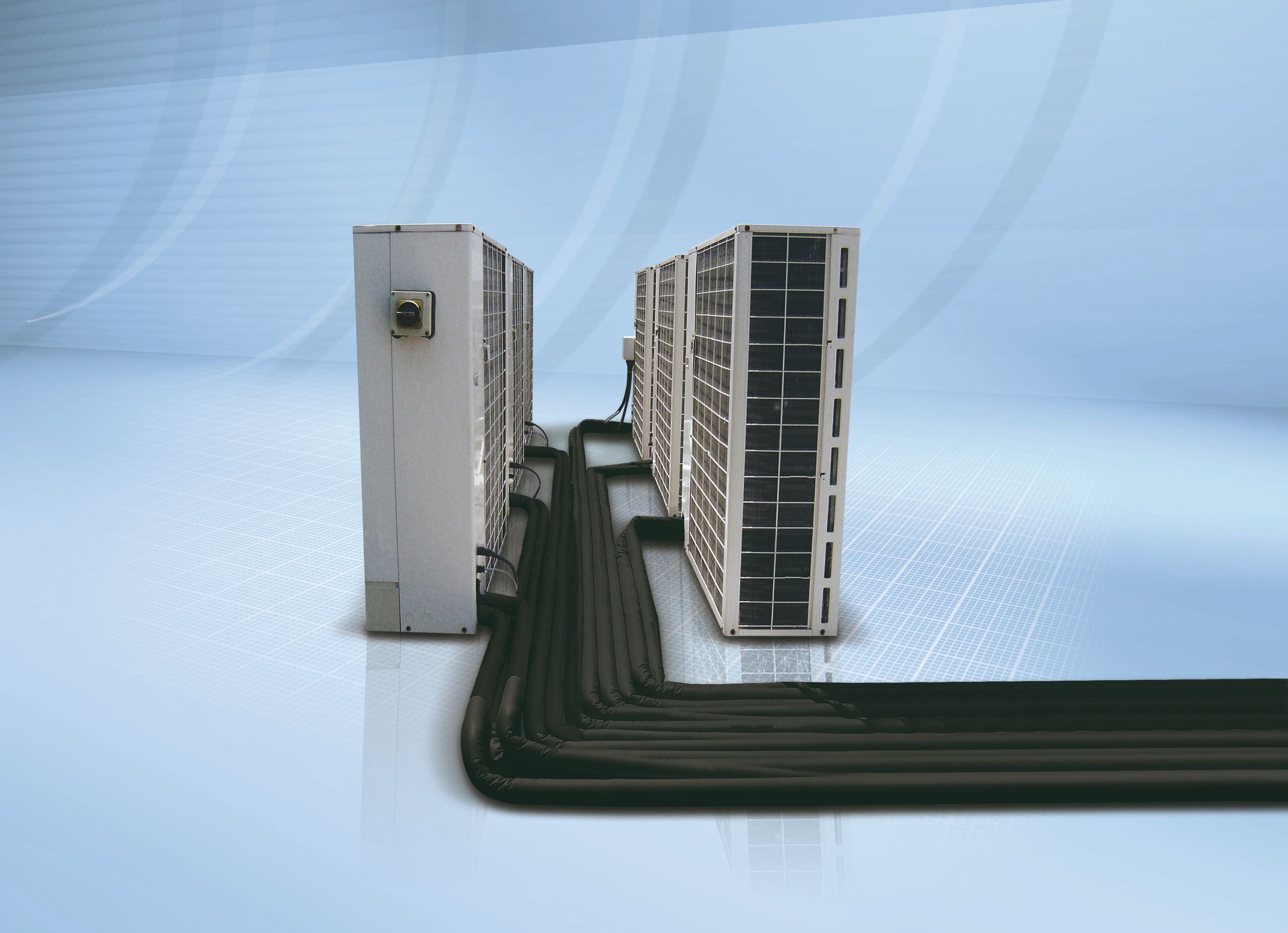

Armaflex Tuffcoat Underground Pipe Insulation: The Complete Guide
Understanding Armaflex Tuffcoat: Factory-Applied Protection for Buried Pipework
Armaflex Tuffcoat represents a specialised evolution of conventional elastomeric insulation, specifically engineered for subterranean and external installations. This premium product comprises the renowned closed-cell flexible elastomeric foam of standard Armaflex, enhanced with a factory-bonded, robust protective coating that transforms it into a formidable barrier against the harsh realities of below-ground environments. The tough outer layer—a durable polymeric membrane—is integrally laminated to the insulation during manufacture, ensuring consistent protection across every metre of material.
Unlike field-applied protective measures that can prove inconsistent or labour-intensive, the factory-applied coating on Tuffcoat delivers uniform defence from the moment of installation. This engineered solution addresses the fundamental incompatibility between standard elastomeric insulation and the demanding conditions found in trenches, ducts, and exposed outdoor locations. The coating's tenacity provides reassurance that the underlying insulation matrix will maintain its thermal efficiency and structural integrity throughout the service life of the installation, even when subjected to soil pressures, moisture ingress attempts, and atmospheric degradation forces.
Why Standard Armaflex Falls Short in Underground Applications
Conventional Armaflex pipe insulation, whilst exemplary for interior mechanical services, lacks the fortification necessary for subterranean deployment. The primary vulnerabilities emerge from three distinct environmental assaults: ultraviolet radiation, moisture exposure, and mechanical trauma. When subjected to direct sunlight, the elastomeric foam experiences photodegradation—a process wherein UV wavelengths break molecular bonds within the polymer structure, leading to surface crazing, embrittlement, and eventual disintegration of the material's cellular architecture.Moisture presents an equally pernicious threat. Although Armaflex possesses inherent moisture resistance owing to its closed-cell structure, prolonged contact with groundwater or condensation can compromise edge seals and penetrate any imperfections in the material. Below-ground installations face constant moisture exposure from capillary action, seasonal water table fluctuations, and saturated backfill materials. Mechanical damage constitutes the third vulnerability—backfill operations, soil settlement, and compressive forces from overburden can crush, tear, or abrade unprotected insulation, creating thermal bridges and allowing ingress pathways for moisture.These environmental stressors work synergistically to accelerate degradation. A UV-weakened surface becomes more susceptible to mechanical damage, which in turn permits moisture infiltration, ultimately rendering the insulation thermally ineffective. Recognising these limitations, specifiers require purpose-designed solutions for outdoor and buried applications where standard materials prove inadequate.Tuffcoat's Protective Properties: Engineered Resilience
Resistance to UV, Ozone and Weathering
The protective coating applied to Tuffcoat exhibits exceptional resistance to photolytic degradation, effectively shielding the underlying elastomeric foam from the destructive influence of ultraviolet radiation. This weatherproof membrane contains UV-stabilising additives that absorb and dissipate harmful wavelengths before they can penetrate to the insulation substrate. Ozone resistance—equally critical for outdoor installations—prevents the oxidative cracking that plagues unprotected elastomers exposed to atmospheric pollutants and ground-level ozone concentrations.Temperature cycling, precipitation, and freeze-thaw phenomena further challenge outdoor insulation systems. Tuffcoat's coating maintains its flexibility and adhesion across a broad temperature spectrum, resisting the embrittlement that affects inferior protective layers during winter conditions whilst avoiding softening or delamination during summer heat. This weathering resistance ensures multi-decade performance even in the most demanding climatic zones throughout the United Kingdom and beyond.Mechanical Protection Against Soil Pressure and Backfill
Subterranean installations subject insulation to compressive forces, abrasion from angular aggregate particles, and potential impact damage during backfilling operations. The tough polymeric coating on Tuffcoat functions as an armour layer, distributing point loads across a broader area and resisting puncture from sharp stones or construction debris. This mechanical resilience proves particularly valuable when insulated pipes traverse less-than-ideal trench conditions or when rapid backfilling procedures preclude meticulous bedding material placement.The coating's abrasion resistance withstands the grinding action of settling soil and the differential movement that occurs as groundwater levels fluctuate seasonally. By maintaining the physical integrity of the insulation envelope, Tuffcoat prevents the compression-induced thermal degradation that compromises unprotected materials, ensuring consistent R-values throughout the installation's operational lifetime.Maintaining Armaflex's Closed-Cell Vapour Barrier
Perhaps most crucially, Tuffcoat preserves the fundamental vapour barrier properties that distinguish elastomeric insulation from fibrous alternatives. The closed-cell structure of the underlying Armaflex foam provides inherent resistance to water vapour transmission, preventing condensation formation on cold pipe surfaces—a critical requirement for refrigeration lines, chilled water systems, and air-conditioning applications. The protective coating adds a supplementary barrier layer whilst safeguarding the cellular structure from physical damage that might compromise individual cells and create moisture pathways.This dual-barrier approach delivers superior protection for installations where vapour control is paramount. Unlike mineral fibre insulations that require separate vapour retarders and meticulous sealing, Tuffcoat provides integral moisture protection that remains effective even when subjected to the challenging conditions found in below-ground environments.Applications: Where Tuffcoat Excels
Buried pipework constitutes the primary application domain for Tuffcoat underground insulation. District heating mains, chilled water distribution networks, and process piping that traverse between buildings benefit enormously from Tuffcoat's protective attributes. The insulation maintains thermal efficiency whilst resisting the moisture, mechanical forces, and chemical exposure inherent in trench installations."Below-ground services demand insulation solutions that recognise the hostile realities of subterranean environments—Tuffcoat delivers that recognition through engineered protection."Exposed outdoor pipes represent another ideal application. Rooftop refrigeration lines, external condensate drainage, and weather-exposed HVAC interconnections all require protection from solar radiation and precipitation. Tuffcoat's UV resistance and weatherproofing capabilities ensure longevity without the aesthetic degradation and performance decline that affects unprotected materials. Below-ground services within basement car parks, service tunnels, and crawl spaces—environments where physical protection matters but full burial isn't involved—similarly benefit from Tuffcoat's robust construction.
Tuffcoat Versus Armaflex HT: Understanding Temperature Ratings
A common source of confusion amongst specifiers centres on the distinction between Tuffcoat and Armaflex HT, both representing enhanced variants of standard Armaflex insulation. The differentiation hinges primarily on temperature capability rather than protective coating. Armaflex HT (High Temperature) is formulated to withstand elevated operating temperatures up to 150°C, making it suitable for high-temperature hot water systems, steam condensate lines, and process heating applications where conventional Armaflex's maximum service temperature of 110°C proves insufficient.
Tuffcoat, conversely, focuses on environmental protection rather than thermal elevation. Its temperature rating aligns with standard Armaflex—appropriate for the vast majority of HVAC, refrigeration, and plumbing installations but not intended for high-temperature services. The protective coating addresses external environmental threats rather than internal thermal stress. For applications requiring both high-temperature capability and outdoor protection, specifiers should investigate whether Armaflex HT with field-applied protective measures or alternative insulation technologies better suit the project parameters.
The selection between these products depends entirely on the dominant challenge: if elevated pipe temperatures pose the primary concern, Armaflex HT prevails; if environmental exposure dictates material choice, Tuffcoat emerges as the appropriate solution. Some installations may require neither specialised variant, whilst particularly demanding projects might necessitate bespoke protective strategies beyond standard product offerings.
Installation Methodology: Jointing, Sealing and Overlap Tape
Proper installation proves essential to realising Tuffcoat's protective potential. The inherent properties of the material can only deliver their promised performance when installation procedures maintain system integrity. Jointing represents the critical vulnerability in any insulation system—the intersection points where individual tube sections meet create potential pathways for moisture ingress and thermal bridging if not executed meticulously.
Longitudinal seams along the slit in pre-slit Tuffcoat tubes require adhesive bonding using Armaflex-compatible elastomeric contact adhesive. The surfaces must be clean, dry, and free from contamination prior to adhesive application. Following adhesive flash-off according to manufacturer specifications, the seam edges should be pressed firmly together to achieve complete contact and molecular bonding. This creates a continuous insulation envelope without gaps or voids.
Butt joints—where tube ends meet—demand equal attention. Rather than simply abutting the insulation sections, best practice involves creating a bevelled joint or utilising purpose-designed jointing techniques that maximise contact area. Specialist overlap tape specifically formulated for Tuffcoat applications provides additional security at these junctions. This self-adhesive tape, featuring compatibility with the protective coating, wraps around joints to create a weatherproof seal that prevents moisture ingress at these vulnerable intersections.
For below-ground installations, particular attention must be paid to ensuring complete sealing before backfilling commences. Once buried, remedial work becomes prohibitively expensive and disruptive. Visual inspection of all joints, combined with gentle mechanical testing to confirm adhesive bond integrity, provides assurance that the installation will perform as designed throughout its service life.
Available Bore Sizes and Wall Thicknesses
Tuffcoat underground insulation is manufactured in a comprehensive range of bore sizes to accommodate the spectrum of pipe diameters encountered in building services installations. Smaller bore sizes typically commence at 15mm internal diameter, progressing through common domestic and commercial pipe sizes including 22mm, 28mm, 35mm, 42mm, 54mm, and extending to larger diameters of 76mm, 89mm, 108mm, and beyond for main distribution pipework.
Wall thickness selection depends on the thermal performance requirements, pipe operating temperature, and ambient conditions. Standard wall thicknesses typically range from 9mm for smaller pipes with modest insulation requirements through to 19mm, 25mm, 32mm, and occasionally thicker sections for demanding thermal applications or extremely cold service temperatures. The relationship between pipe size and wall thickness follows established thermal engineering principles, with larger diameter pipes often requiring proportionally greater insulation thickness to achieve equivalent thermal resistance.
Availability of specific size and thickness combinations varies based on manufacturing schedules and market demand. Certain specialised dimensions may require extended lead times or minimum order quantities. Consultation with specialist suppliers ensures that project-specific requirements can be met efficiently, whether through stock items or specially-manufactured products for larger installations.
Pipe Diameter
Common Wall Thicknesses
Typical Applications
15mm - 28mm
9mm, 13mm, 19mm
Domestic heating, small branch lines
35mm - 54mm
13mm, 19mm, 25mm
Commercial HVAC, refrigeration branches
76mm - 108mm
19mm, 25mm, 32mm
Main distribution, chilled water mains
Tuffcoat Versus PVC-Clad Mineral Wool for Larger Pipes
As pipe diameters increase beyond approximately 150mm, specifiers face a decision point between continuing with elastomeric solutions like Tuffcoat and transitioning to mineral fibre insulation with PVC or aluminium cladding. Each approach offers distinct advantages, and the optimal choice depends on multiple project-specific factors including thermal requirements, budget constraints, installation environment, and performance priorities.
PVC-clad mineral wool systems—utilising materials such as Rocklap pipe sections encased in protective jacketing—typically offer economic advantages on larger diameter pipework. The mineral fibre insulation itself costs less per cubic metre than elastomeric foam, and for large pipes requiring substantial insulation volumes, this differential becomes significant. Additionally, mineral wool provides excellent fire performance characteristics and higher temperature capability, relevant considerations for certain industrial applications.
However, Tuffcoat retains compelling advantages even on larger pipework. The integral vapour barrier eliminates the need for separate vapour retarders and the meticulous taping that mineral fibre systems demand. Installation speed often favours elastomeric solutions, particularly where labour costs represent a significant project component. The closed-cell structure provides superior resistance to water absorption should cladding become damaged—a consideration for installations in flood-prone areas or locations with high water tables.
Thermal conductivity comparisons generally favour mineral fibre materials, meaning thinner insulation can achieve equivalent thermal resistance. Yet this advantage diminishes when accounting for the vapour barrier and protective cladding that mineral systems require. For buried applications specifically, the inherent moisture resistance of Tuffcoat offers peace of mind that fibrous alternatives struggle to match, even with ostensibly waterproof cladding systems that may develop leaks at joints or suffer mechanical damage.
The inflection point where one technology supersedes the other varies by project circumstances. As a general guideline, elastomeric solutions including Tuffcoat remain competitive through approximately 150-200mm pipe diameters, beyond which mineral fibre systems increasingly demonstrate cost-effectiveness. However, applications prioritising moisture security, installation simplicity, or vapour control may justify Tuffcoat specification even on larger pipework where mineral alternatives would conventionally prevail.
Sourcing Tuffcoat and Outdoor Pipe Insulation Solutions
Specifying appropriate materials represents only the initial step—sourcing those products from knowledgeable suppliers with comprehensive stock holdings ensures project timelines and quality standards are met. PipeLagging.com maintains extensive inventory of Armaflex Tuffcoat across the most commonly specified sizes and thicknesses, supporting both planned projects and urgent requirements with rapid despatch capabilities.
Beyond Tuffcoat specifically, a complete outdoor pipe insulation collection encompasses complementary products for varied applications. This includes standard Armaflex for protected outdoor locations, mineral fibre solutions with weatherproof cladding for larger installations, and specialist accessories including adhesives, tapes, and jointing materials formulated for external use. Technical support from experienced insulation specialists helps navigate product selection, ensuring the chosen solution aligns with project-specific thermal, environmental, and budgetary parameters.
The intricacies of buried pipe lagging extend beyond simple material selection. Proper specification demands consideration of soil conditions, groundwater exposure, backfill procedures, long-term settlement, and maintenance access. Engaging with suppliers who understand these complexities—rather than simply providing commodity materials—elevates project outcomes and minimises the risk of premature failure or underperformance. Premium products from manufacturers like Armacell, combined with knowledgeable specification support, deliver the reliability that critical building services infrastructure demands.
For mechanical contractors, building services professionals, and facilities managers responsible for below-ground and external pipework insulation, Tuffcoat represents a proven solution that addresses the fundamental challenges of these demanding environments. Its factory-applied protection, moisture resistance, and mechanical durability provide the assurance that insulation performance will persist throughout decades of service, protecting both thermal efficiency and the substantial capital investment represented by buried mechanical services.
