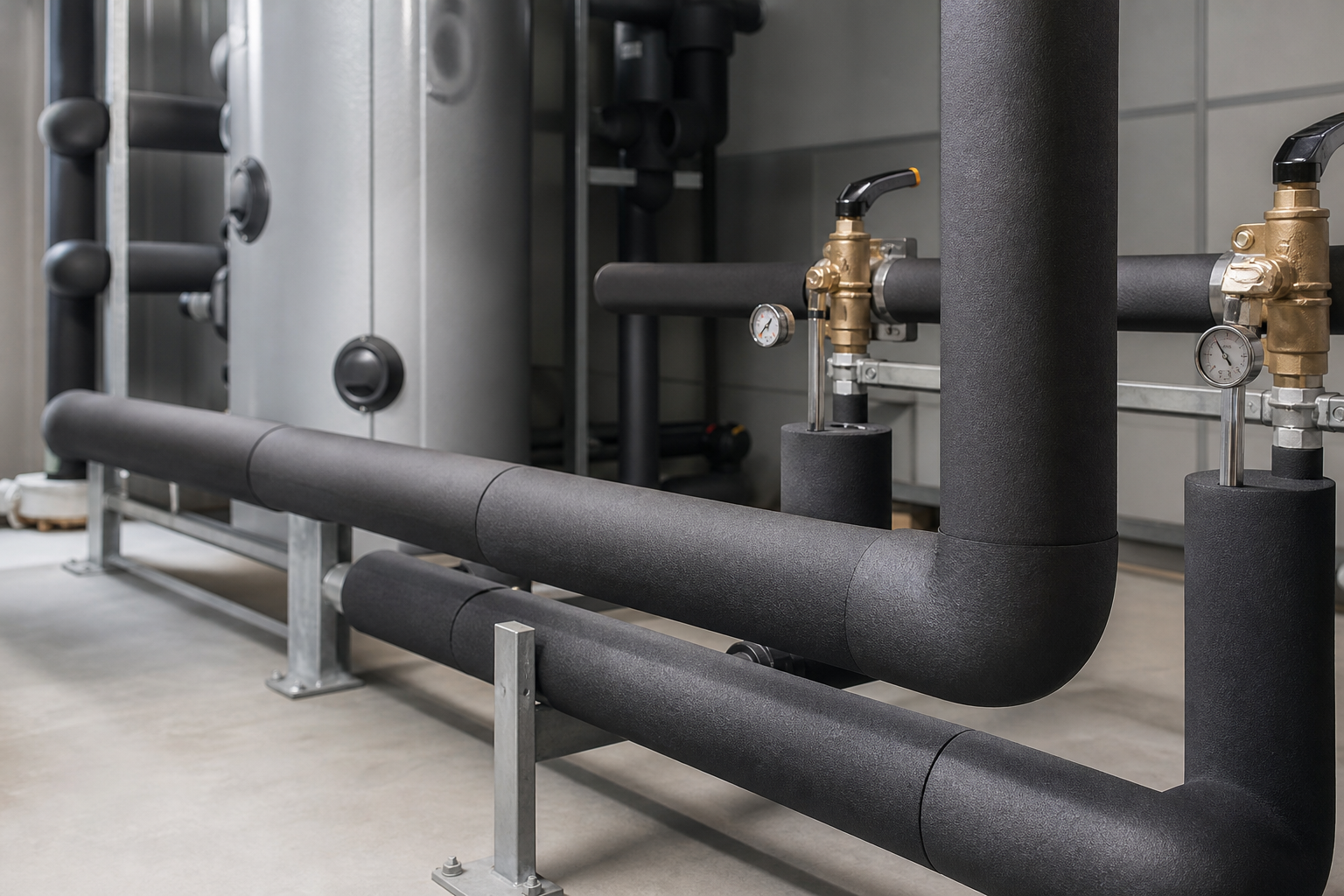

Armaflex Class O Pipe Insulation — Technical Guide

When specifying thermal insulation for pipework in commercial buildings, healthcare facilities, or public sector projects, fire performance credentials cannot be an afterthought. Armaflex Class O pipe insulation combines exceptional thermal efficiency with enhanced fire-rated characteristics, meeting stringent UK building regulations whilst delivering the moisture resistance and energy-saving properties that closed-cell elastomeric materials are renowned for. This technical guide explores the classification, properties, applications, and installation considerations for Armaflex Class O—a material that has become the specification standard for contractors who refuse to compromise on safety or performance.

What Class O Means — Fire Rating Classification Under BS 476

Class O represents a UK-specific fire performance designation defined under the Building Regulations and assessed through British Standard BS 476. Contrary to common misunderstanding, Class O is not a singular test but rather a composite classification requiring materials to satisfy two distinct criteria: they must achieve Class 1 surface spread of flame when tested to BS 476-7, and simultaneously exhibit a fire propagation index (I) not exceeding 12 and a sub-index (i1) not exceeding 6 when assessed under BS 476-6.

This dual-threshold approach ensures that insulation materials not only resist initial ignition but also limit the contribution of combustible content to developing fires. For elastomeric foam insulation such as Armaflex, achieving Class O status necessitates careful formulation chemistry and rigorous quality assurance throughout manufacturing. The classification provides architects, M&E consultants, and building control officers with confidence that specified materials meet baseline fire safety expectations for projects governed by Approved Document B.

Why Class O Matters — Building Regulations, Insurance, Commercial Specifications

UK building regulations mandate specific fire performance standards for insulation materials depending on building height, occupancy classification, and location within the structure. Class O insulation becomes compulsory in numerous scenarios: escape routes, circulation spaces, protected shafts, and buildings exceeding certain height thresholds all typically require materials meeting this standard as a minimum.

Insurance underwriters scrutinise material specifications with increasing rigour following high-profile incidents. Projects lacking appropriate fire-rated insulation may face elevated premiums, coverage exclusions, or outright policy refusal. Furthermore, many public sector frameworks and commercial specifications—particularly within healthcare, education, and local authority estates—mandate Class O as a non-negotiable prerequisite, regardless of whether Building Regulations would technically permit lower-rated alternatives.

For contractors bidding on competitive tenders, specifying Class O materials demonstrates due diligence and risk mitigation. It simplifies compliance documentation, accelerates building control approval, and provides contractual protection should fire safety questions arise during handover or subsequent audits.

Armaflex Class O Properties

The Armaflex Class O range from Armacell delivers fire-enhanced performance whilst retaining the fundamental characteristics that have established elastomeric foam as the preferred solution for condensation control and energy conservation on cold pipework systems.

Closed-Cell Nitrile Rubber Foam

At the microstructural level, Armaflex Class O consists of millions of discrete, non-interconnecting cells formed from synthetic nitrile rubber. This closed-cell architecture is pivotal: each individual cell acts as a miniature vapour barrier, preventing moisture ingress and eliminating the capillary pathways that would otherwise allow condensation to migrate through the insulation matrix. The material exhibits exceptional compressive strength and dimensional stability, resisting deformation under mechanical stress or thermal cycling.

Lambda Value (Thermal Conductivity)

Thermal conductivity—expressed as lambda (λ) value—quantifies a material's propensity to conduct heat. Armaflex Class O typically achieves lambda values in the region of 0.034 to 0.036 W/(m·K) at 0°C mean temperature, positioning it amongst the most thermally efficient pipe insulation solutions available. This low conductivity translates directly into reduced insulation thickness requirements, minimising installation footprint whilst maximising energy savings and condensation prevention efficacy.

Temperature Range (-200°C to +105°C)

The operational temperature envelope for Armaflex Class O extends from cryogenic conditions down to -200°C through to continuous service temperatures of +105°C. This remarkable versatility permits specification across virtually all HVAC and refrigeration applications encountered in building services engineering—from ultra-low temperature pharmaceutical cold rooms to high-temperature heating flow pipework operating at the upper threshold of domestic hot water systems.

Vapour Resistance

Vapour diffusion resistance—quantified by the µ-value—measures how effectively insulation repels moisture transmission. Armaflex Class O exhibits µ-values exceeding 10,000, creating an essentially impermeable barrier to water vapour. This characteristic proves critical on chilled water, refrigeration, and air conditioning pipework where surface temperatures fall below ambient dewpoint. Without adequate vapour resistance, atmospheric moisture would penetrate insulation, condense on cold pipe surfaces, and precipitate corrosion, mould growth, and thermal performance degradation.

Armaflex Class O Product Range at PipeLagging.com

PipeLagging.com stocks comprehensive Armaflex Class O solutions engineered for professional installation across commercial and industrial projects. Our Armaflex Self-Seal Pipe Insulation incorporates factory-applied adhesive along the longitudinal seam, eliminating the need for separate contact adhesive application during installation. This self-seal technology accelerates fitment, ensures consistent joint integrity, and reduces the risk of vapour seal compromise—a common failure mode when conventional adhesive application proves inadequate.

Available in 2-metre lengths across bore sizes from 6mm to 168mm and wall thicknesses from 9mm to 32mm, the self-seal range addresses condensation control and energy conservation requirements across the full spectrum of pipework dimensions encountered in building services. The Class O fire rating ensures compliance with building regulations and commercial specifications without sacrificing the thermal or moisture-resistant properties that make elastomeric foam the material of choice for cold pipe applications.

For projects requiring comprehensive Armaflex solutions beyond Class O specifications, explore our complete Armaflex Pipe Insulation Collection. This curated range encompasses standard Armaflex, Armaflex Ultima for enhanced sustainability credentials, Armaflex Protect fire-sleeve systems, and specialist accessories including adhesives, tapes, and fixing systems—providing a single-source procurement solution for contractors managing complex insulation packages.

Applications — HVAC, Chilled Water, Refrigeration, Air Conditioning

Armaflex Class O finds specification across numerous building services applications where fire performance, condensation control, and thermal efficiency intersect. Chilled water pipework in commercial office developments, hotels, and retail environments benefits from the material's superior vapour resistance, preventing the unsightly ceiling staining and fabric damage associated with condensation drip. Refrigeration installations in food processing, pharmaceutical manufacturing, and cold storage facilities exploit the extended temperature range and closed-cell structure to maintain process temperatures whilst safeguarding against moisture ingress.

Air conditioning systems—particularly in high-rise residential, healthcare, and educational establishments where Class O becomes mandatory—rely on Armaflex to eliminate condensation risk on supply ductwork and refrigerant pipework whilst satisfying building control fire safety stipulations. Heat recovery ventilation systems, district heating secondary pipework, and low-temperature heating circuits all represent viable application scenarios where the material's thermal performance and regulatory compliance deliver tangible project value.

Available Formats — Tubes, Sheets, Self-Seal

Armaflex Class O is manufactured in multiple formats to accommodate diverse installation geometries and contractor preferences. Pre-formed tubes—available with longitudinal slits for retrofit applications or as intact sections for new installations—suit linear pipework runs and provide rapid coverage with minimal cutting and wastage. Sheet material permits fabrication of bespoke profiles for valves, flanges, expansion bellows, and irregular plant connections where standard tube dimensions prove unsuitable.

Self-seal tube formats incorporate factory-applied contact adhesive protected by release paper along the longitudinal seam. Once the insulation is positioned around the pipe and the release paper removed, compressing the seam activates the adhesive, creating a permanent vapour-tight joint without requiring separate adhesive application. This innovation substantially reduces installation time, eliminates adhesive wastage and mess, and ensures consistent joint quality regardless of operative skill level—a consideration of particular relevance on large-scale projects employing sub-contracted labour gangs.

How to Specify Correctly — Bore Size, Wall Thickness, Part L Compliance

Accurate specification begins with precise pipework dimensional data. Armaflex Class O tubes are designated by bore size (internal diameter) rather than pipe outer diameter, so specifiers must reference actual pipe OD and select the corresponding insulation bore accordingly. Common discrepancies arise with copper tube where nominal sizes differ from actual dimensions, or where pipework operates to European metric standards rather than imperial sizing conventions.

Wall thickness selection demands thermal calculation in accordance with BS 5422 or CIBSE Guide C, accounting for operating temperature, ambient conditions, target surface temperature (for condensation control), or economic thickness criteria (for energy conservation). Part L of the Building Regulations establishes minimum insulation thicknesses for heating and hot water systems; whilst not directly applicable to chilled water or refrigeration pipework, the methodology provides a rational framework for specification decisions.

Documentation should explicitly reference product codes, bore sizes, wall thicknesses, and fire performance standards to eliminate procurement ambiguity and ensure site deliveries match design intent. Where projects involve multiple pipe sizes and insulation thicknesses, tabulated schedules cross-referenced to M&E drawings prevent installation errors and facilitate material quantity verification.

Difference Between Class O and Standard Armaflex

Standard Armaflex formulations typically achieve Class 1 surface spread of flame to BS 476-7 but do not satisfy the fire propagation index requirements necessary for Class O designation. This distinction proves critical in regulated environments: whilst standard Armaflex delivers identical thermal and moisture-resistant performance, its application remains restricted in buildings or locations where Class O becomes mandatory under building regulations or project specifications.

Visually, Class O and standard variants appear similar—both exhibit the characteristic black nitrile rubber appearance and closed-cell structure. Differentiation relies on product labelling, technical datasheets, and certification documentation. Contractors must exercise vigilance during procurement and goods-inward checks to prevent inadvertent substitution, as installing non-compliant materials risks building control rejection, costly remediation, and potential contractual liability.

From a performance perspective beyond fire rating, both materials share equivalent lambda values, vapour resistance characteristics, temperature ranges, and installation methodologies. The Class O variant incorporates flame-retardant additives within the polymer matrix to achieve enhanced fire performance without compromising the fundamental attributes that define elastomeric foam insulation.

Installation Tips — Adhesive, Joints, Vapour Seal Integrity

Successful Armaflex Class O installation hinges upon meticulous attention to jointing technique and vapour seal continuity. All longitudinal seams and end-to-end butt joints must be bonded with compatible contact adhesive—Armacell's proprietary Armaflex adhesives ensure chemical compatibility and long-term bond durability. Apply adhesive to both mating surfaces, allow flash-off until tacky (typically 5-15 minutes depending on ambient conditions), then bring surfaces together under firm pressure.

Butt joints between successive tube sections should be closely abutted with minimal gap, adhesive-bonded, and finished with Armaflex tape to seal the external joint interface. Avoid stretching or compressing insulation during installation as this distorts cell structure and compromises thermal performance. Where pipework passes through walls, floors, or structural penetrations, maintain insulation continuity and seal interfaces with compatible gap-filling materials to prevent thermal bridging and vapour infiltration pathways.

On valves, flanges, and fittings, fabricate bespoke covers from Armaflex sheet material, ensuring all edges are adhesive-bonded and taped. Removable covers should incorporate overlapping flaps secured with contact adhesive or hook-and-loop fasteners to permit maintenance access whilst preserving vapour seal integrity during normal operation. Pre-insulated pipework supports prevent thermal bridging and condensation formation at support locations—a frequently overlooked detail that undermines overall system performance.

Links to Armaflex Class O Products and Armaflex Collection

PipeLagging.com maintains extensive stock holdings of Armaflex Class O insulation across the full dimensional range, ensuring same-day despatch for urgent project requirements. Our Armaflex Self-Seal Class O tubes streamline installation on commercial projects where programme acceleration and quality assurance remain paramount considerations.

Beyond Class O materials, our complete Armaflex collection encompasses standard formulations, enhanced sustainability variants, acoustic insulation solutions, and the comprehensive accessory range necessary to deliver professional installations—Armaflex adhesive 520, Armaflex sealing tape, and specialist fixings all available for consolidated ordering.

Technical support remains available to assist with product selection, thermal calculations, building regulation interpretation, and installation methodology queries. Whether specifying insulation for new-build commercial developments, refurbishment projects within occupied premises, or industrial process applications with demanding performance criteria, our team provides the expertise to ensure specification accuracy and project success.

Armaflex Class O pipe insulation represents the synthesis of fire safety compliance and technical performance—a material engineered for contractors who recognise that regulatory adherence and operational excellence need not exist in opposition. By understanding the classification framework, material properties, application suitability, and installation imperatives outlined in this guide, specifiers and installers can deploy Armaflex Class O with confidence across the demanding environments that characterise modern building services engineering.
