Tubolit DuoSplit 1/4" – 3/8" Pre-Insulated Copper Pipe – 25m Coil

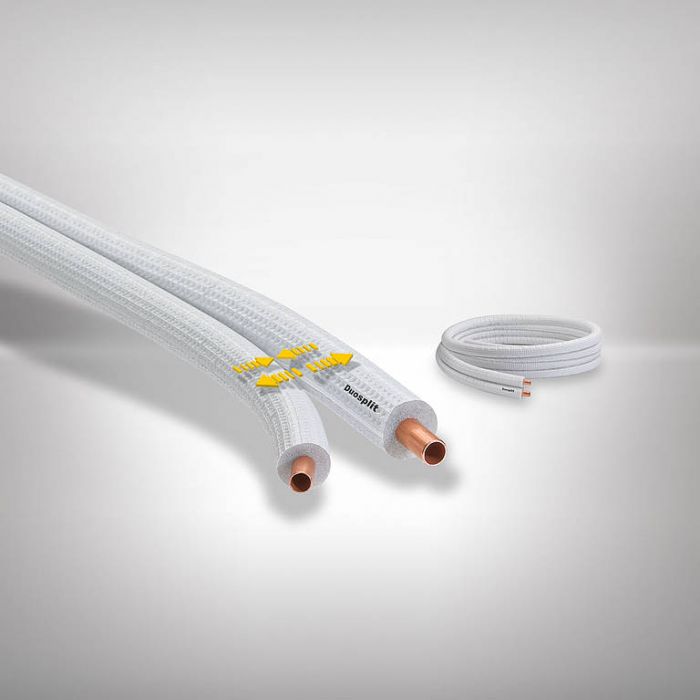

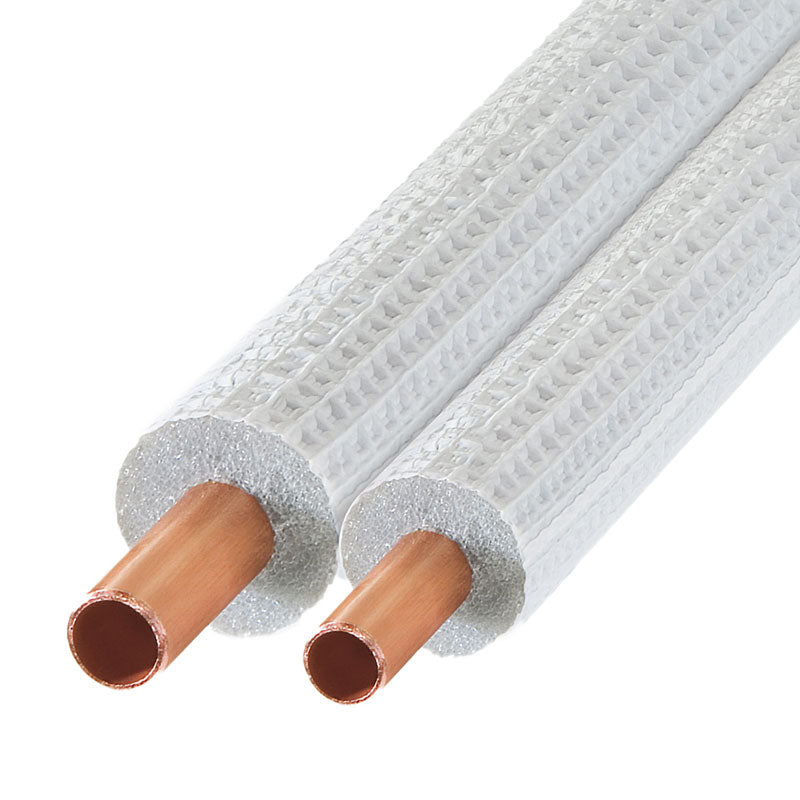

Armacell Tubolit DuoSplit DZC-061088/E25 is a pre-insulated twin copper-pipe system for connecting indoor and outdoor units in split and multi-split air-conditioning, heat-pump and refrigeration installations. It combines soft-annealed seamless refrigeration copper tube to EN 12735-1 with closed-cell polyethylene insulation and a UV-resistant outer facing.
Key Features
- Pipe sizes: 1/4" (6.35mm) and 3/8" (9.53mm)
- Copper wall thickness: 0.8mm on both tubes
- Insulation thickness: 9mm on both tubes
- Pre-insulated outside diameters: 24mm and 28mm
- Coil length: 25 metres
- Service temperature: -50°C to +100°C; Armacell advises contacting its Customer Service Centre for use below 0°C
- Declared thermal conductivity: λd ≤ 0.036 W/(m·K) at 0°C
- Reaction to fire: Euroclass B(L)-s1,d0 for the insulation tube
- UV resistance: rated Very Good by Armacell
- Refrigerant compatibility: suitable for R-410A, R-407C and R32
Maximum Operating Pressure
- 1/4" × 0.8mm copper tube: 159 bar
- 3/8" × 0.8mm copper tube: 101 bar
Applications
- Split air-conditioning systems
- Multi-split air-conditioning systems
- Heat-pump installations
- Refrigeration and cooling equipment
Installation
Armacell states that no special tools are required for installation and that the DuoSplit join-split system allows the paired pipes to be separated and rejoined where needed. The insulation should remain uncut along the full applied length and should be glued to the pipe at both ends; Armacell also recommends protecting the insulation tube ends with tape.
Matching Tubolit DuoSplit accessories are available for system installation. Follow the current Armacell installation instructions and relevant refrigerant-system requirements.
Product Details
- Order code: DZC-061088/E25
- Packaging: 1 × 25m coil per carton
- Insulation material: closed-cell polyethylene foam
- Outer coating: polyolefin-copolymer facing
- Copper standard: EN 12735-1
