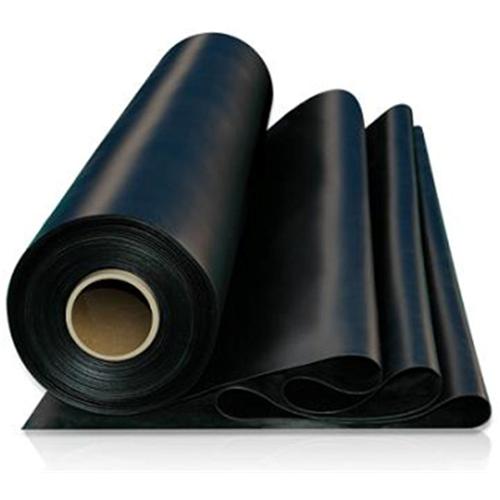

Rubber Insulation Protective PIB Sheeting Chalked 0.5mm x 1m x 25m Roll
Rubber Insulation Protective PIB Sheeting Chalked 0.5mm x 1m x 25m Roll

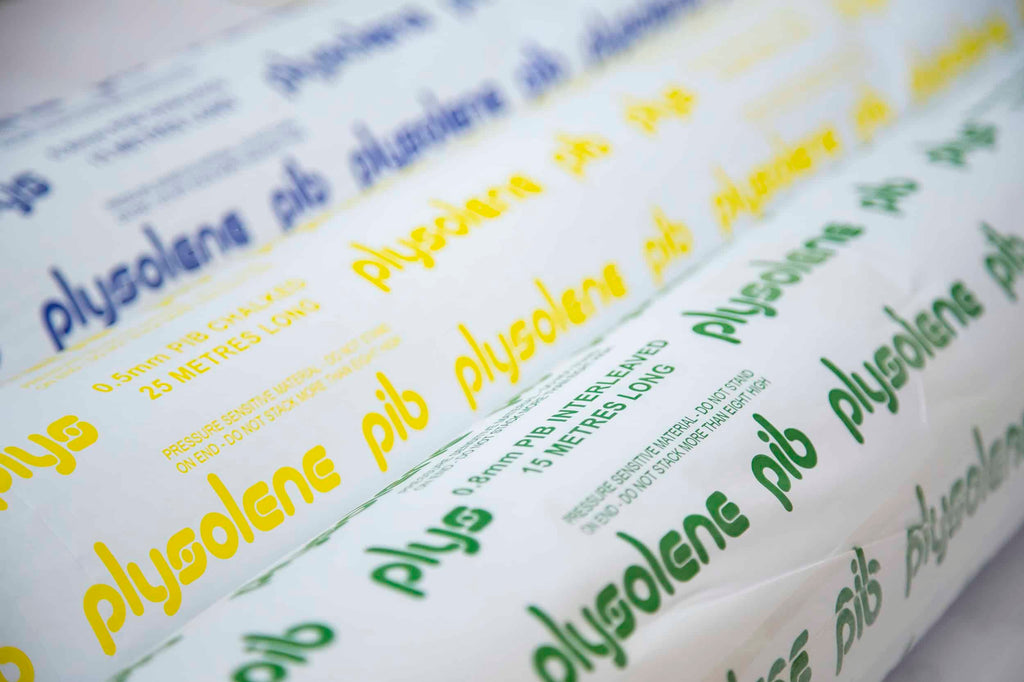

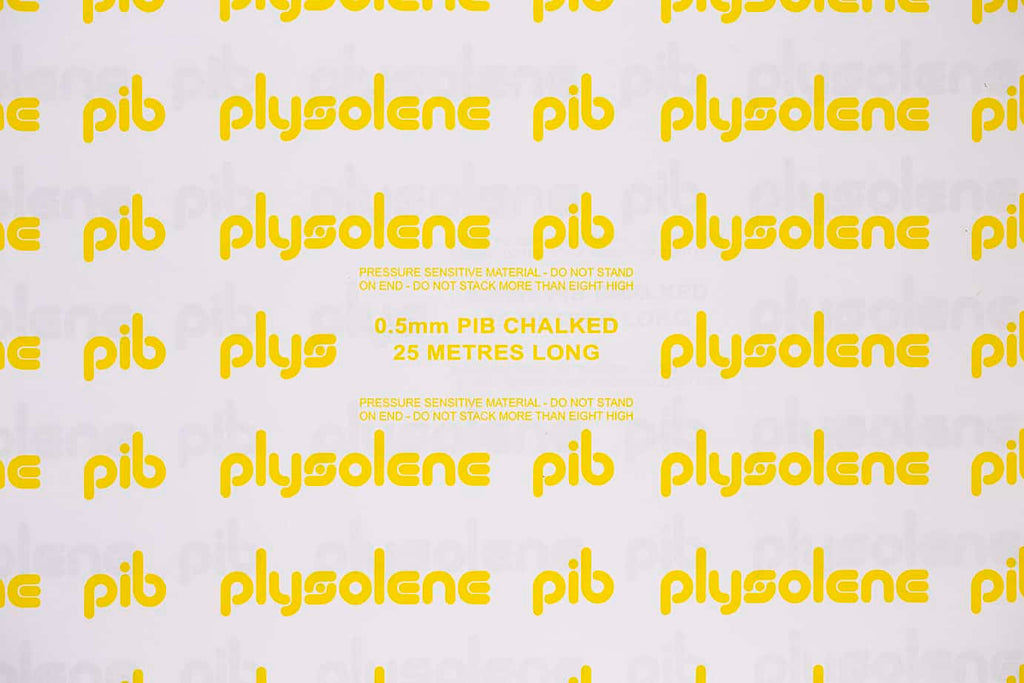

Plysolene PIB Sheeting PIB0.525X1 (0.525m x 1m)
Compact, High-Performance Waterproofing for Smaller Pipes & Fittings
Plysolene PIB0.525X1 is a premium UK-manufactured Polyisobutylene (PIB) thermoplastic sheeting engineered for long-term weatherproofing and corrosion protection of smaller-diameter insulated pipework, instrument lines, valves, and narrow ducting. This 0.525m x 1m sheet delivers the same proven Plysolene quality trusted for over 50 years — now in a compact size ideal for precision and confined-space applications.
Key Features
- Exceptional Durability: Fully resistant to UV, ozone, and weathering — no cracking, chalking, or embrittlement even after decades of exposure.
- Broad Temperature Performance: Remains flexible and effective from -30°C to +100°C — suitable for chilled water, steam, and process lines.
- Superior Chemical Resistance: Impervious to oils, acids, alkalis, salts, and industrial chemicals.
- Solvent Weldable: Forms permanent, monolithic seals via solvent welding — zero leaks, zero maintenance.
- Precision Size: 0.525m width x 1m length — perfect for small-bore pipes, tracer lines, and tight-access areas.
- Thickness Options: 0.5mm, 0.8mm, 1.0mm, 1.2mm — select based on insulation depth and mechanical protection required.
- Colour & Finish: Black (external), White (internal); chalked or interleaved liner to prevent sticking during storage and installation.
Typical Applications
PIB0.525X1 is the professional choice for smaller-scale and high-precision installations:
- Weatherproof jacketing on insulated instrument tubing and control lines
- Protective cladding for refrigeration, HVAC, and narrow ventilation ducts
- Waterproof sealing around valves, flanges, and pipe penetrations
- Corrosion and moisture barrier in marine, offshore, and coastal plants
- Long-term protection of underground tracer lines and capillary tubes
Why Choose Plysolene PIB0.525X1?
Backed by Plysolene’s 50+ years of expertise in PIB technology, this sheeting offers unmatched longevity and reliability. Its non-absorbent, non-ageing structure eliminates water ingress and CUI (corrosion under insulation). Solvent-welded joints create a fully sealed, vapour-tight barrier — reducing energy loss and maintenance costs for life.
Product Specifications
| Property | Details |
|---|---|
| Product Code | PIB0.525X1 |
| Brand | Plysolene (UK) |
| Material | Polyisobutylene (PIB) thermoplastic |
| Sheet Size | 0.525m width x 1m length |
| Thickness Options | 0.5mm, 0.8mm, 1.0mm, 1.2mm |
| Colour Options | Black (external), White (internal) |
| Surface Finish | Chalked or interleaved liner |
| Temperature Range | -30°C to +100°C (continuous) |
| UV Resistance | Excellent – lifetime outdoor performance |
| Welding Method | Solvent weldable (Plysolene Solvent recommended) |
| Standards | BS 476 Part 7, ISO 9001, ASTM compliant |
Plysolene PIB0.525X1 Installation Guide
Step-by-Step Instructions for Professional Results
Follow this guide to install PIB0.525X1 sheeting on small-bore pipes, instrument lines, and fittings. Use only Plysolene Solvent. Work in a ventilated area with PPE.
1. Preparation
- Clean Surface: Insulation must be dry, smooth, and free from dust/oil. Wipe with dry cloth.
- Measure: Circumference = π × (pipe OD + 2 × insulation) + 75mm overlap. Add 10% for fittings.
- Cut Sheets: Use sharp knife on flat surface. Score and fold for curves.
- Conditions: Install >5°C. Warm materials to 15°C in cold weather.
2. Installation
- Wrap: Start at 6 o’clock, wrap clockwise. Keep tension even.
- Solvent: Brush thin coat on both overlaps. Open time: 1–2 mins.
- Weld: Press firmly, roll with silicone roller. Overlap: 50mm min.
- Stagger Joints: ≥150mm from previous. Seal all edges.
- Fittings: Miter-cut gores for elbows. Use patches for valves.
- End Caps: Cut and weld circular caps with 360° seal.
3. Finishing
- Clean: Wipe excess solvent immediately.
- Cure: 24h initial, 72h full. Do not disturb.
- Inspect: No gaps, strong welds (test pull).
Detailed Solvent Welding Techniques for PIB0.525X1
Achieve 100% Monolithic Joints Every Time
Solvent Welding Process
- Prep: Clean both surfaces. Warm to 15°C if cold.
- Align: Mark overlap. Peel back the top sheet 150mm.
- Apply: Thin even coat of Plysolene Solvent to both surfaces (~220 g/m²).
- Bond: Press within 60 sec. Roll firmly outward from the centre.
- Finish: Re-roll after 2 mins. Clamp flat joints 10 mins.
Joint Types
| Joint | Technique | Overlap |
|---|---|---|
| Longitudinal | Weld at 12 o’clock | 50–75mm |
| Circumferential | Stagger ≥150mm | 75mm |
| Elbow | Miter 4–6 gores | 50mm |
| Valve Box | Fabricate + flange | 100mm |
Temperature Adjustments
- Cold (<10°C): Warm materials, open time → 3 mins
- Hot (>25°C): Work in shade, open time → 45 secs
Troubleshooting
- Weak Weld: Clean + re-weld with new overlap
- Bubbles: Roll immediately, avoid over-solvent
- Delamination: Contamination — use IPA, dry fully
Safety
- Use Plysolene Solvent only. No smoking. Ventilate.
- Avoid bitumen, polystyrene, PVC contact.
Available from Your Trusted UK Suppliers
Order PIB0.525X1 and Plysolene Solvent from:
- www.airconspares.com — HVAC & refrigeration insulation specialists
- www.pipelagging.com — Industrial pipe lagging experts
Full UK stock in all thicknesses • Next-day delivery • Expert technical support on both sites.
