Rockwool Rocklap Pipe Supports — Foil Faced

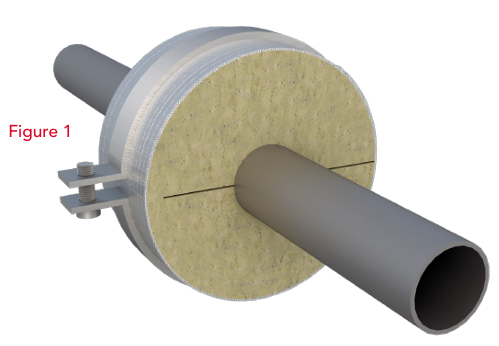

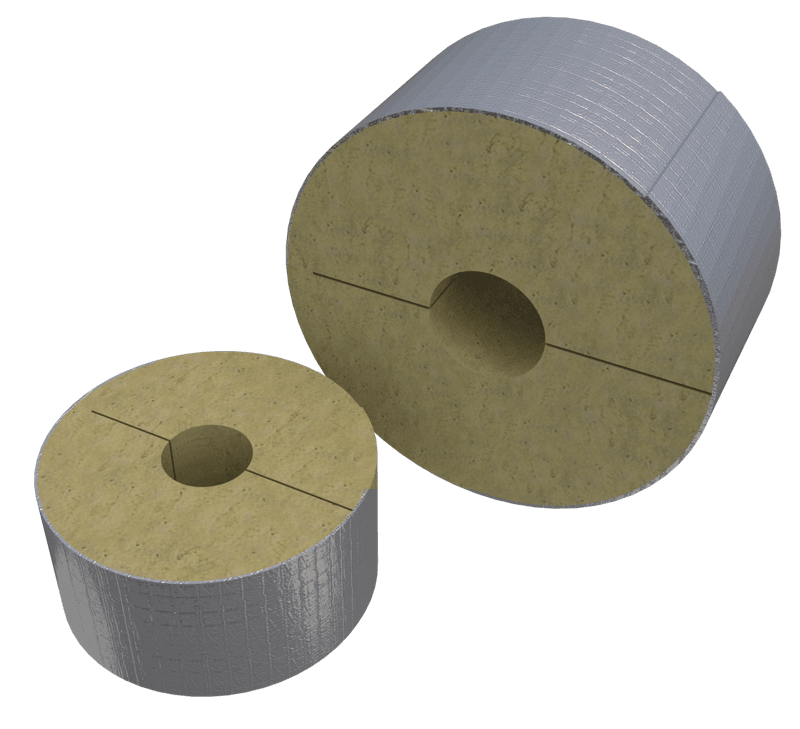

Rockwool Rocklap Pipe Supports are high-density stone wool pre-formed sections designed to minimise thermal bridging at pipe suspension points. Manufactured from non-combustible ROCKWOOL stone wool with a foil facing, they maintain the thermal, fire and acoustic performance of the full Rocklap pipe insulation system at hanger brackets, clamps and pipe supports.

Suitable for hot and cold steel and copper pipes operating at 0°C to 250°C. When combined with Rocklap Pipe Sections, they form a complete, thermally efficient insulation solution. Pipe clips are not included and are sold separately.

Key Benefits

• Minimises thermal bridging — maintains energy efficiency of the pipework system at support points
• Non-combustible stone wool — A1 fire rated, consistent with Rocklap pipe sections
• Foil faced — aluminium foil facing provides vapour control and a clean, professional finish
• High load-bearing capability — high-density stone wool provides effective point load resistance at hanger brackets and clamps
• Wide temperature range — suitable for pipework operating from 0°C to 250°C

Technical Specifications

• Material: High-density ROCKWOOL stone wool with aluminium foil facing
• Section length: 80mm
• Service temperature: 0°C to 250°C (stone wool); up to 80°C (aluminium foil facing)
• Reaction to fire: Non-combustible stone wool
• Specific heat: 0.84 kJ/kgK
• Water vapour diffusion resistance (µ): >10,000

Applications

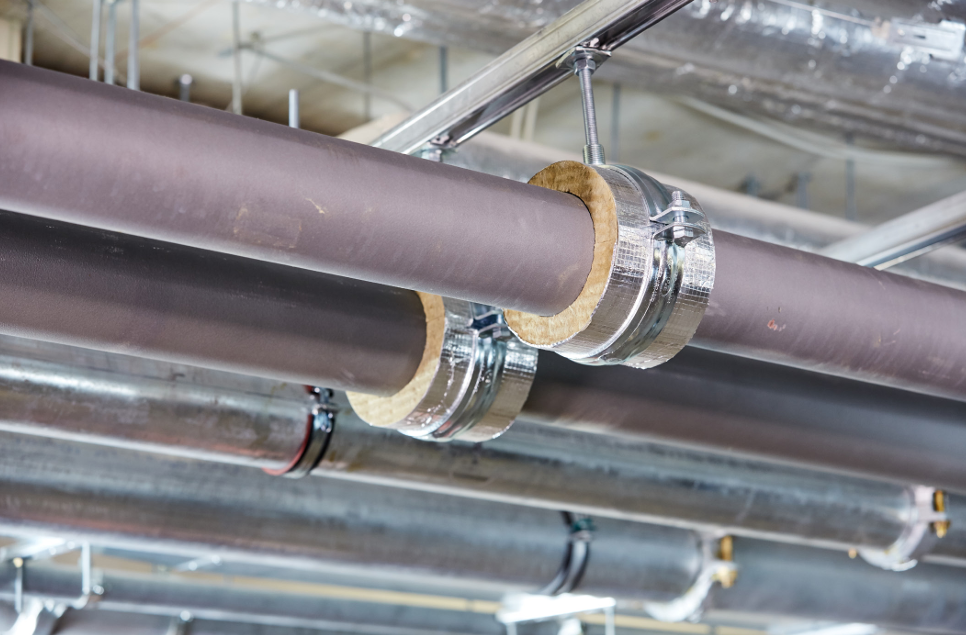

• Pipe support points, hanger brackets and clamps on Rockwool insulated pipework
• Commercial and industrial HVAC and building services pipework
• Steam, high-temperature heating and chilled water systems
• Any application requiring non-combustible insulation at pipe fixings

Complete Your Installation

• Rockwool Rocklap Pipe Insulation — 1m — The matching pipe insulation sections for a complete, consistent Rocklap system
• 75mm Aluminium Foil Tape — Seal butt joints and maintain a continuous vapour barrier across the full pipe run

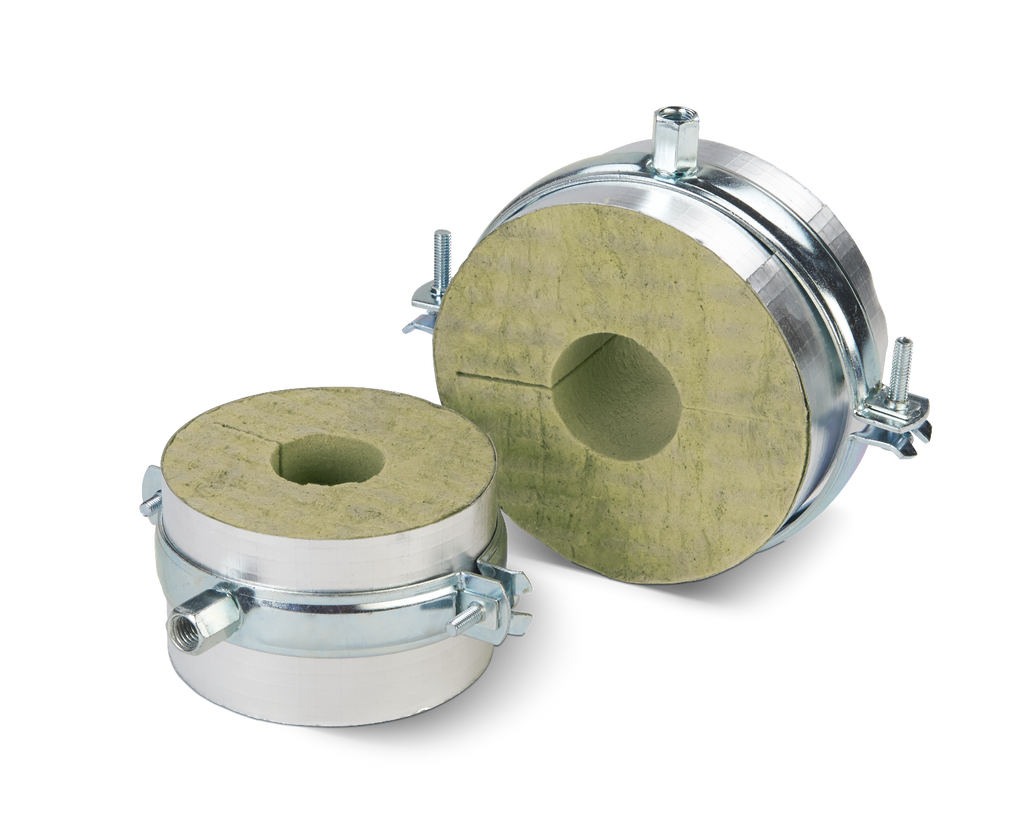

• Rubber Lined Pipe Clamps — Secure your insulated pipework with the correct clamps for commercial and industrial installations
• View all pipe supports — Browse our full range of pipe support solutions

Frequently Asked Questions

What is the difference between Rocklap Pipe Supports and Rocklap Pipe Sections?

Rocklap Pipe Sections are the main insulation that wraps around the full length of the pipe. Rocklap Pipe Supports are shorter, higher-density sections (80mm long) used specifically at hanger brackets, clamps and support points to prevent thermal bridging where the pipe is fixed. Both products are used together to form a complete insulation system.

Do pipe clips come with the Rocklap Pipe Supports?

No — pipe clips are not included and must be purchased separately. See our range of rubber lined pipe clamps which are suitable for use with Rocklap insulated pipework.

What temperature range are Rocklap Pipe Supports suitable for?

The stone wool core is rated for continuous service temperatures from 0°C to 250°C, making it suitable for steam, high-temperature heating mains and chilled water systems. Note that the aluminium foil facing is rated to a maximum of 80°C.

Are Rocklap Pipe Supports fire rated?

Yes. Rocklap Pipe Supports are manufactured from non-combustible ROCKWOOL stone wool, consistent with the A1 Euroclass fire rating of the Rocklap pipe insulation system. They are suitable for use in fire-rated building services installations.

What sizes are available?

Rocklap Pipe Supports are available in a range of bore sizes and insulation thicknesses to match the Rocklap pipe insulation range. Select your pipe outside diameter and wall thickness from the variant options above.
