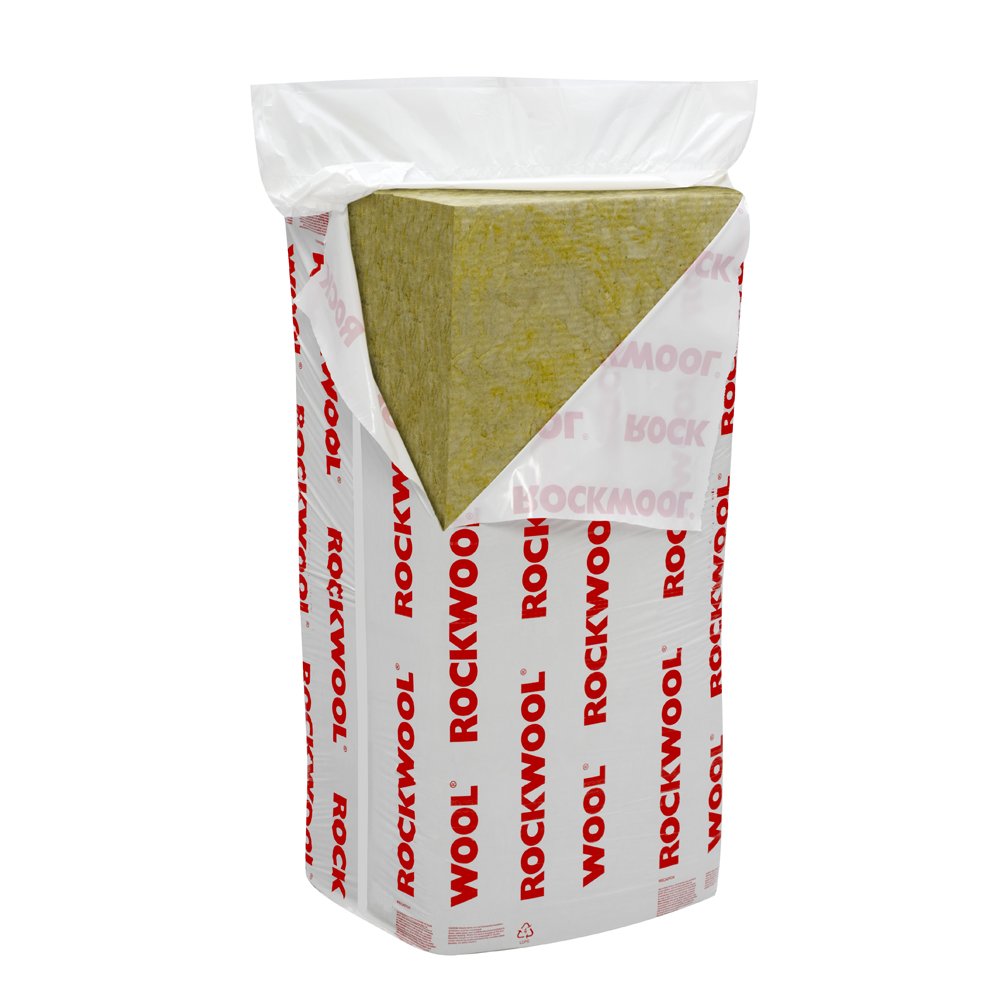

Rockwool Duct Slab Foiled 40mm Thick 6 Sq m Pack 1000 x 600mm
£176.62
inc VAT
£147.19
ex VAT
Skip to product information
Rockwool Duct Slab Foiled 40mm Thick 6 Sq m Pack 1000 x 600mm
DUCTSLABHP40
£176.62
inc VAT
£147.19
ex VAT
Back order – expected to dispatch by Thu 29 Oct (usually 2–4 working days)
Key specifications
- Fire rating
- Euroclass A1, non-combustible (EN 13501-1)
- Service temperature
- Up to +230°C
- Thermal conductivity
- λ 0.035 W/(m·K) at 10°C; 0.042 at 50°C; 0.054 at 100°C; 0.069 at 150°C; 0.086 at 200°C
- Standard
- EN 14303
Source: manufacturer's technical datasheet · View datasheet
Free UK delivery on orders over £100
In-stock items usually dispatched within 1–2 working days
Secure checkout · 30-day returns
How to measure?
Measure the Outside Diameter (OD)
Pipe insulation sizes refer to the outside diameter of the pipe — not the bore (internal diameter).
Wrap a tape measure around the pipe, divide by π (3.14) to get the OD. Or use calipers across the outside of the pipe directly.
Pipe insulation sizes refer to the outside diameter of the pipe — not the bore (internal diameter).
|←— OD —→|Wrap a tape measure around the pipe, divide by π (3.14) to get the OD. Or use calipers across the outside of the pipe directly.

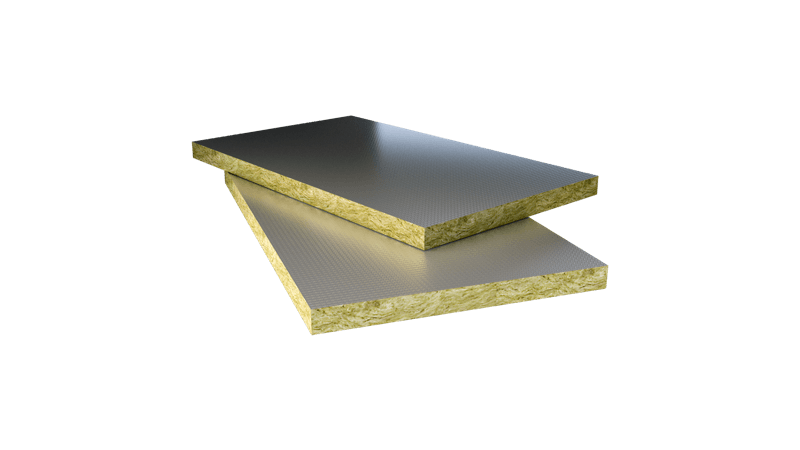

Rockwool Duct Slab Foiled 40mm — 6m² Pack
Rockwool Duct Slab Foiled 40mm is a semi-rigid stone wool insulation slab with a reinforced aluminium foil facing, designed for thermal and acoustic insulation of rectangular and square HVAC ductwork and water storage tanks. Suitable for service temperatures up to 230°C, it is widely specified for air conditioning, warm air and extractor ducts in plant rooms, boiler houses and external installations.
Key Benefits
- A1 non-combustible — Euroclass A1 fire rating to EN 13501-1. Will not contribute to fire spread
- High temperature rated — suitable for service temperatures up to 230°C (foil face limited to 80°C)
- Water repellent — foil facing provides approximately 1000 MNs/g water vapour resistance when taped
- Acoustic absorption — reduces noise from air movement and high-velocity fluid systems
- LUL approved — authorised for London Underground surface and sub-surface premises
- Zero ODP and GWP — relies on entrapped air for thermal properties, no ozone-depleting or global-warming gases
Technical Specifications
- Thickness: 40mm
- Pack coverage: 6m² (10 slabs, 1000x600mm)
- Material: Stone wool with reinforced aluminium foil facing
- Fire rating: Euroclass A1 non-combustible
- Maximum service temperature: 230°C
- Thermal conductivity: 0.033 W/mK at 10°C | 0.040 W/mK at 50°C | 0.050 W/mK at 100°C
- Water vapour resistance: ~1000 MNs/g (foil faced and taped)
Applications
- Rectangular and square HVAC ductwork in plant rooms and boiler houses
- External ductwork requiring weather-resistant insulation
- Cold water storage, feed and expansion tanks
- Air conditioning, warm air and extractor duct systems
Complete Your Installation
- 75mm Aluminium Foil Tape — Seal slab joints and maintain a continuous vapour barrier
- 100mm Aluminium Foil Tape — For wider joints on larger ductwork
- Rockwool DuctWrap — Flexible roll alternative for circular ductwork
