K-FLEX ST Elastomeric Pipe Insulation Tube - 2m Length
6mm / 6mm
£2.30 inc VAT
£1.92 ex VAT
Skip to product information
K-FLEX ST Elastomeric Pipe Insulation Tube - 2m Length
06006005508
£2.30 inc VAT
£1.92 ex VAT
Free UK delivery on orders over £100
Usually dispatched within 1–2 working days
Secure checkout · 30-day returns
How to measure?
Measure the Outside Diameter (OD)
Pipe insulation sizes refer to the outside diameter of the pipe — not the bore (internal diameter).
Wrap a tape measure around the pipe, divide by π (3.14) to get the OD. Or use calipers across the outside of the pipe directly.
Pipe insulation sizes refer to the outside diameter of the pipe — not the bore (internal diameter).
|←— OD —→|Wrap a tape measure around the pipe, divide by π (3.14) to get the OD. Or use calipers across the outside of the pipe directly.

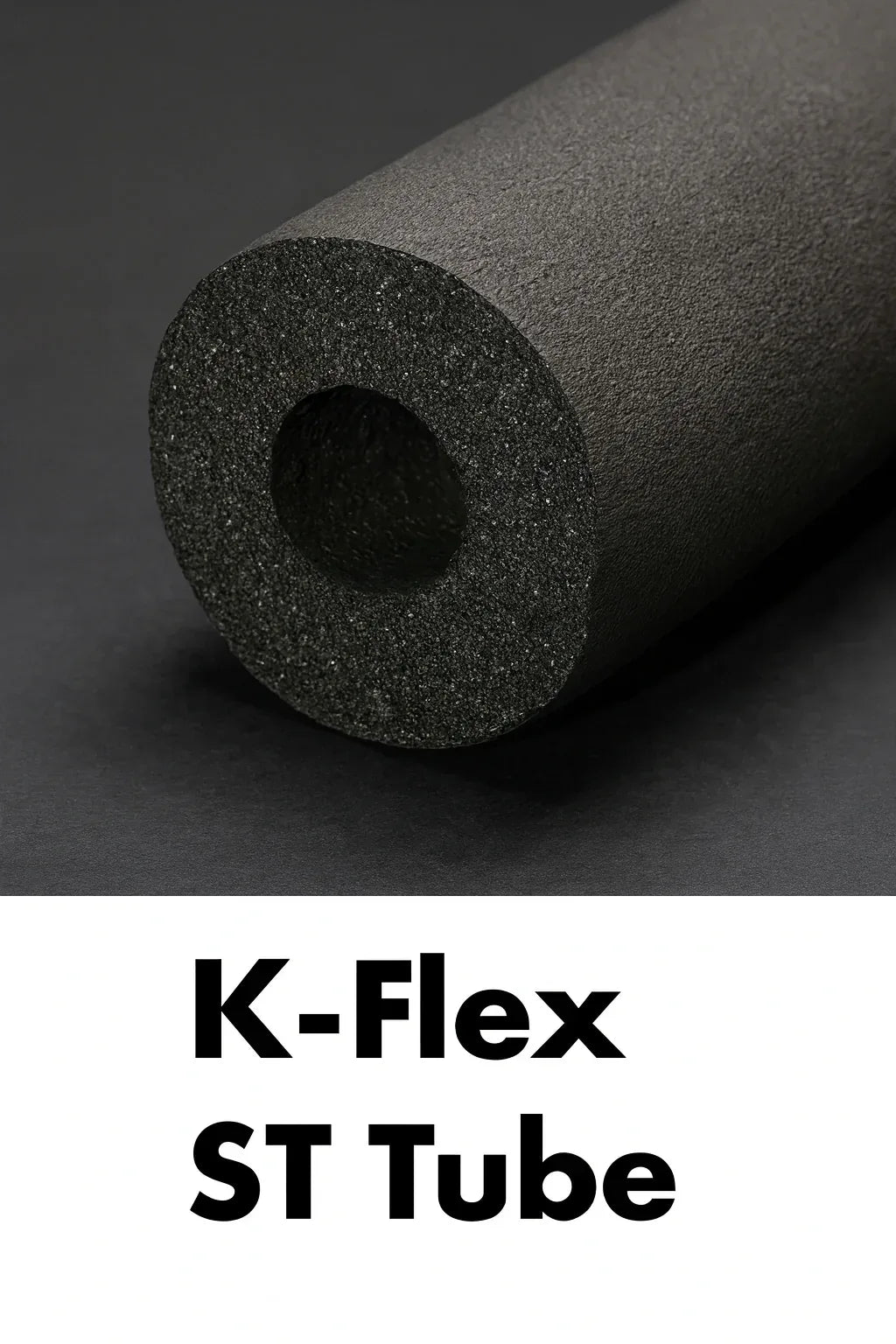

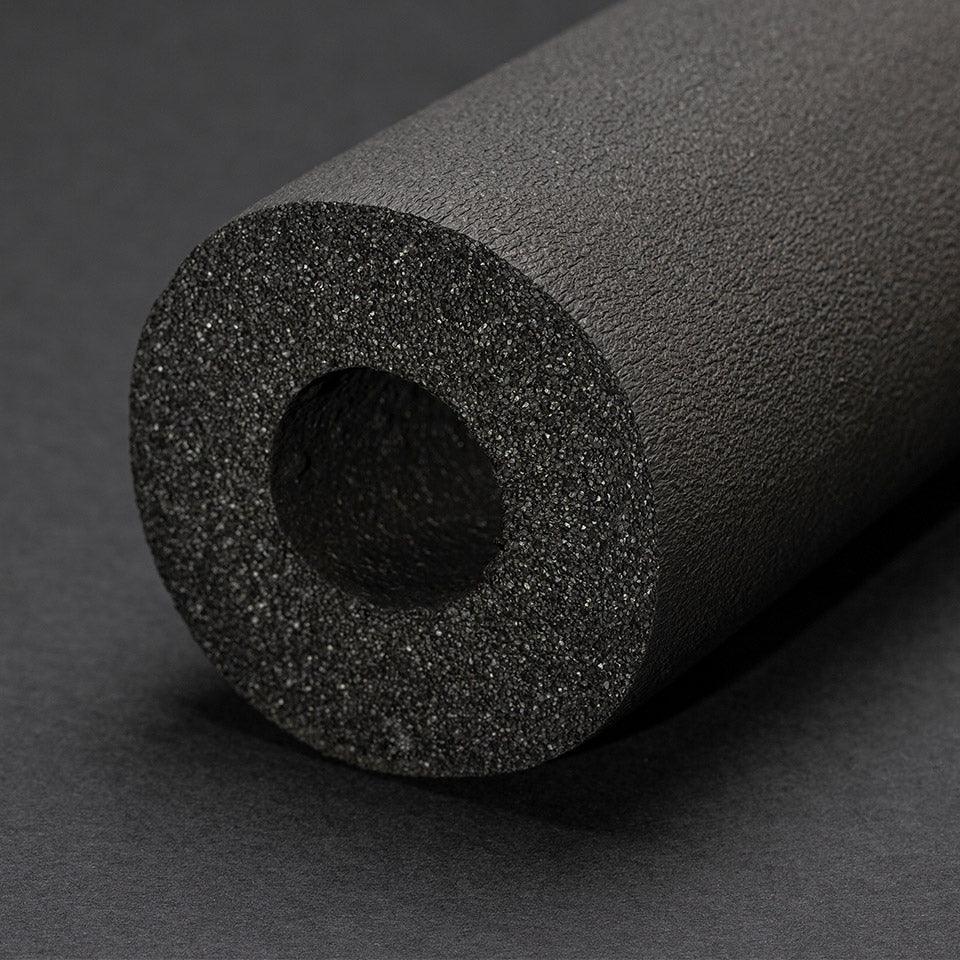

K-FLEX ST Elastomeric Pipe Insulation Tube
K-FLEX ST is a flexible closed-cell elastomeric foam insulation tube for refrigeration, air-conditioning, chilled-water, heating and plumbing pipework. The closed-cell structure provides thermal insulation and high resistance to water-vapour diffusion, helping to control condensation when joints and seams are correctly sealed.
Product Details
- Brand: K-FLEX
- Range: ST
- Material: Flexible closed-cell elastomeric foam
- Colour: Black
- Tube length: 2 metres
- Standard: EN 14304
- Operating temperature for K-FLEX ST tube: -165°C to +110°C
- For applications below -40°C, confirm suitability with K-FLEX technical support
- Thermal conductivity at 0°C: ≤ 0.033 W/(m·K) for thicknesses up to 25mm; ≤ 0.036 W/(m·K) for thicknesses over 25mm
- Water-vapour diffusion resistance factor (μ): ≥ 10,000 up to 25mm thickness; ≥ 7,000 over 25mm
- Euroclass: BL-s2,d0
- Suitable for refrigeration, air-conditioning, chilled-water, heating and plumbing services

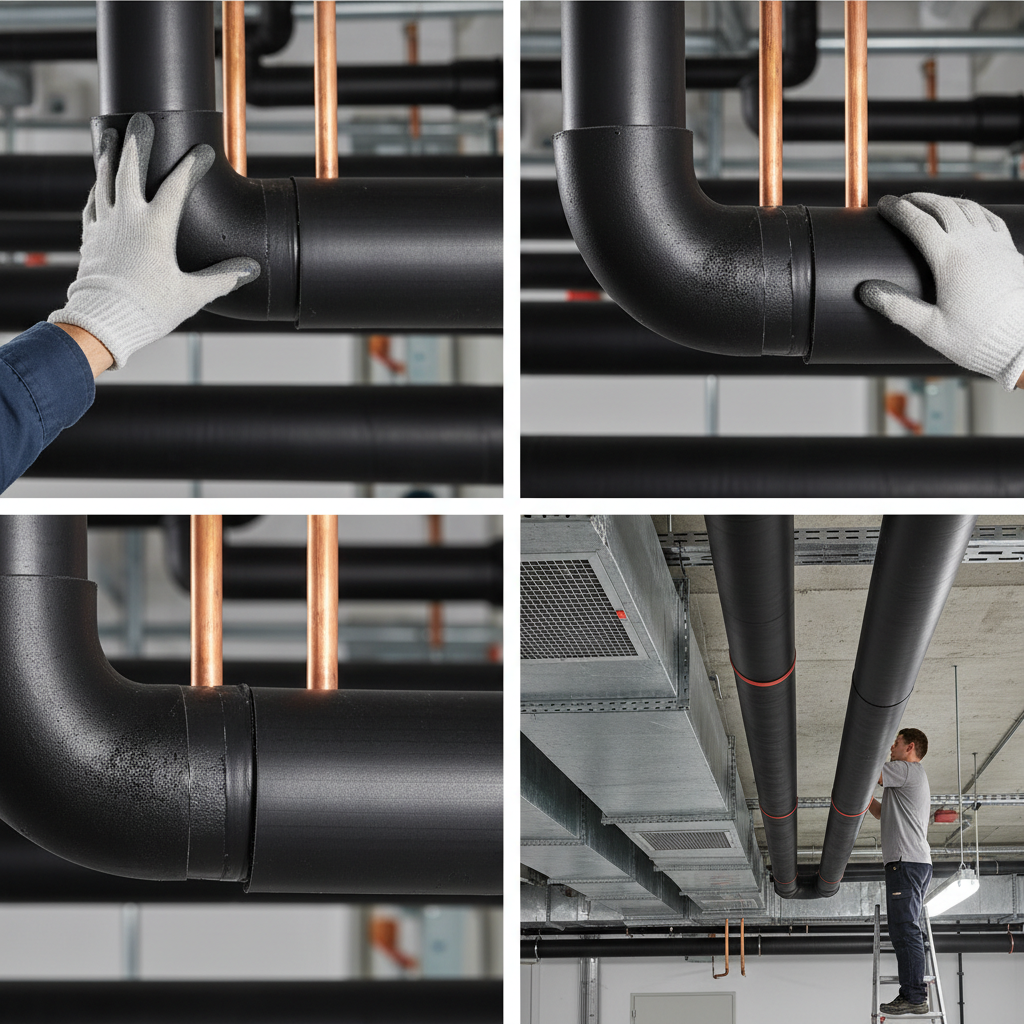

Installation
Choose the tube size to suit the outside diameter of the pipe and the required insulation thickness. Seal longitudinal joints, butt joints and fittings in accordance with K-FLEX installation guidance using a compatible K-FLEX adhesive where required, maintaining continuity of the vapour-control layer on condensation-risk services.
Need Technical Information?
