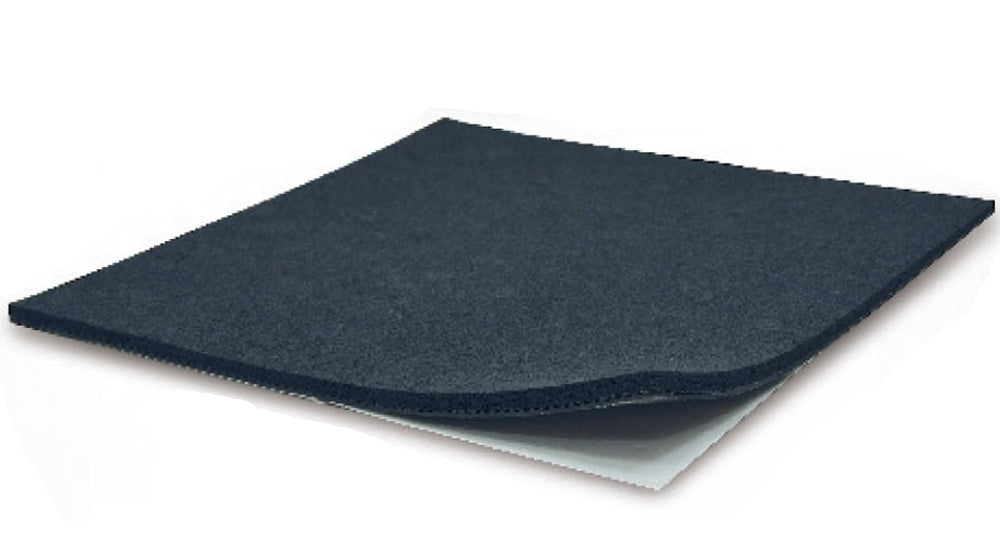

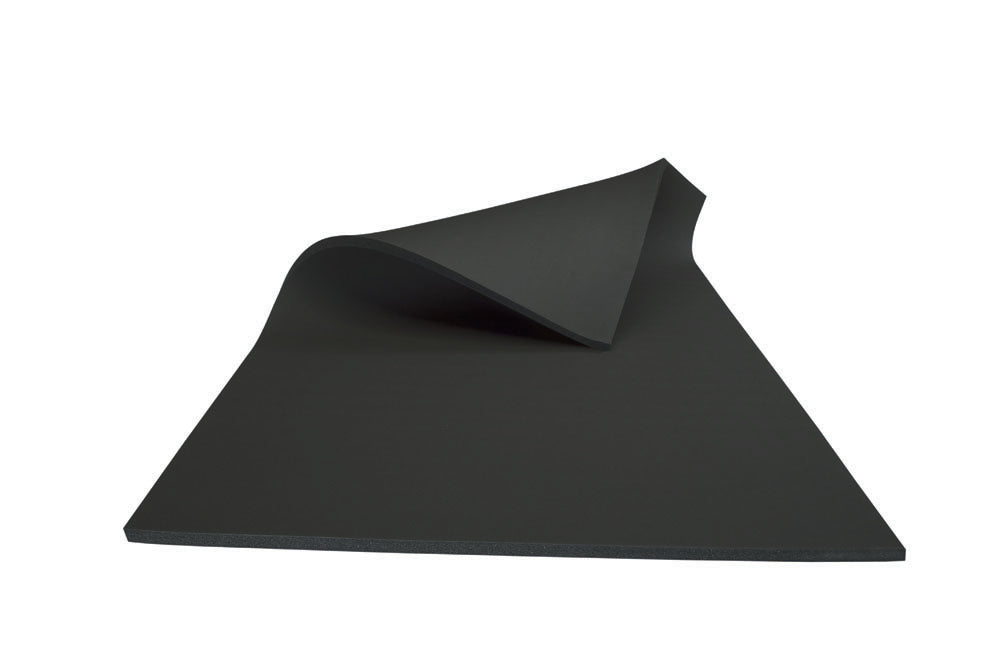

ArmaSound RD240 Acoustic Insulation Sheet 1m x 1m
Self Adhesive / 6mm
£111.51
inc VAT
£92.93
ex VAT
Skip to product information
ArmaSound RD240 Acoustic Insulation Sheet 1m x 1m
L644
£111.51
inc VAT
£92.93
ex VAT
In stock – ready to dispatch
Free UK delivery on orders over £100
In-stock items usually dispatched within 1–2 working days
Secure checkout · 30-day returns
How to measure?
Measure the Outside Diameter (OD)
Pipe insulation sizes refer to the outside diameter of the pipe — not the bore (internal diameter).
Wrap a tape measure around the pipe, divide by π (3.14) to get the OD. Or use calipers across the outside of the pipe directly.
Pipe insulation sizes refer to the outside diameter of the pipe — not the bore (internal diameter).
|←— OD —→|Wrap a tape measure around the pipe, divide by π (3.14) to get the OD. Or use calipers across the outside of the pipe directly.
ArmaSound RD240 Acoustic Insulation Sheet
ArmaSound RD240 is a high-performance, flexible, hydrophobic open-cell elastomeric acoustic insulation material from Armacell. Its complex pore geometry is designed for effective airborne sound absorption across a broad frequency range.
Sheet size: 1m x 1m. This Pipelagging listing includes 6mm, 10mm, 15mm, 20mm and 25mm thicknesses, with either non-adhesive or self-adhesive backing.
Typical applications
- Fan-coil units and HVAC equipment
- Duct and cabinet linings
- Chiller systems and acoustic enclosures
- Pipelines, vessels and industrial acoustic insulation systems
Technical performance
- Material: Elastomeric foam based on synthetic rubber
- Colour: Black
- Service temperature: -20°C to +85°C
- Density: 220–360 kg/m³
- Declared thermal conductivity: λd ≤ 0.062 W/(m·K) at 0°C
- Surface spread of flame: Class 1 to BS 476 Part 7
- Water absorption: ≤10% by volume after 24 hours
- Health: Fibre and dust free
Sound absorption
Armacell publishes weighted sound absorption coefficient (αw) values for ArmaSound RD240 in its current GB technical data: 0.15 (H) for 6mm, 0.25 (H) for 10mm, 0.40 (MH) for 15mm and 0.55 (MH) for 25mm. The current published table does not state a separate αw value for the 20mm sheet.
Full box quantities
| Thickness | Sheets per carton | Coverage per carton |
|---|---|---|
| 6mm | 8 | 8m² |
| 10mm | 5 | 5m² |
| 15mm | 3 | 3m² |
| 20mm | 2 | 2m² |
| 25mm | 2 | 2m² |
Installation
Armacell recommends ArmaFlex Adhesive 520 or HT625 for reliable adhesion of joints and seams. In exposed industrial applications, the outer surface should be protected with a suitable covering or cladding. Contact us for project-specific application or availability advice.
