ArmaFlex Fastlink DN25 25m Double Pipe Coil – FL-AV-19X25E25D
FL-AV-19X25E25D
£614.66
Free UK delivery on orders over £100
Usually dispatched within 1–2 working days
Secure checkout · 30-day returns
How to measure?
Measure the Outside Diameter (OD)
Pipe insulation sizes refer to the outside diameter of the pipe — not the bore (internal diameter).
Wrap a tape measure around the pipe, divide by π (3.14) to get the OD. Or use calipers across the outside of the pipe directly.
Pipe insulation sizes refer to the outside diameter of the pipe — not the bore (internal diameter).
|←— OD —→|Wrap a tape measure around the pipe, divide by π (3.14) to get the OD. Or use calipers across the outside of the pipe directly.

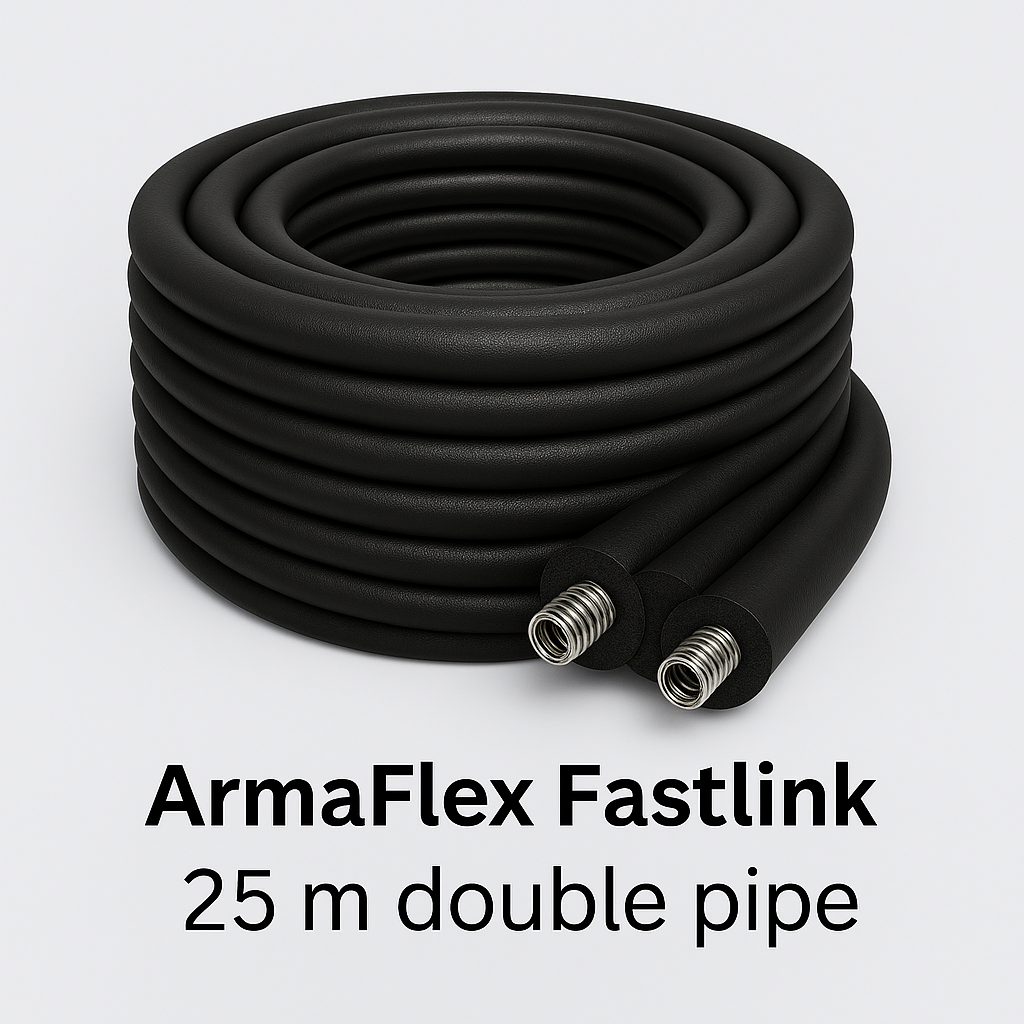

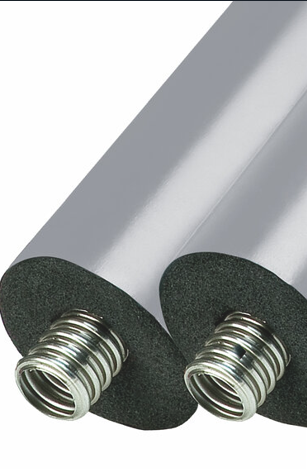

ArmaFlex Fastlink DN25 25m Double Pipe Coil
ArmaFlex Fastlink DN25 25m Coil (FL-AV-19X25E25D) is the bulk-supply format of Armacell's pre-insulated flexible heat pump pipe system. Supplied as a double pipe coil — flow and return together — this 25m length is intended for installers who need to run longer connections or prefer to cut to length on site rather than using standard fixed-length sets.
Unlike the standard Fastlink sets, the 25m coil is not supplied with quick couplings. End fittings and couplings must be ordered separately from the Fastlink accessory range.
Key Features
- Double pipe — flow and return supplied together in a single 25m coil.
- Pre-insulated — factory-applied 19mm ArmaFlex flexible elastomeric foam insulation.
- Flexible corrugated stainless steel pipe (material 1.4404) — easier to route than rigid pipework.
- UV and weather resistant outer covering — suitable for exposed above-ground installations.
- Cut-to-length flexibility — ideal where a standard 2m, 4m, 6m or 8m set length does not suit the installation.
- Wide service temperature range — −50°C to +110°C.
Technical Specification
- Nominal size: DN25
- Configuration: Double pipe (flow & return)
- Coil length: 25m
- Pipe OD: approx. 31.2mm
- Pipe material: Corrugated austenitic stainless steel 1.4404
- Insulation: Flexible elastomeric foam (FEF)
- Insulation thickness: 19mm
- Service temperature: −50°C to +110°C
- Thermal conductivity: ≤0.038 W/(m·K) at 40°C
- Water vapour diffusion resistance: μ ≥ 4,000
- Reaction to fire: Euroclass E(L)
- Max operating pressure: 6 bar at 20°C
- UV resistance: Very good
- Colour: Grey
Important — Couplings Not Included
The 25m coil does not include quick couplings. You will need to order the appropriate Fastlink end fittings separately. For fixed-length installations with couplings included, see the ArmaFlex Fastlink Standard Sets (DN25 & DN32).
Supply
This product is available to order — delivery on request. Lead times apply; please contact the Pipelagging technical team to confirm availability and delivery timescale before ordering.
