Armacell ArmaFix Quick Release Pipe Clamp - M8/M10 Combination Nut

PCX072/080

£5.49 inc VAT £4.58 ex VAT

In stock – ready to dispatch

Free UK delivery on orders over £100

In-stock items usually dispatched within 3-5 working days

Secure checkout · 30-day returns

How to measure?

Measure the Outside Diameter (OD)
Pipe insulation sizes refer to the outside diameter of the pipe — not the bore (internal diameter).

|←— OD —→|
Wrap a tape measure around the pipe, divide by π (3.14) to get the OD. Or use calipers across the outside of the pipe directly.

ArmaFix Pipe Clamps for Insulated Refrigeration & Air-Conditioning Pipework

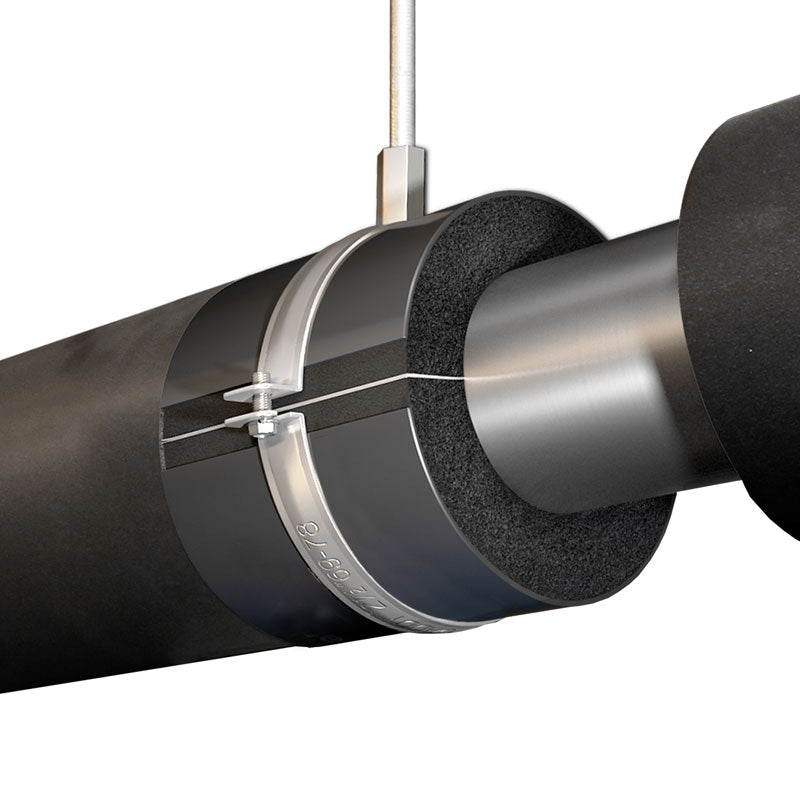

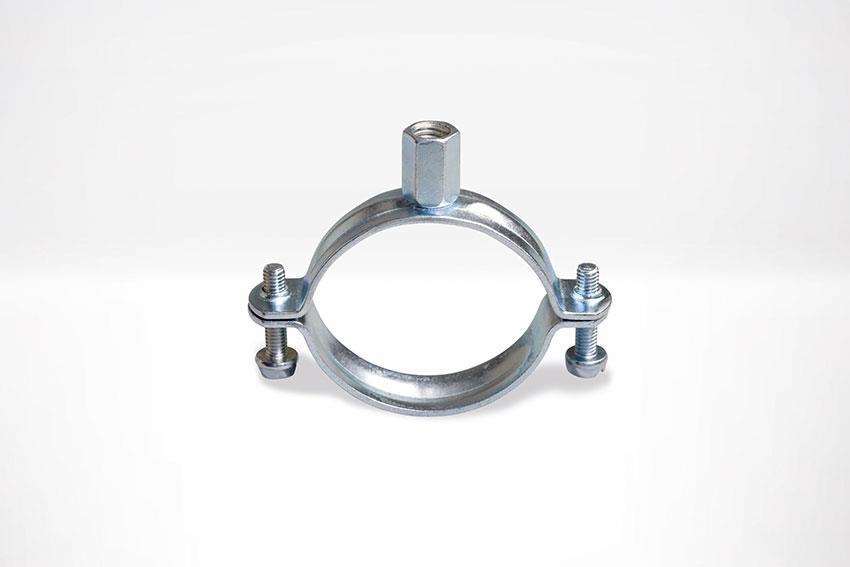

Steel quick-release pipe clamps with an M8/M10 combination nut, for mounting insulated refrigeration and air-conditioning pipework using compatible ArmaFix pipe supports.

Important: the size selected is the clamp size, not the bare pipe diameter. Choose the clamp to match your pipe diameter and the insulation thickness of the ArmaFix Ecolight donut-type support. For example, a 28mm pipe with a 13mm Ecolight support requires a 47/52 clamp; the same 28mm pipe with a 19mm support requires a 59/63 clamp.

Which Pipe Does Each Clamp Fit?

The table below reproduces the related PCX clamp selections in the supplied Armacell ArmaFix Ecolight technical sheet for the clamp sizes listed on this product. All pipe diameters and insulation thicknesses are in millimetres. Where several pipe diameters appear in a cell, the manufacturer lists the same clamp for each of those diameters.

Clamp size	Pipe Ø with 13mm support	Pipe Ø with 19mm support	Pipe Ø with 25mm support	Pipe Ø with 32mm support	Pipe Ø with 40mm support
25/30	6	—	—	—	—
33/37	10, 12, 15	—	—	—	—
47/52	28	15, 18	6	—	—
54/58	32, 35	22	10	—	—
59/63	—	28	12, 15	—	—
63/68	42	32	18	6	—
68/73	48	35	22, 28	10, 12, 15	—
72/80	54, 60	42, 48	32, 35	18, 22	6
82/85	64	54	42	28	10, 12
88/92	—	60	48	32, 35	15, 18
99/103	—	—	54, 60	42	28
112/118	—	—	76	54, 60	42
145/152	133	—	—	—	76

— means no matching pipe/support combination is listed for that clamp in the supplied sheet. This guide applies specifically to ArmaFix Ecolight donut-type supports; do not assume the same sizing for other support systems or ordinary insulation. Confirm the support specification before ordering.
