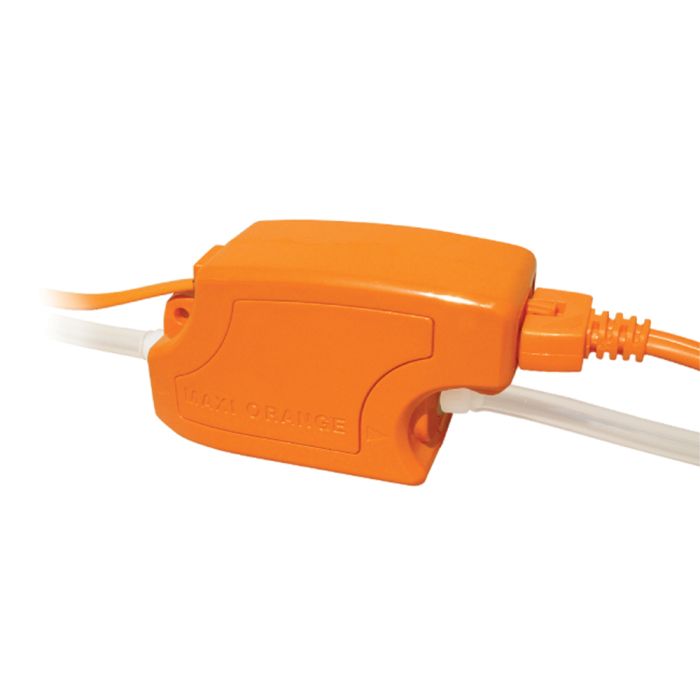

Aspen Maxi Orange Condensate Pump FP2210

SKU
FP2210
£134.90 £112.42
In stock

Aspen Maxi Orange Air Conditioning condensate pump (FP2210)

The Aspen Mini Orange and Maxi Orange pumps, designed for installation: above the false ceiling where possible, behind wall mounted evaporators and in plastic conduit. By connecting the drain hose to the reservoir and placing the pump drive unit within the evaporator, condensate water can be pumped away to a suitable drain. Within the Orange kit there are two reservoirs to choose from, which must sit flat and horizontal. One allows you to connect directly to the drain hose of the evaporator and the second reservoir can be placed directly into a condensate tray.

Technical Specifications:

  • 1PH 50 Hz. 3A volt-free alarm wires, N.O, N.C. contacts rated @ 5A inductive at 230V.
  • Has Hall effect semiconductor level sensors, with high-level safety.
  • Fully potted,
  • Thermally protected.
  • CE marked
  • Power supply: 230V AC < 15W
  • Water flow rate: 26L/hour at zero head
  • Maximum recommended head: 20 metres
  • Noise level: 35dB(A) @ 1 metre
  • Dimensions: 66mm(H) x 122mm(W) x 44mm(D).
  • Weight: 0.9



More Information
Product NameAspen Maxi Orange Condensate Pump FP2210
SKUFP2210
mpnFP2210
Brand c2cAspen
Short Description
  • 1PH 50 Hz, 3A volt-free alarm wires, N.O, N.C. contacts rated @ 5A inductive at 230V
  • Hall effect semi conductor level sensors, with high level safety
  • Fully potted. Thermally protected, CE marked
  • Power supply: 230V AC < 15W
  • Water flow rate: 26L/hour at zero head, Maximum recommended head: 20 metres
  • Dimensions: 66mm(H) x 122mm(W) x 44mm(D)
Description

Aspen Maxi Orange Air Conditioning condensate pump (FP2210)

The Aspen Mini Orange and Maxi Orange pumps, designed for installation: above the false ceiling where possible, behind wall mounted evaporators and in plastic conduit. By connecting the drain hose to the reservoir and placing the pump drive unit within the evaporator, condensate water can be pumped away to a suitable drain. Within the Orange kit there are two reservoirs to choose from, which must sit flat and horizontal. One allows you to connect directly to the drain hose of the evaporator and the second reservoir can be placed directly into a condensate tray.

Technical Specifications:

  • 1PH 50 Hz. 3A volt-free alarm wires, N.O, N.C. contacts rated @ 5A inductive at 230V.
  • Has Hall effect semiconductor level sensors, with high-level safety.
  • Fully potted,
  • Thermally protected.
  • CE marked
  • Power supply: 230V AC < 15W
  • Water flow rate: 26L/hour at zero head
  • Maximum recommended head: 20 metres
  • Noise level: 35dB(A) @ 1 metre
  • Dimensions: 66mm(H) x 122mm(W) x 44mm(D).
  • Weight: 0.9
