BOC Refrigeration Single Stage Nitrogen Regulator 42 Bar (600 PSI) 41560

£204.42 £170.35
SKU
G473
  • Applications in HVAC refrigeration purging and leak detection.
  • For use with nitrogen
  • Brass and chrome construction

41560 BOC Hp S/s Nitrogen Reg 42 Bar (600 PSI) 41560

41560 BOC Hp S/s Nitrogen Reg 42 Bar (600 PSI) 41560

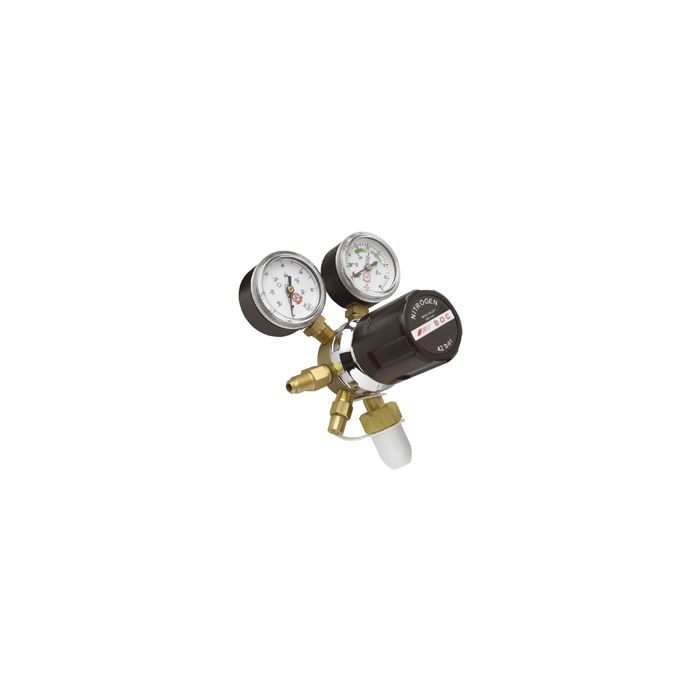

The new BOC RS600 high-pressure nitrogen regulator features safety gauges, rugged brass and chrome construction, and incorporates proven global regulator technology - the unique BOC encapsulated valve - providing superior performance and extended life. This, together with the heavy-duty construction, provides longer trouble-free operation - backed by BOC Industrial's exceptional five-year limited warranty. The RS600 is specially designed to meet the specifications of HVAC refrigeration purge and leak-test applications. This regulator is designed for use with nitrogen to test HVAC systems to locate leaks and purge an area for installation and repair. Its compact size is suitable for use where space is limited. The regulator features a unique control knob for easy pressure adjustment. The RS600 operates in a pressure range of up to 42 bar and its robust construction makes the regulator the ideal choice for the engineer on the move. The 7/16" JIC refrigeration outlet means that no adaptor is required to use the BOC RS600 with standard refrigeration equipment. A lower-pressure version, capable of a 26-bar delivery pressure and with a 3/8" outlet connection, is also available.

BOC Single stage regulator are ideal for applications where there is only small inlet pressure variation during the period of use, for gases with low cylinder pressures or in applications where there is further pressure control downstream of the cylinder regulator.

Part No.  41560
Description     Series 6000 RS600 Refrigeration Regulator
Gas Used     Nitrogen
Delivery Pressure     0600 psi 042 bar
Inlet Connection     BS341 no. 3 5/8" RH
Outlet Connection     7/16" JIC
More Information
Product NameBOC Refrigeration Single Stage Nitrogen Regulator 42 Bar (600 PSI) 41560
SKUG473
mpn41560
Description

41560 BOC Hp S/s Nitrogen Reg 42 Bar (600 PSI) 41560

The new BOC RS600 high-pressure nitrogen regulator features safety gauges, rugged brass and chrome construction, and incorporates proven global regulator technology - the unique BOC encapsulated valve - providing superior performance and extended life. This, together with the heavy-duty construction, provides longer trouble-free operation - backed by BOC Industrial's exceptional five-year limited warranty. The RS600 is specially designed to meet the specifications of HVAC refrigeration purge and leak-test applications. This regulator is designed for use with nitrogen to test HVAC systems to locate leaks and purge an area for installation and repair. Its compact size is suitable for use where space is limited. The regulator features a unique control knob for easy pressure adjustment. The RS600 operates in a pressure range of up to 42 bar and its robust construction makes the regulator the ideal choice for the engineer on the move. The 7/16" JIC refrigeration outlet means that no adaptor is required to use the BOC RS600 with standard refrigeration equipment. A lower-pressure version, capable of a 26-bar delivery pressure and with a 3/8" outlet connection, is also available.

BOC Single stage regulator are ideal for applications where there is only small inlet pressure variation during the period of use, for gases with low cylinder pressures or in applications where there is further pressure control downstream of the cylinder regulator.

Part No.  41560
Description     Series 6000 RS600 Refrigeration Regulator
Gas Used     Nitrogen
Delivery Pressure     0600 psi 042 bar
Inlet Connection     BS341 no. 3 5/8" RH
Outlet Connection     7/16" JIC
