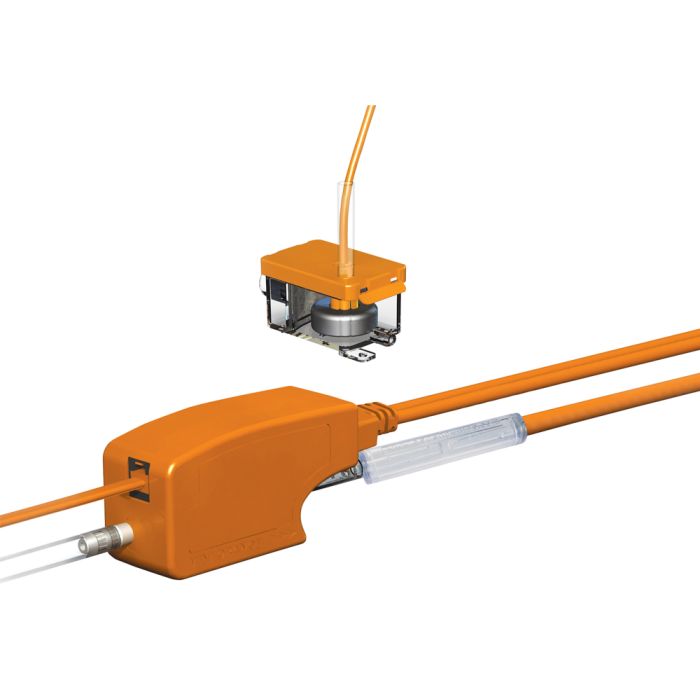

Aspen Mini Orange Silent+ Condensate Pump FP3313

£90.47 £75.39
SKU
FP3313
  • Max. water flow rate: 12ltrs/hour at zero head
  • Maximum recommended head: 10 metres
  • 21dB(A) @ 1 meter
  • Fully potted, Thermally protected, CE marked
  • 230V AC, 16W, 1PH 50 Hz
  • 3A volt-free alarm wires, N.O.,N.C. contacts rated @ 5A
    inductive at 230V
  • Dimensions: 51mm(H) x 107mm(W) x 39mm(D)

Aspen Mini Orange Silent+ plus FP3313

(Replaces previous Aspen Model FP2212)

Aspen Pumps has extended its offering of high-performance pumps with the new Silent+ range. The Silent+ pumps, designed around a total system approach to ensure they operate as quietly and efficiently as possible when installing in a unit or trunking. The new Silent+ pumps benefit from the latest in condensate removal pump technology. Features Include: Anti-vibration tubing Low noise high-performance motors Unique Aspen designed acoustic damping system Optimised casing-designs to reduce noise levels even further The new Silent+ Mini Orange pump includes a high-performance motor as well as an acoustic damper and anti-vibration tubing and is the quietest pump in its class. This pump will benefit end-users who are looking for quieter air conditioning operation in areas such as offices and meeting rooms. The new Silent+ Mini Orange will help to achieve that.

Technical Specifications:

  • Max. water flow rate: 12ltrs/hour at zero head
  • Maximum recommended head: 10 metres
  • 21dB(A) @ 1 meter
  • Fully potted
  • Thermally protected
  • CE marked
  • 230V AC, 16W 1PH 50 Hz 3A volt-free alarm wires, N.O.,N.C. contacts rated @ 5A inductive at 230V
  • Dimensions: 51mm(H) x 107mm(W) x 39mm(D)




More Information
Product Name Aspen Mini Orange Silent+ Condensate Pump FP3313
SKU FP3313
mpn FP3313
Description

Aspen Mini Orange Silent+ plus FP3313

(Replaces previous Aspen Model FP2212)

Aspen Pumps has extended its offering of high-performance pumps with the new Silent+ range. The Silent+ pumps, designed around a total system approach to ensure they operate as quietly and efficiently as possible when installing in a unit or trunking. The new Silent+ pumps benefit from the latest in condensate removal pump technology. Features Include: Anti-vibration tubing Low noise high-performance motors Unique Aspen designed acoustic damping system Optimised casing-designs to reduce noise levels even further The new Silent+ Mini Orange pump includes a high-performance motor as well as an acoustic damper and anti-vibration tubing and is the quietest pump in its class. This pump will benefit end-users who are looking for quieter air conditioning operation in areas such as offices and meeting rooms. The new Silent+ Mini Orange will help to achieve that.

Technical Specifications:

  • Max. water flow rate: 12ltrs/hour at zero head
  • Maximum recommended head: 10 metres
  • 21dB(A) @ 1 meter
  • Fully potted
  • Thermally protected
  • CE marked
  • 230V AC, 16W 1PH 50 Hz 3A volt-free alarm wires, N.O.,N.C. contacts rated @ 5A inductive at 230V
  • Dimensions: 51mm(H) x 107mm(W) x 39mm(D)




Short Description
  • Max. water flow rate: 12ltrs/hour at zero head
  • Maximum recommended head: 10 metres
  • 21dB(A) @ 1 meter
  • Fully potted, Thermally protected, CE marked
  • 230V AC, 16W, 1PH 50 Hz
  • 3A volt-free alarm wires, N.O.,N.C. contacts rated @ 5A
    inductive at 230V
  • Dimensions: 51mm(H) x 107mm(W) x 39mm(D)
