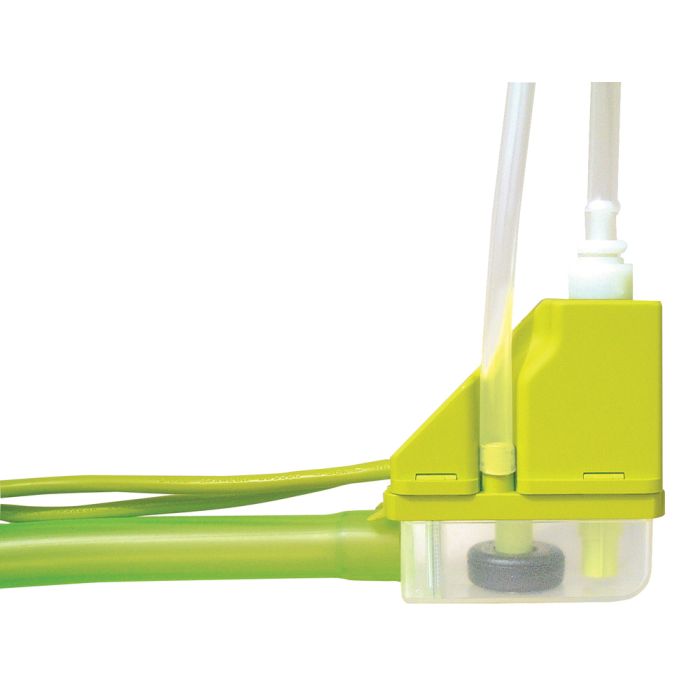

Aspen Maxi Lime Condensate Pump Only FP2215

£97.36 £81.13
SKU
FP2215
  • Pump rating: 230V AC, 15W, 1PH 50 Hz,
  • Tank capacity 4 litres Water flow rate: 34L/h at zero head,
  • Max. recommended head: 15m
  • 3A volt-free alarm wires, N.O., N.C. contacts rated @ 5A inductive at 230V
  • Hall effect semi conductor level sensors, with high level safety
  • Dimensions:115mm (h) x 99mm (w) x 44mm (d), Weight 0.47 kg

Aspen Maxi Lime Air Conditioning Condensate Pump Including Elbow FP2213

Like the favourite Mini Lime condensate pump, the Maxi Lime is a small, quick and easy to install a mini pump. The pump is clipped directly onto the reservoir, so there is a minimum suction lift. By connecting the drain hose to the tank of the pump unit, condensate water can be pumped to a height of 15 metres. The Maxi Lime Pump fits securely into four specially designed elbows. These hold the pump horizontally to ensure reliable operation, and as the pump and elbows are reversible, they can be installed easily on either side of an evaporator unit. The pump is supplied with BBJ trunking (D.70) as standard. Systems with Inoac (CD.75) and Artiplastick trunking are available on request. Lime SystemsOnce you have selected the required pump, the next step is choosing the desired system. There are 5 types of trunking systems available. The systems all comprise of all the components required: pump, elbow, 800mm conduit & ceiling plate. For simple installations, the Slimline system is perfect (Slimline is a non-extendable range of trunking). The Lime pumps are also available on their own, without a system. For both simple and more complex installations the BBJ and Inoac system packs are ideal. They can be integrated within the ranges of BBJ trunking and Inoac trunking. This allows for maximum installation flexibility when required.

Product Technical Details

  • Pump rating: 230V AC, 15W, 1PH 50 Hz,
  • Tank capacity 4 litres
  • Water flow rate: 34L/h at zero head,
  • Max. recommended head: 15m
  • Hall effect semiconductor level sensors, with high-level safety
  • Dimensions:115mm (h) x 99mm (w) x 44mm (d),
  • Weight 0.47 kg
  • Includes BBJ Trunking (65mm x 70mm, Colour: Ivory)



More Information
Product Name Aspen Maxi Lime Condensate Pump Only FP2215
SKU FP2215
mpn FP2215
Description

Aspen Maxi Lime Air Conditioning Condensate Pump Including Elbow FP2213

Like the favourite Mini Lime condensate pump, the Maxi Lime is a small, quick and easy to install a mini pump. The pump is clipped directly onto the reservoir, so there is a minimum suction lift. By connecting the drain hose to the tank of the pump unit, condensate water can be pumped to a height of 15 metres. The Maxi Lime Pump fits securely into four specially designed elbows. These hold the pump horizontally to ensure reliable operation, and as the pump and elbows are reversible, they can be installed easily on either side of an evaporator unit. The pump is supplied with BBJ trunking (D.70) as standard. Systems with Inoac (CD.75) and Artiplastick trunking are available on request. Lime SystemsOnce you have selected the required pump, the next step is choosing the desired system. There are 5 types of trunking systems available. The systems all comprise of all the components required: pump, elbow, 800mm conduit & ceiling plate. For simple installations, the Slimline system is perfect (Slimline is a non-extendable range of trunking). The Lime pumps are also available on their own, without a system. For both simple and more complex installations the BBJ and Inoac system packs are ideal. They can be integrated within the ranges of BBJ trunking and Inoac trunking. This allows for maximum installation flexibility when required.

Product Technical Details

  • Pump rating: 230V AC, 15W, 1PH 50 Hz,
  • Tank capacity 4 litres
  • Water flow rate: 34L/h at zero head,
  • Max. recommended head: 15m
  • Hall effect semiconductor level sensors, with high-level safety
  • Dimensions:115mm (h) x 99mm (w) x 44mm (d),
  • Weight 0.47 kg
  • Includes BBJ Trunking (65mm x 70mm, Colour: Ivory)



Short Description
  • Pump rating: 230V AC, 15W, 1PH 50 Hz,
  • Tank capacity 4 litres Water flow rate: 34L/h at zero head,
  • Max. recommended head: 15m
  • 3A volt-free alarm wires, N.O., N.C. contacts rated @ 5A inductive at 230V
  • Hall effect semi conductor level sensors, with high level safety
  • Dimensions:115mm (h) x 99mm (w) x 44mm (d), Weight 0.47 kg
