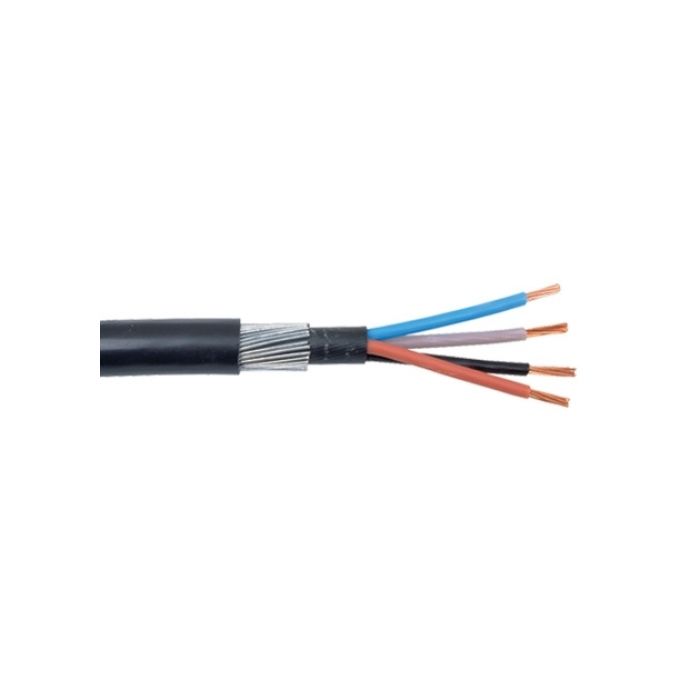

Armoured Cable 4 core 2.5mm SWA per metre

SKU
W510
£3.46 £2.88
In stock

Armoured Cable 4 core 2.5mm SWA cable

Application: SWA Cable - power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.

  • Standards: BS5467, IEC 60502
  • Conductor: Class 2 stranded plain copper conductor to BS EN 60228:2005 (previously BS6360)
  • Insulation: XLPE (Cross-Linked Polyethylene)
  • Bedding: PVC (Polyvinyl Chloride)
  • Armouring: Single Core: AWA (Aluminium Wire Armour) Multi Core: SWA (Steel Wire Armour)
  • Sheath: PVC (Polyvinyl Chloride)
  • Sheath Colour: Black
  • Voltage Rating: 600/1000V
  • Temperature Rating: 0C to +90C
  • Minimum Bending Radius: 1.5mm sq - 16mm sq: 6 x overall diameter, 25mm sq and above: 8 x overall diameter

Core Identification:

  • 1 Core: Brown
  • 2 Cores: Brown, Blue
  • 3 Cores: Brown, Black, Grey
  • 4 Cores: Blue, Brown, Black, Grey
  • 5 Cores: Green/Yellow, Blue, Brown, Black, Grey

Alternative core identification: White Cores with Black numbers

More Information
Product NameArmoured Cable 4 core 2.5mm SWA per metre
SKUW510
mpnA9SWA4250/100
Brand c2cEland
Short Description

Armoured Cable 4 core 2.5mm SWA

  • Standards: BS5467, IEC 60502
  • Conductor: Class 2 stranded plain copper conductor to BS EN 60228:2005 (previously BS6360)
  • Insulation: XLPE (Cross-Linked Polyethylene)
  • Bedding: PVC (Polyvinyl Chloride)
  • Armouring: Single Core: AWA (Aluminium Wire Armour) Multi Core: SWA (Steel Wire Armour)
  • Sheath: PVC (Polyvinyl Chloride)
  • Sheath Colour: Black
  • Voltage Rating: 600/1000V
  • Temperature Rating: 0C to +90C
  • Minimum Bending Radius: 1.5mm sq - 16mm sq: 6 x overall diameter, 25mm sq and above: 8 x overall diameter
Description

Armoured Cable 4 core 2.5mm SWA cable

Application: SWA Cable - power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.

  • Standards: BS5467, IEC 60502
  • Conductor: Class 2 stranded plain copper conductor to BS EN 60228:2005 (previously BS6360)
  • Insulation: XLPE (Cross-Linked Polyethylene)
  • Bedding: PVC (Polyvinyl Chloride)
  • Armouring: Single Core: AWA (Aluminium Wire Armour) Multi Core: SWA (Steel Wire Armour)
  • Sheath: PVC (Polyvinyl Chloride)
  • Sheath Colour: Black
  • Voltage Rating: 600/1000V
  • Temperature Rating: 0C to +90C
  • Minimum Bending Radius: 1.5mm sq - 16mm sq: 6 x overall diameter, 25mm sq and above: 8 x overall diameter

Core Identification:

  • 1 Core: Brown
  • 2 Cores: Brown, Blue
  • 3 Cores: Brown, Black, Grey
  • 4 Cores: Blue, Brown, Black, Grey
  • 5 Cores: Green/Yellow, Blue, Brown, Black, Grey

Alternative core identification: White Cores with Black numbers
