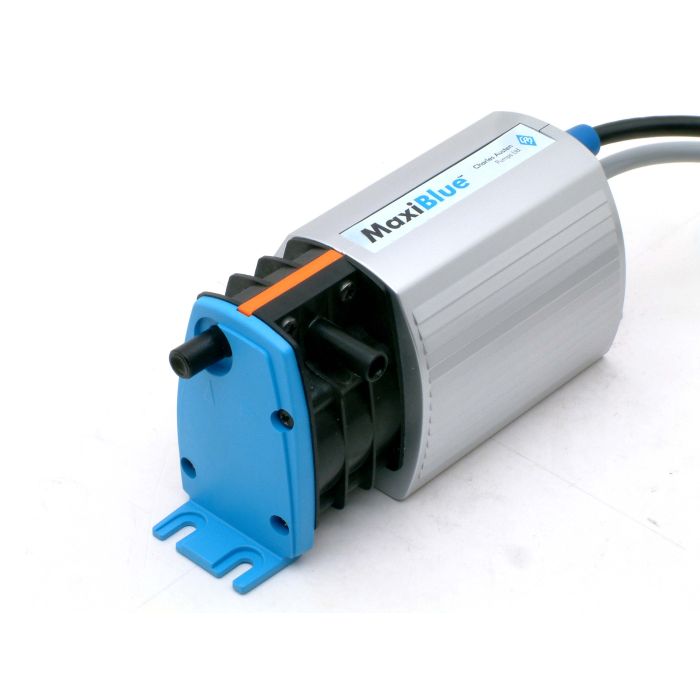

X87-701 Blue Diamond Maxi Blue 230V Reservoir Condensate Pump

£93.20 £77.67
SKU
X87-701

With a higher performance, the Maxi-Blue is ideally suited for mid range air conditioning systems.

  • Product Type: Air & Water
  • Pump Type: Rotary Diaphragm
  • Flow: 14.0 l/hr
  • Head: 8.0 m
  • Suction Lift: 8.0 m
  • Voltage Options: 230V 50/60Hz or 110V 50/60Hz
  • Weight (kg): 0.7 Kg
  • Dimensions: 105 x 66 x 56 mm

Blue Diamond by Charles Austen Pumps - The only fit and forget condensate pumps.

Condensate removal pumps are an installers nightmare. A reputation for being awkward to install and unreliable often dictates the buyer to choose the cheapest item and regard it as a throw away item. Many competitors boast about how reliable their products are but this is very rarely the case. The Blue Diamond range offers a new approach to efficiently, quietly and reliably remove large quantities of condensate. Blue Diamond condensate pumps are based on our revolutionary patented rotary diaphragm pumping principle. Proven in service for over 15 years on applications including vending and sampling. The principle overcomes problems such as contaminated valves, stuck pistons, split tubes and noisy gearboxes.

Blue Diamond- why risk anything less?

MaxiBlue uses the same advanced unique technology as the BlueDiamond range.  Designed for high humidity environments it benefits from being a small powerful pump that is controlled by our patented sensing technology - only senses when water is present offering an energy efficient drainage solution.

  • Proven rotary diaphragm technology as used in Blue Diamond range
  • Flow rate up to 14 l/hr
  • Dry suction lift up to 8m
  • Self priming
  • Energy Efficient
  • Exceptionally quiet and no vibration
  • Powered by unique water sensors
  • Can be mounted in any orientation

With a higher performance, the MaxiBlue is ideally suited for mid range air conditioning systems.  Its exceptional reliability backed by a multi year warranty and leading suction lift has led it to be installed in environments that are both demanding and expensive to access for maintenance.

Related Products:

  • Temperature sensor
  • DrainStik
  • Reservoir sensor
  • 5m extension cable
  • Stepped adaptor

Blue Diamond - why risk anything less?

Reservoir Sensor Connect drip tray to reservoir in which the presence of condensate trips the hi-low solid state level sensors to switch pump on/off. Runs pump only when condensate produced. Alarm shuts off A/C in fault mode, restarts when clear.

Install Options.

OPTION 1 - Inside Evaporator. Option 2 - Corner Trunking (reversible). Option 3 - Under Indoor Unit.

The reservoir can be mounted inside the evaporator using both side inlet and outlet spouts, it's slim line and low profile fits in even the most compact wall mounted evaporators. Offering reversible mounting on L/H and R/H installations, the reservoir is easily and quickly retro fitted as a replacement option to failed piston pump and reservoir combined models. Moulded in white with a compact profile it allows the reservoir to be mounted discreetly below the evaporator. The sensor and high level alarm are mounted inside the reservoir lid and secured onto the wall allowing quick and simple service intervals that do not disturb or dismantle the sensor location.

Hot & Cold Sensor.

Hot - cold thermistors mounted in air inlet and outlet of room unit sensing when cooling occurs. Runs pump constantly when A/C "on" regardless of whether producing condensate. Failsafe circuit inactive The patented DrainStik is quick and simple to install or retrofit around any existing installation. The slim line probe, which houses the water sensors and high level alarm can be directly mounted into the drain tube of all types of equipment. With no moving parts to become clogged or stuck it is an ideal alternative to existing float switches.

The BlueDiamond pump range out performs other condensate pumps and does exactly what you need it to do. We know installers keep us in the van to replace failed or clogged mini pumps and split tubing on peristaltic pumps. BlueDiamond pumps are the reliable alternative so why risk anything else.

  • Silent running less than 21 dbA
  • No maintenance or servicing required
  • self priming runs wet and dry
  • flow rate remains constant even at 4m head
  • ultra reliable multi year warranty
  • unique patented pumping principle
  • quick to retro-fit •quick and easy to install
  • multiple sensing options •plug and play, fit and forget
  • powerful enough for distant location
  • quiet enough for ceiling mounting
  • flow rate up to 50 l/hr
  • pumps up 6 stories
  • unrivalled low power consumption
  • tolerates suspended solids and light slurries
  • peristaltic performance at the price of a piston pump
  • thermally protected with integral high level alarm



More Information
Product NameX87-701 Blue Diamond Maxi Blue 230V Reservoir Condensate Pump
SKUX87-701
mpnX87-701
Description

Blue Diamond by Charles Austen Pumps - The only fit and forget condensate pumps.

Condensate removal pumps are an installers nightmare. A reputation for being awkward to install and unreliable often dictates the buyer to choose the cheapest item and regard it as a throw away item. Many competitors boast about how reliable their products are but this is very rarely the case. The Blue Diamond range offers a new approach to efficiently, quietly and reliably remove large quantities of condensate. Blue Diamond condensate pumps are based on our revolutionary patented rotary diaphragm pumping principle. Proven in service for over 15 years on applications including vending and sampling. The principle overcomes problems such as contaminated valves, stuck pistons, split tubes and noisy gearboxes.

Blue Diamond- why risk anything less?

MaxiBlue uses the same advanced unique technology as the BlueDiamond range.  Designed for high humidity environments it benefits from being a small powerful pump that is controlled by our patented sensing technology - only senses when water is present offering an energy efficient drainage solution.

  • Proven rotary diaphragm technology as used in Blue Diamond range
  • Flow rate up to 14 l/hr
  • Dry suction lift up to 8m
  • Self priming
  • Energy Efficient
  • Exceptionally quiet and no vibration
  • Powered by unique water sensors
  • Can be mounted in any orientation

With a higher performance, the MaxiBlue is ideally suited for mid range air conditioning systems.  Its exceptional reliability backed by a multi year warranty and leading suction lift has led it to be installed in environments that are both demanding and expensive to access for maintenance.

Related Products:

  • Temperature sensor
  • DrainStik
  • Reservoir sensor
  • 5m extension cable
  • Stepped adaptor

Blue Diamond - why risk anything less?

Reservoir Sensor Connect drip tray to reservoir in which the presence of condensate trips the hi-low solid state level sensors to switch pump on/off. Runs pump only when condensate produced. Alarm shuts off A/C in fault mode, restarts when clear.

Install Options.

OPTION 1 - Inside Evaporator. Option 2 - Corner Trunking (reversible). Option 3 - Under Indoor Unit.

The reservoir can be mounted inside the evaporator using both side inlet and outlet spouts, it's slim line and low profile fits in even the most compact wall mounted evaporators. Offering reversible mounting on L/H and R/H installations, the reservoir is easily and quickly retro fitted as a replacement option to failed piston pump and reservoir combined models. Moulded in white with a compact profile it allows the reservoir to be mounted discreetly below the evaporator. The sensor and high level alarm are mounted inside the reservoir lid and secured onto the wall allowing quick and simple service intervals that do not disturb or dismantle the sensor location.

Hot & Cold Sensor.

Hot - cold thermistors mounted in air inlet and outlet of room unit sensing when cooling occurs. Runs pump constantly when A/C "on" regardless of whether producing condensate. Failsafe circuit inactive The patented DrainStik is quick and simple to install or retrofit around any existing installation. The slim line probe, which houses the water sensors and high level alarm can be directly mounted into the drain tube of all types of equipment. With no moving parts to become clogged or stuck it is an ideal alternative to existing float switches.

The BlueDiamond pump range out performs other condensate pumps and does exactly what you need it to do. We know installers keep us in the van to replace failed or clogged mini pumps and split tubing on peristaltic pumps. BlueDiamond pumps are the reliable alternative so why risk anything else.

  • Silent running less than 21 dbA
  • No maintenance or servicing required
  • self priming runs wet and dry
  • flow rate remains constant even at 4m head
  • ultra reliable multi year warranty
  • unique patented pumping principle
  • quick to retro-fit •quick and easy to install
  • multiple sensing options •plug and play, fit and forget
  • powerful enough for distant location
  • quiet enough for ceiling mounting
  • flow rate up to 50 l/hr
  • pumps up 6 stories
  • unrivalled low power consumption
  • tolerates suspended solids and light slurries
  • peristaltic performance at the price of a piston pump
  • thermally protected with integral high level alarm



Short Description

With a higher performance, the Maxi-Blue is ideally suited for mid range air conditioning systems.

  • Product Type: Air & Water
  • Pump Type: Rotary Diaphragm
  • Flow: 14.0 l/hr
  • Head: 8.0 m
  • Suction Lift: 8.0 m
  • Voltage Options: 230V 50/60Hz or 110V 50/60Hz
  • Weight (kg): 0.7 Kg
  • Dimensions: 105 x 66 x 56 mm
