• Pump rating: 230V AC, 16W, 1PH 50 Hz
• Water flow rate: 12L/h at zero head; Max. recommended head: 10m
• 3A volt-free alarm wires, N.C. contacts rated @ 5A inductive at 230V
• Max water temperature: 40°C; Class II appliance; Fully potted; Thermally protected
• Dimensions: 28mm (h) x 165mm (w) x 28mm (d), weight: 0.18 kg

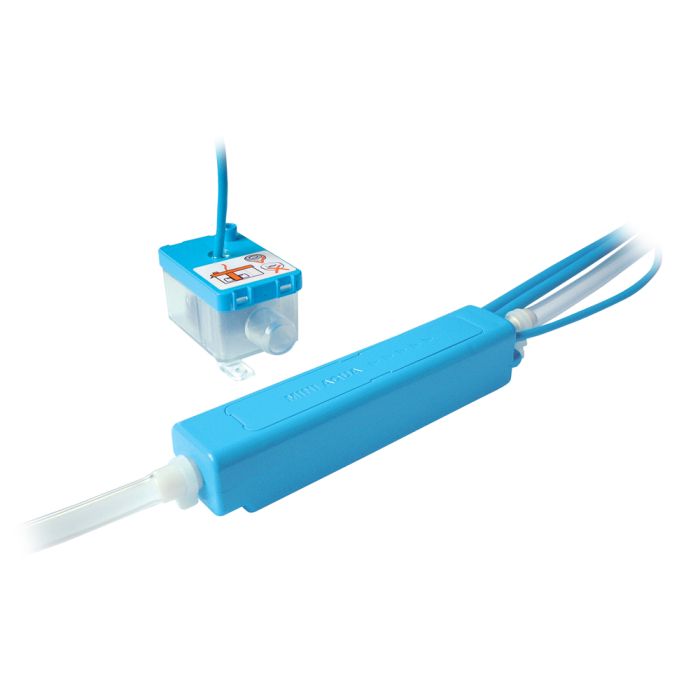

Aspen Mini Aqua Blue Slimline Condensate Air Con Pump FP2406

Using the proven functionality of our other mini condensate pumps the NEW Mini Aqua is also incredibly slim in size.

Measuring only 28mm in height and 28mm in depth, it provides great installation flexibility in even the smallest of evaporators.

The fully potted Aqua is designed to be installed either within the wall mounted evaporator or in the plastic conduit and will reliably pump condensation water from is reservoir up to a height of 8 metres.(Water flow rate: 14 l/h @ zero head).

The Mini Aqua has been designed to give the installation flexibility, where the latest generation of A/C units are becoming even smaller.

The Mini Aqua is designed to be installed, within wall mounted evaporators in plastic conduit. By connecting the drain hose to the reservoir and placing the pump drive unit within the evaporator or conduit, condensate water can be pumped to a height of 8 metres.

Using the proven functionality of our other mini pumps, the Mini Aqua is also incredibly slim in size. Measuring only 28mm in height and 28mm in depth, it is probably the smallest condensate pump in the world.
