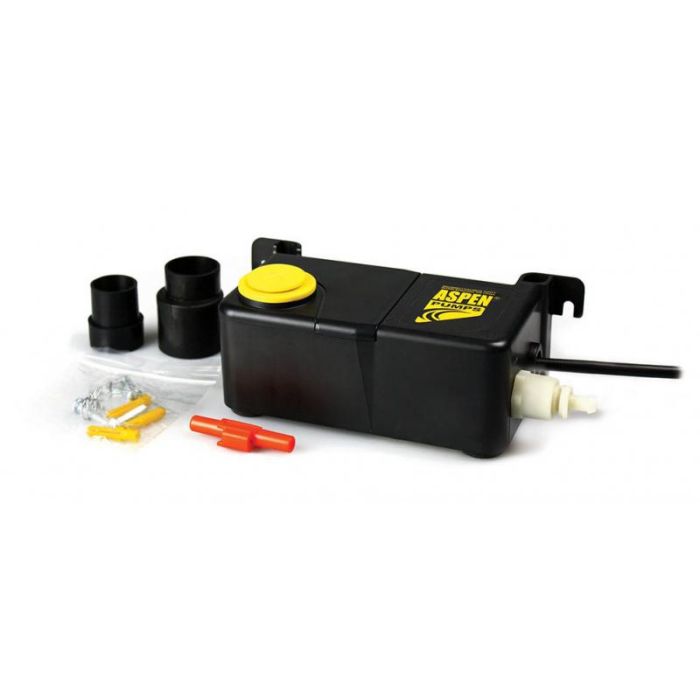

Aspen Mini 0.24L Tank Condensate Pump FP1056

£63.19 £52.66
SKU
FP1056/2
  • Tank capacity: 0.24L, 50L/hr max. discharge
  • Pump rating 0.15A, 230V AC, 16W, 1PH 50/60 Hz
  • Max water temp: 40°C, Max noise level: 35 dB(A) at 1m
  • Inlet seal fits most standard overflow pipe sizes, outlet size: 6mm
  • Dimensions: 70mm (h) x 180mm (w) x 90mm (d) Weight: 0.57kg
  • IMPORTANT: Not suitable for condenser boilers

Aspen Mini Tank Air Conditioning 0.24 Litre Capacity Condensate Tank Pump FP1056

The pump is designed to collect condensate water from air conditioning systems and discharge it up to a recommended maximum 10 metres head. The internal safety switch is a low current switch to stop the air conditioning system in the event of pump failure. The pumps operate from an internal float switch.

The new and improved Aspen Mini Tank pump FP1056/2 can be wall mounted, floor mounted, in-pan or suspended on M8/M10 rod. These pumps use piston technology. This pump is a compact, robust and multifunctional mini tank pump.

  • Four ways to install Compact & discreet
  • Can be located in the drain pan
  • Easy maintenance
  • Up to 46kW / 157,000Btu/h Ducted units;
  • Floor standing & chassis units;
  • Cassette units

Technical Specifications:

  • Tank capacity: 0.24L
  • High-level safety cut-out
  • Wall, floor and in pan use
  • Connecting cable: 1m
  • Inlet seal fits most standard overflow pipe sizes
  • Outlet size: 6mm.
  • Maximum water temperature: 40C
  • Maximum noise level: 35 dB(A) at 1m
  • The pump has a pre-wired safety switch
  • Pump rating 0.15A, 230V AC, 16W
  • Safety switch: 3A maximum 230V AC 16W, 1PH 50/60 Hz, 3A alarm wires, normally closed
  • Double insulated Dimensions: 70mm (h) x 180mm (w) x 90mm (d)
  • Weight: 0.57kg
More Information
Product Name Aspen Mini 0.24L Tank Condensate Pump FP1056
SKU FP1056/2
mpn FP1056/2
Description

Aspen Mini Tank Air Conditioning 0.24 Litre Capacity Condensate Tank Pump FP1056

The pump is designed to collect condensate water from air conditioning systems and discharge it up to a recommended maximum 10 metres head. The internal safety switch is a low current switch to stop the air conditioning system in the event of pump failure. The pumps operate from an internal float switch.

The new and improved Aspen Mini Tank pump FP1056/2 can be wall mounted, floor mounted, in-pan or suspended on M8/M10 rod. These pumps use piston technology. This pump is a compact, robust and multifunctional mini tank pump.

  • Four ways to install Compact & discreet
  • Can be located in the drain pan
  • Easy maintenance
  • Up to 46kW / 157,000Btu/h Ducted units;
  • Floor standing & chassis units;
  • Cassette units

Technical Specifications:

  • Tank capacity: 0.24L
  • High-level safety cut-out
  • Wall, floor and in pan use
  • Connecting cable: 1m
  • Inlet seal fits most standard overflow pipe sizes
  • Outlet size: 6mm.
  • Maximum water temperature: 40C
  • Maximum noise level: 35 dB(A) at 1m
  • The pump has a pre-wired safety switch
  • Pump rating 0.15A, 230V AC, 16W
  • Safety switch: 3A maximum 230V AC 16W, 1PH 50/60 Hz, 3A alarm wires, normally closed
  • Double insulated Dimensions: 70mm (h) x 180mm (w) x 90mm (d)
  • Weight: 0.57kg
Short Description
  • Tank capacity: 0.24L, 50L/hr max. discharge
  • Pump rating 0.15A, 230V AC, 16W, 1PH 50/60 Hz
  • Max water temp: 40°C, Max noise level: 35 dB(A) at 1m
  • Inlet seal fits most standard overflow pipe sizes, outlet size: 6mm
  • Dimensions: 70mm (h) x 180mm (w) x 90mm (d) Weight: 0.57kg
  • IMPORTANT: Not suitable for condenser boilers
